D. Connecting the Microphone Array

D. Connecting the microphone array

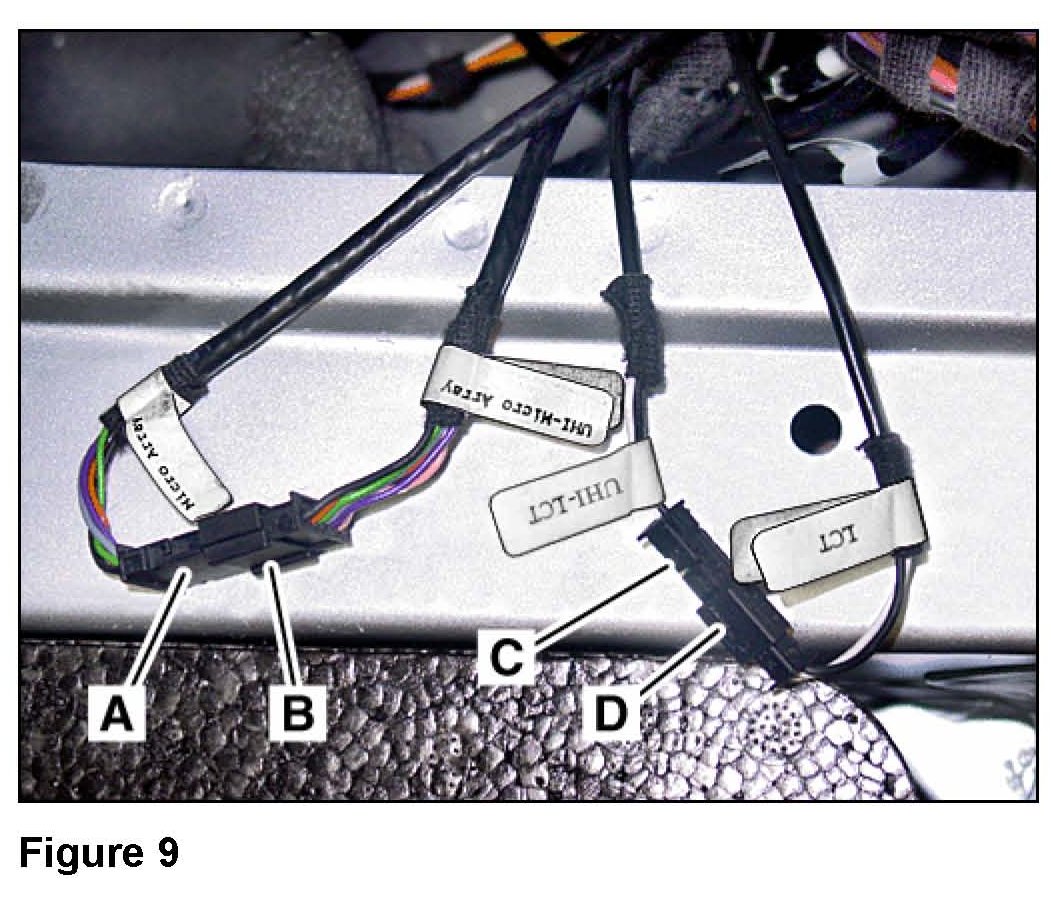

1. In the exposed right side well of the trunk, find the four labeled microphone array connectors (Figure 9).

Note:
Figure 9 shows the microphone array connectors already connected.

2. Connect the 6-pin female connector labeled "Micro Array" (A, Figure 9) to the 6-pin male connector labeled "UHI-Micro Array" (B, Figure 9).

3. Connect the 2-pin female connector labeled "UHI-LCT" (C, Figure 9) to the 2-pin male connector labeled "LCT" (D, Figure 9).
