Starter Motor: Service and Repair
AR15.30-P-7100SZ Remove/install starter

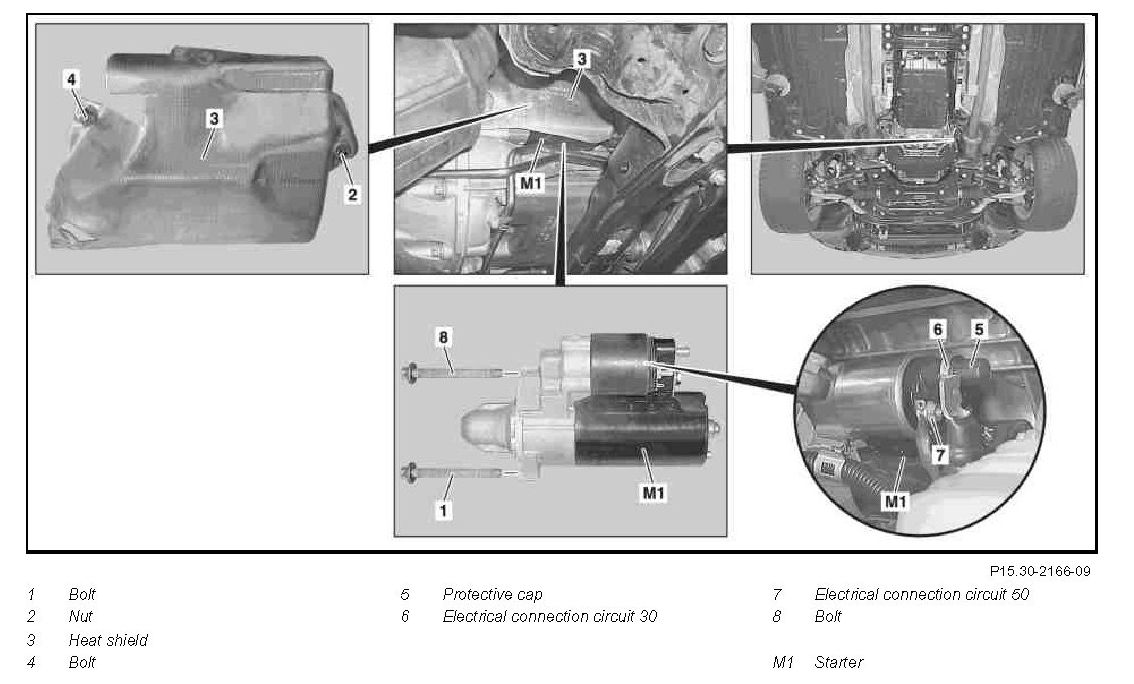

Component Identification:

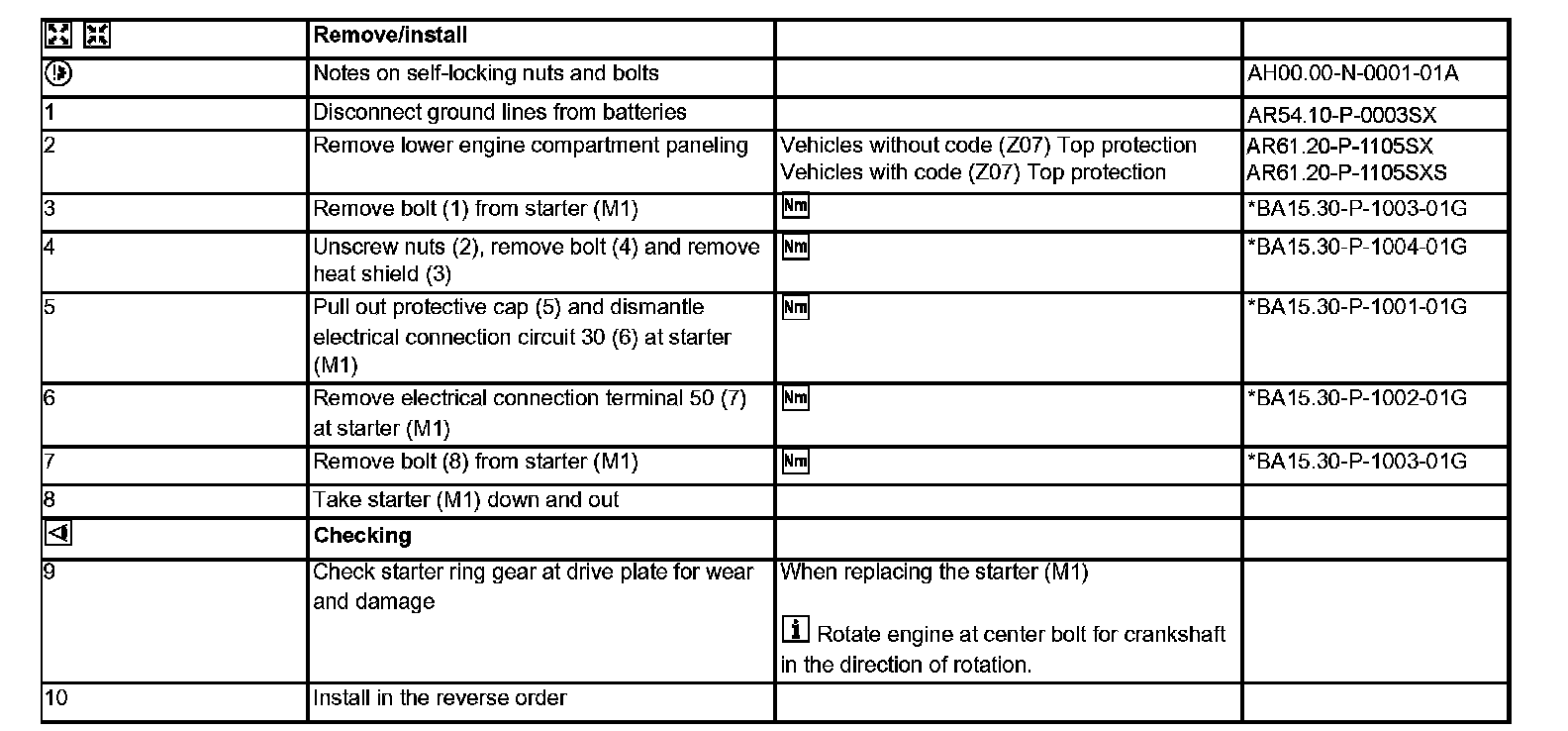

Remove/install Steps 1-10:

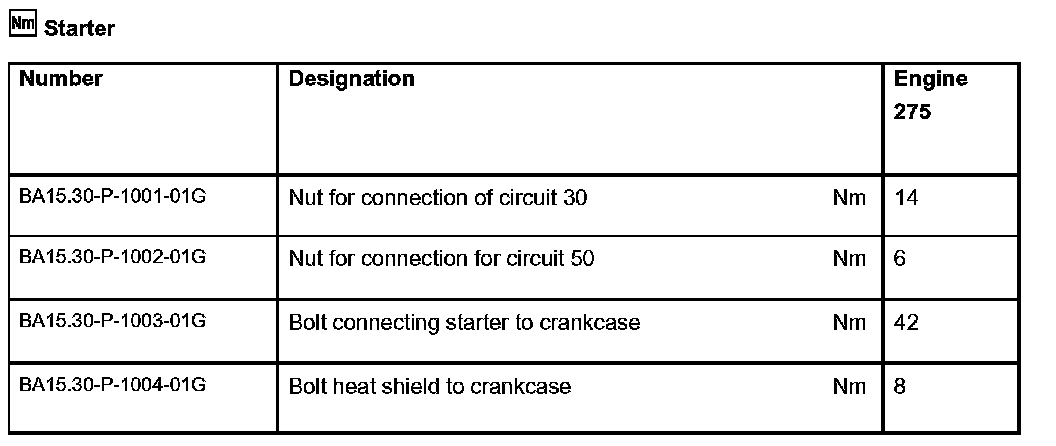

Starter:
