Engine Oil Level Indicator

Engine oil level indicator

Note: The vehicle must be horizontal for at least 5 minutes with the engine switched off at operating temperature. Otherwise measurement accuracy can be compromised.







1. Switch on ignition

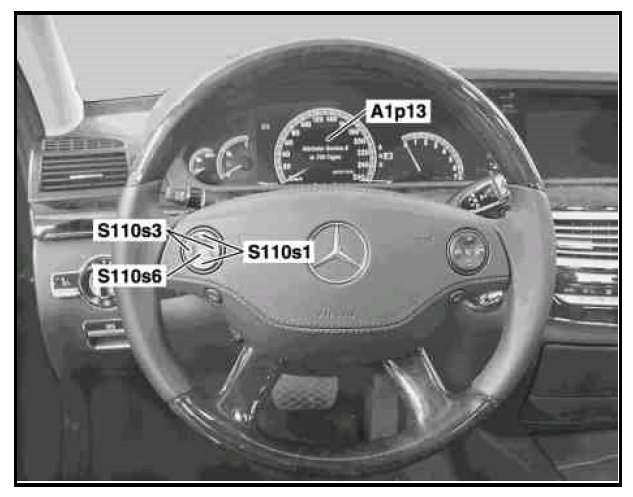

2. Press the system selection button (S110s3) repeatedly until the "Service" menu appears in bold in the multifunction display (A1p13).

3. Press the scroll back and forward button (S110s1) repeatedly and select "engine oil level".

4. Press OK button (S110s6). The note "engine oil level, measurement in progress, correct measurement only if the vehicle is level" appears in the multifuntion display (A1p13).

5. The measurement result is shown in the multifuntion display (A1p13).

6. Correct the engine oil level if necessary and check engine oil level again.

7. Switch off ignition.
