Mercedes Benz
>>
2007
>>
CL 600 (216.376) V12-5.5L Turbo (275.953)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Cabin Air Filter / Purifier
>>
Service and Repair
>>
AR83.00-P-1000SX Remove/Install Combination Filter
AR83.00-P-1000SX Remove/Install Combination Filter
AR83.00-P-1000SX Remove/Install Combination Filter

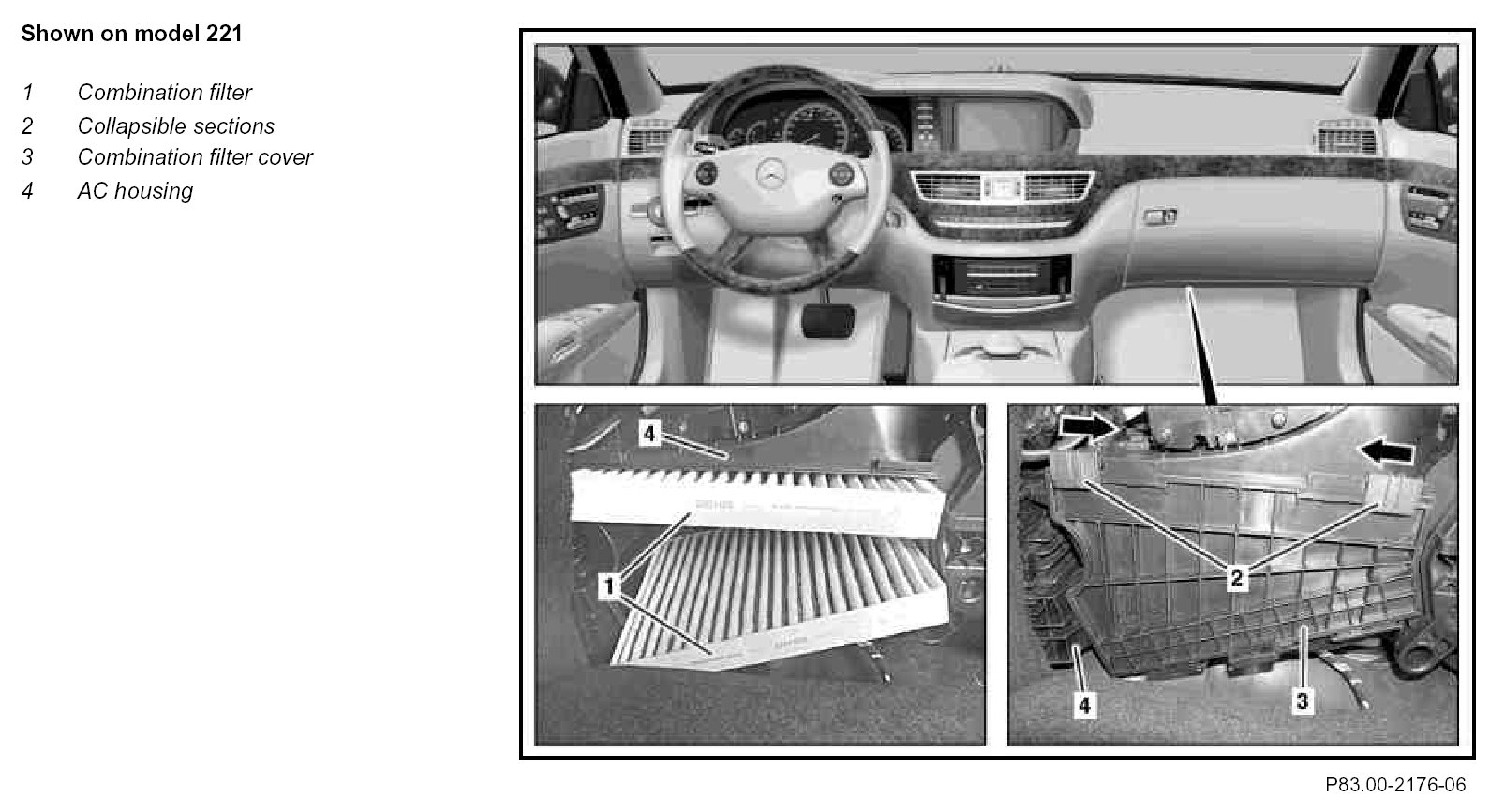

Component Identification:

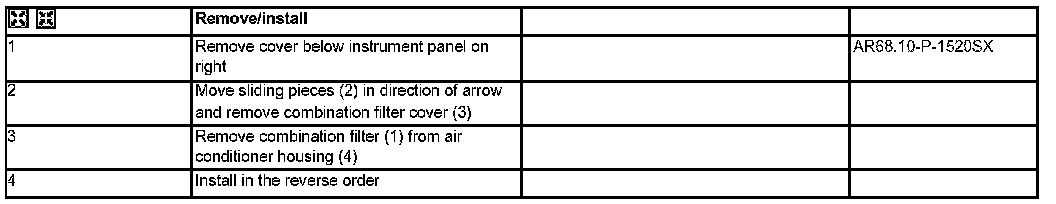

Steps 1 - 4:
