Seat Back Frame: Service and Repair
AR91.10-P-3331SC Remove/install Front Seat Backrest
Frame

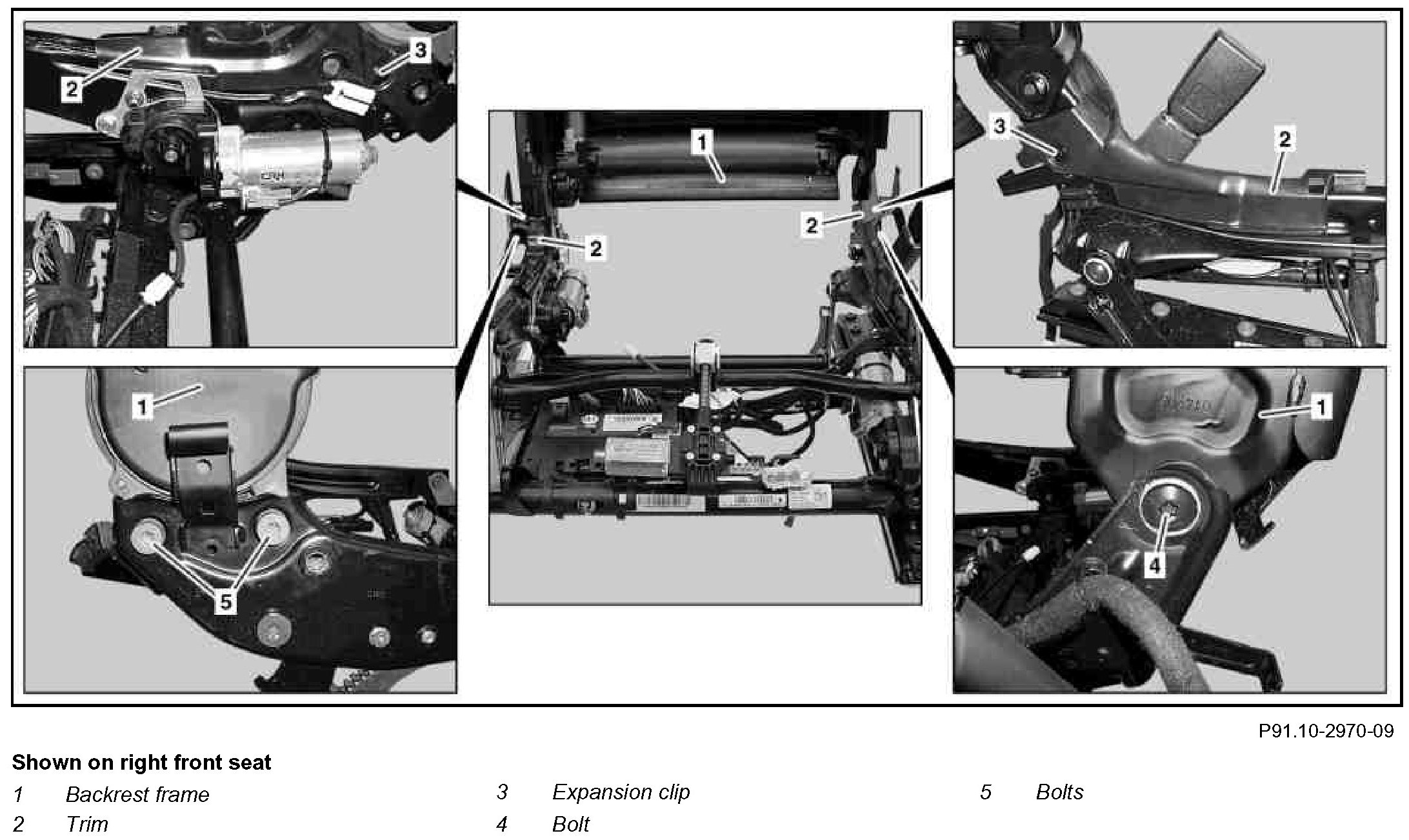

Component Identification:

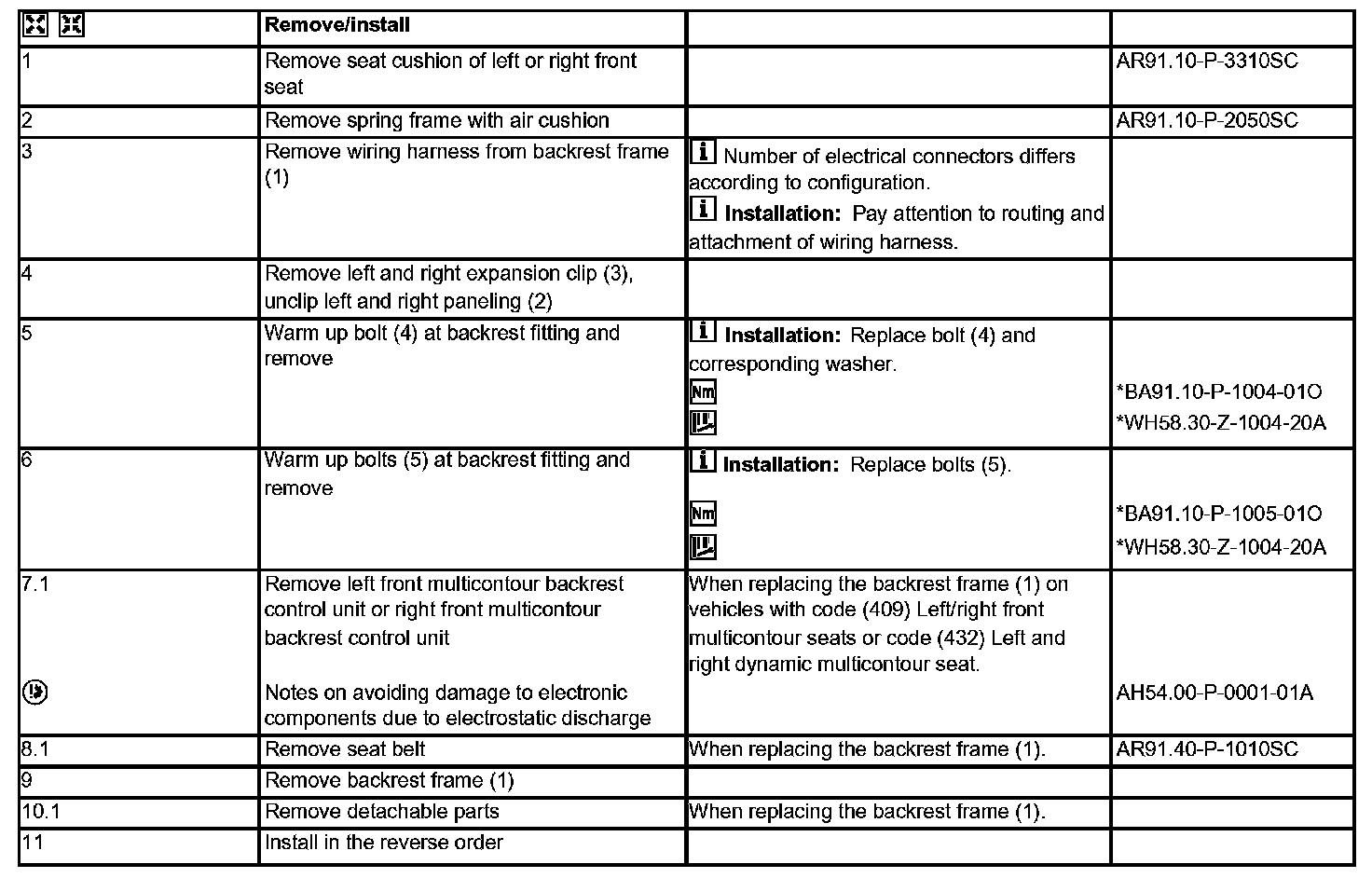

Steps 1-11:

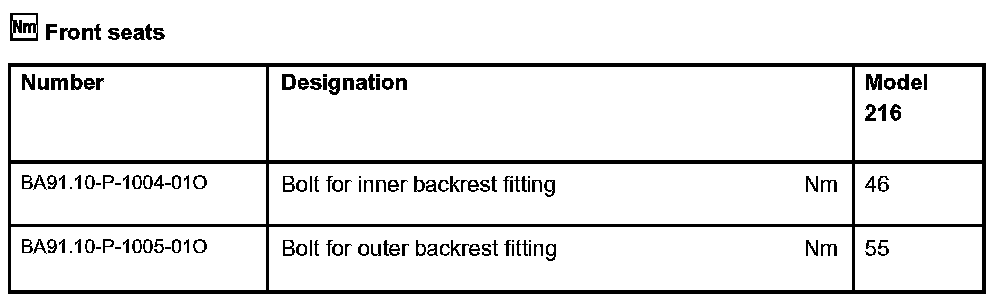

Front Seats:

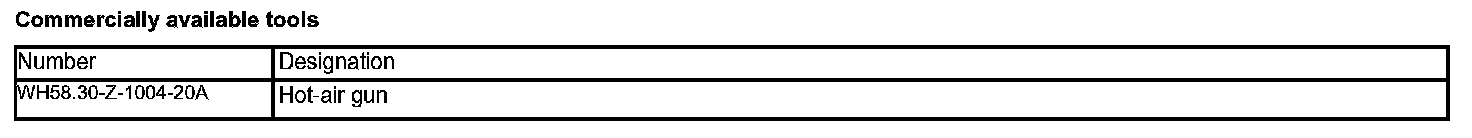

Commercially Available Tools:
