PE27.19-U-2101CAB Wiring Diagram Electronic Transmission Control (ETC) Control Module

Wiring Diagram Electronic Transmission Control (ETC) Control Module PE27.19-U-2101CAB
- TRANSMISSION 722.9
- control module Y3/8
- as of 1.6.07 in model 216.377

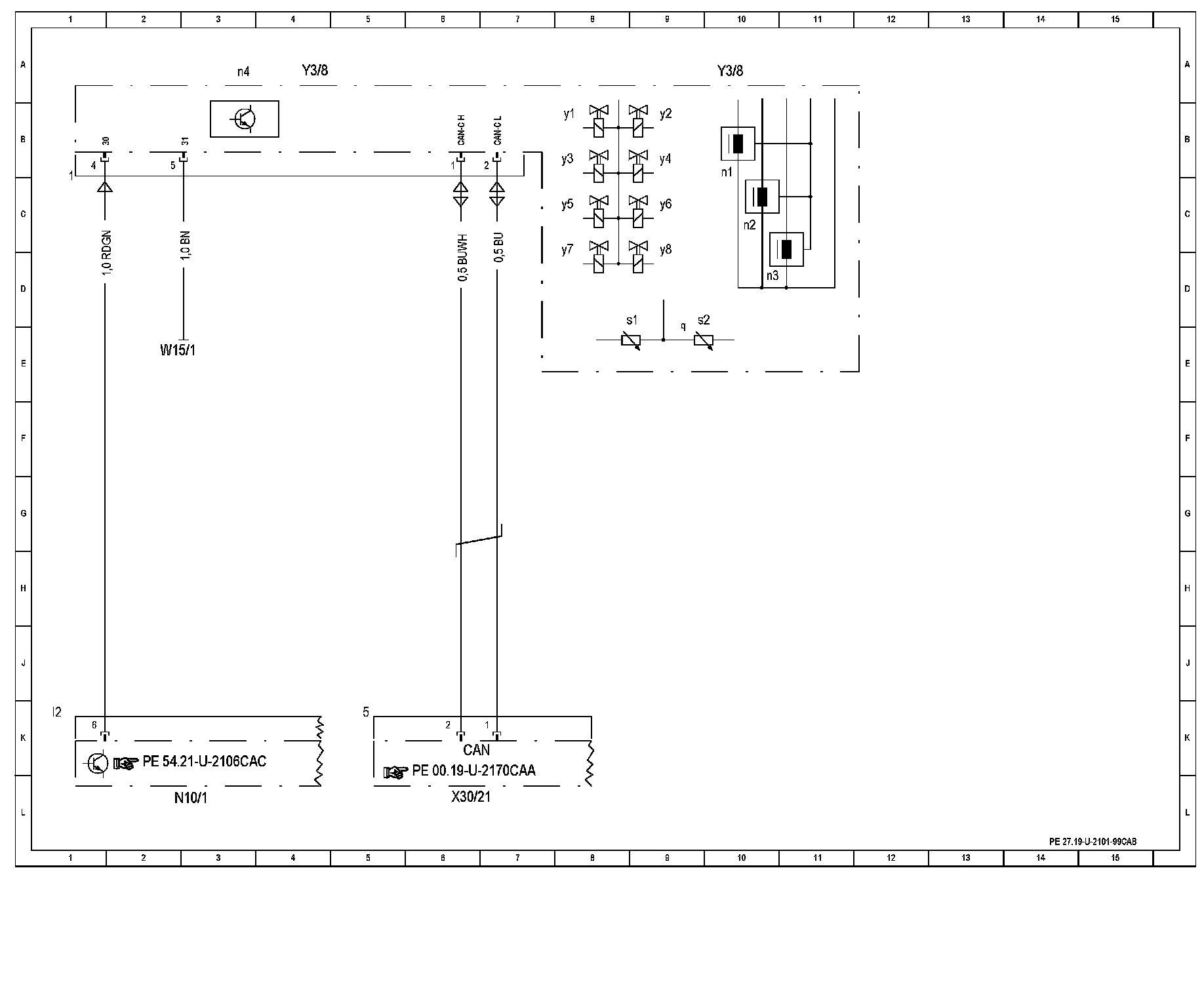

Wiring Diagram:

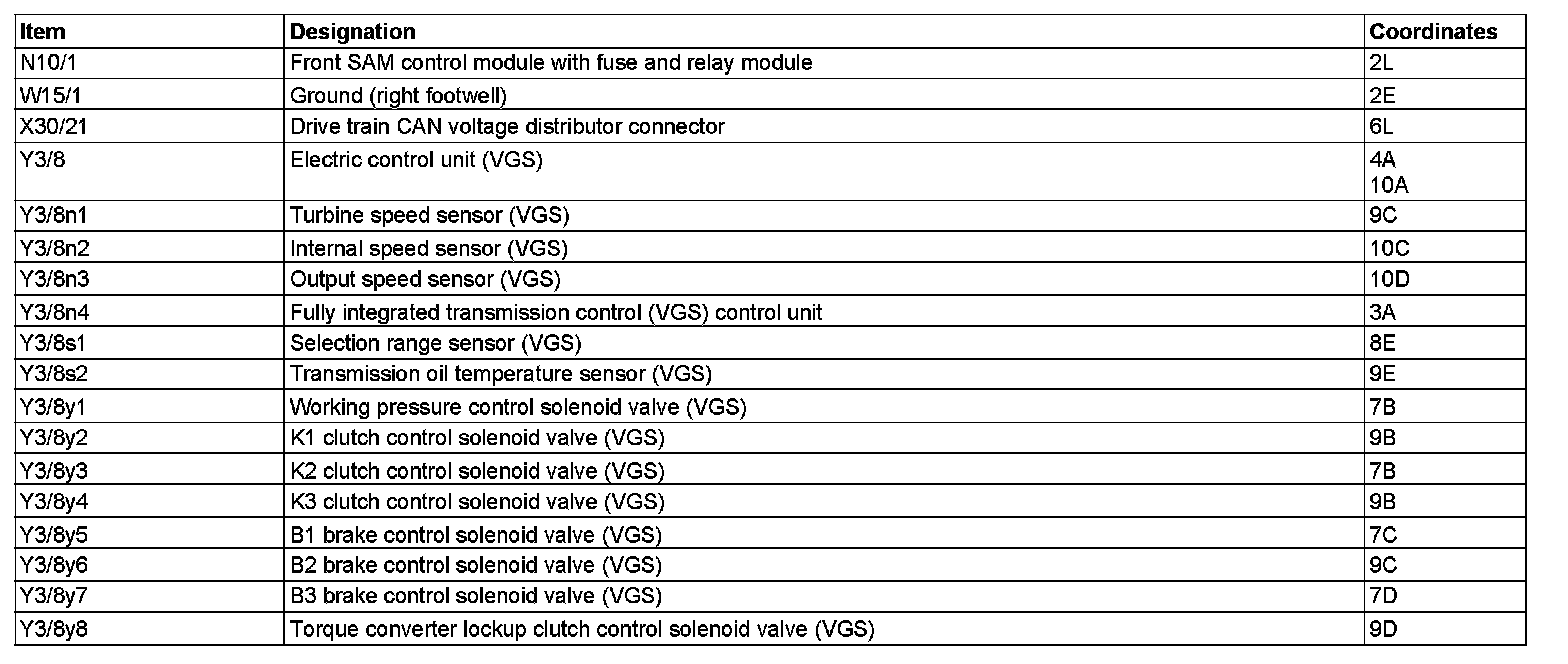

Component Description/Coordinates, N10/1 To Y3/8y8:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
