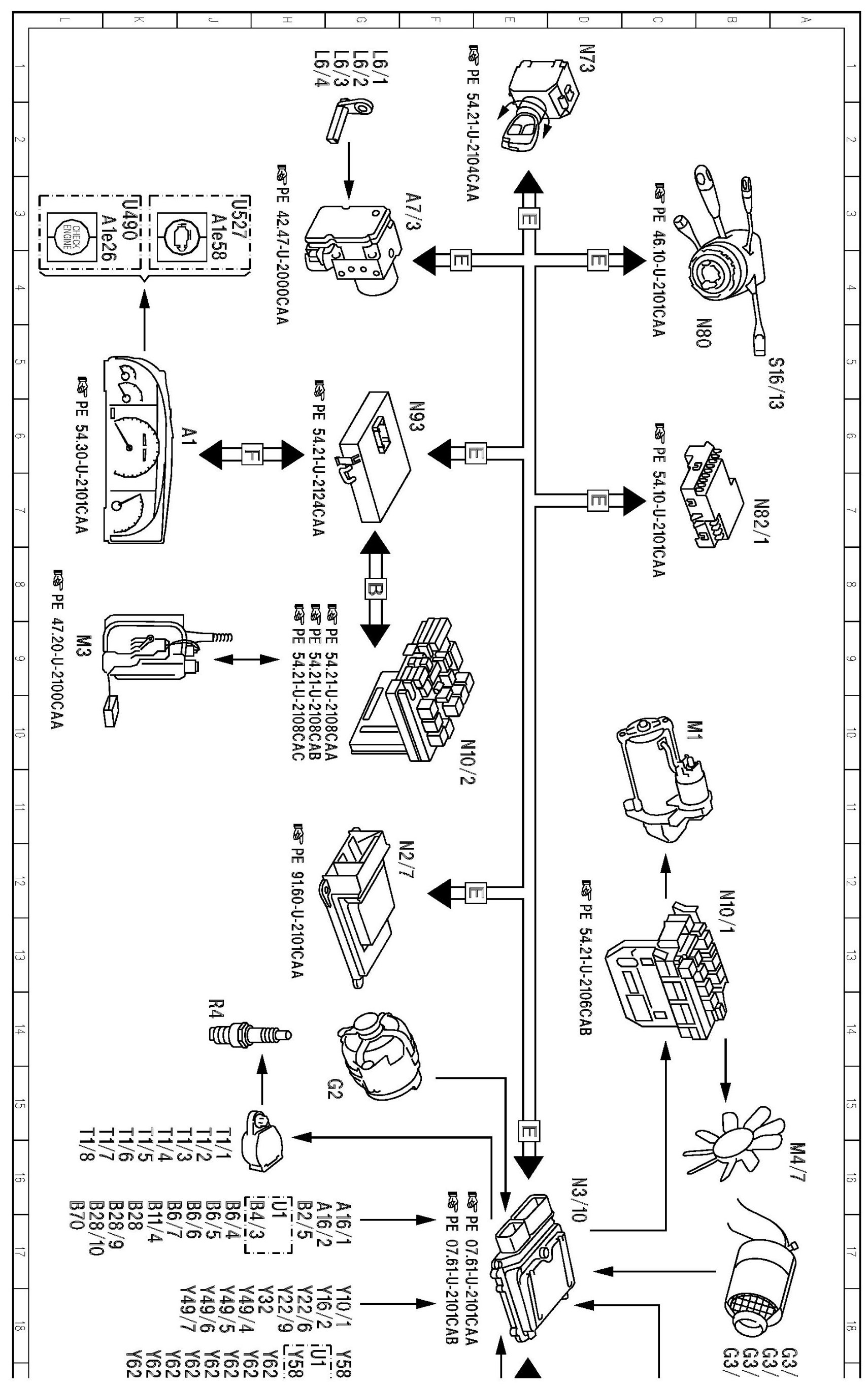

PE07.61-U-2050CAA Function Diagram of Electrical System For Me Engine Control

PE07.61-U-2050CAA Function Diagram of Electrical System For ME Engine Control

ENGINE 273.961 in MODEL 216.371
- up to Model Year 2008 ME 9.7VC8































































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
