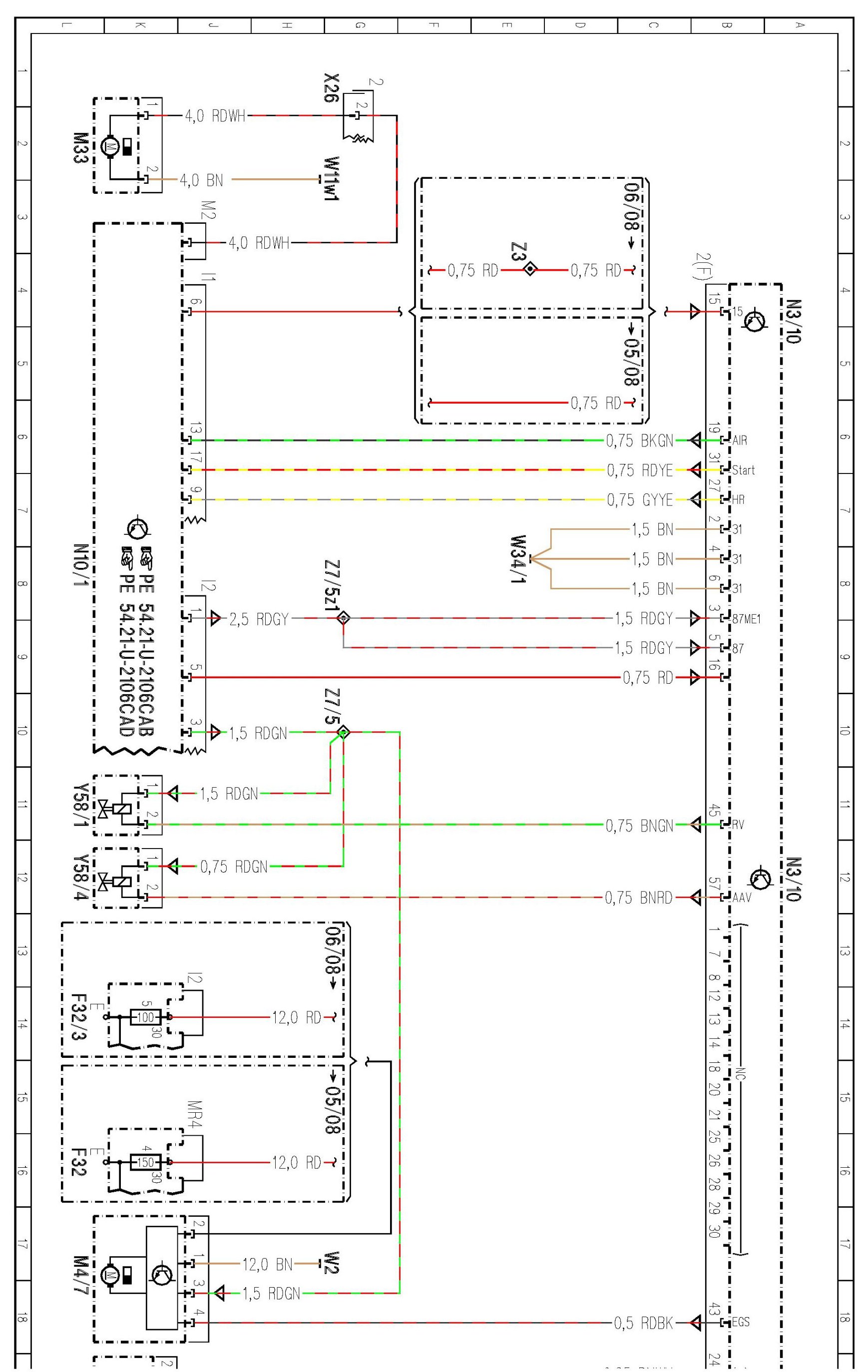

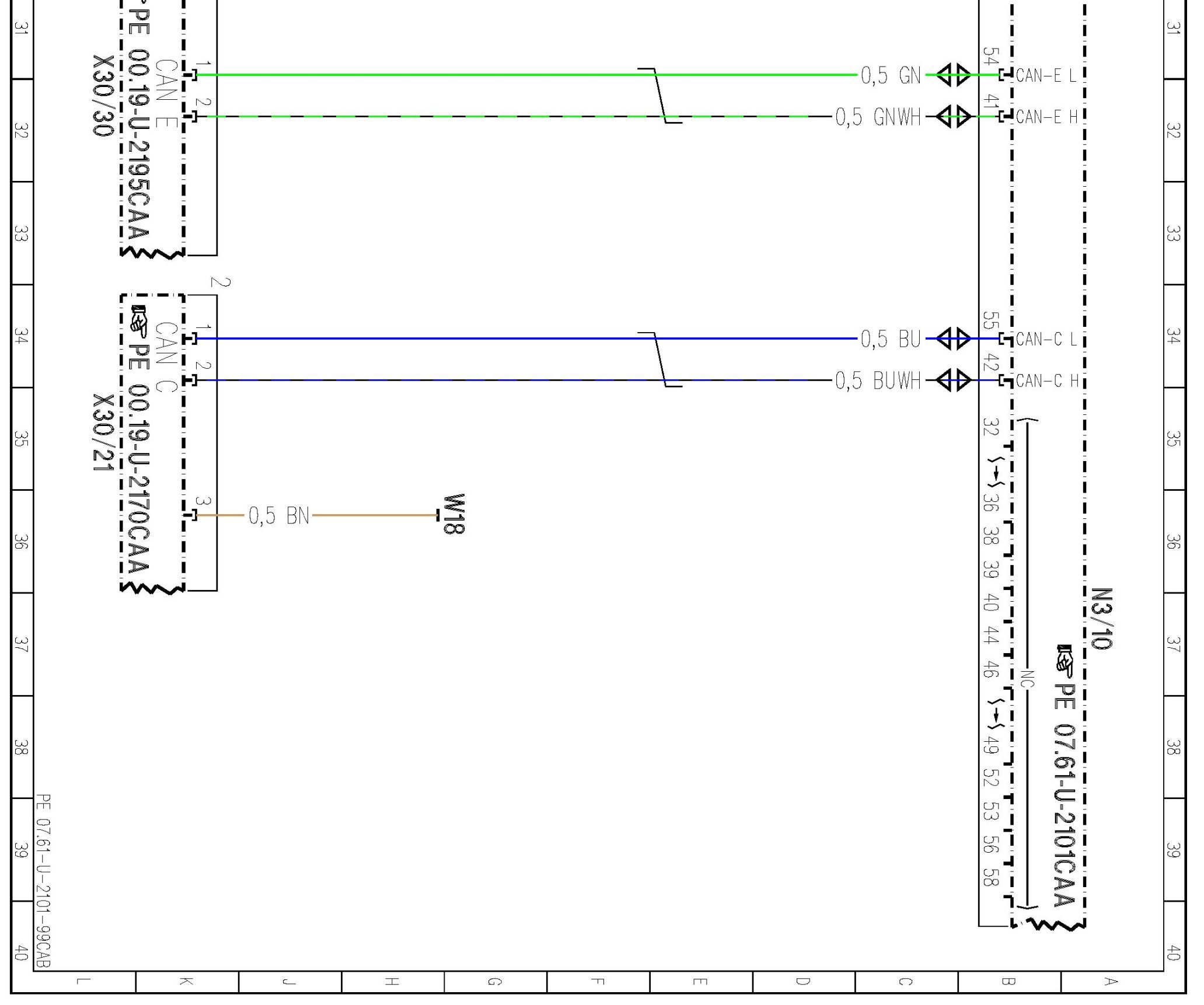

PE07.61-U-2101CAB ME-SFI Fuel Injection and Ignition System Control Module

PE07.61-U-2101CAB ME-SFI Fuel Injection and Ignition System Control Module

ENGINE 273.961 in MODEL 216.371 ME 9.7VC8,

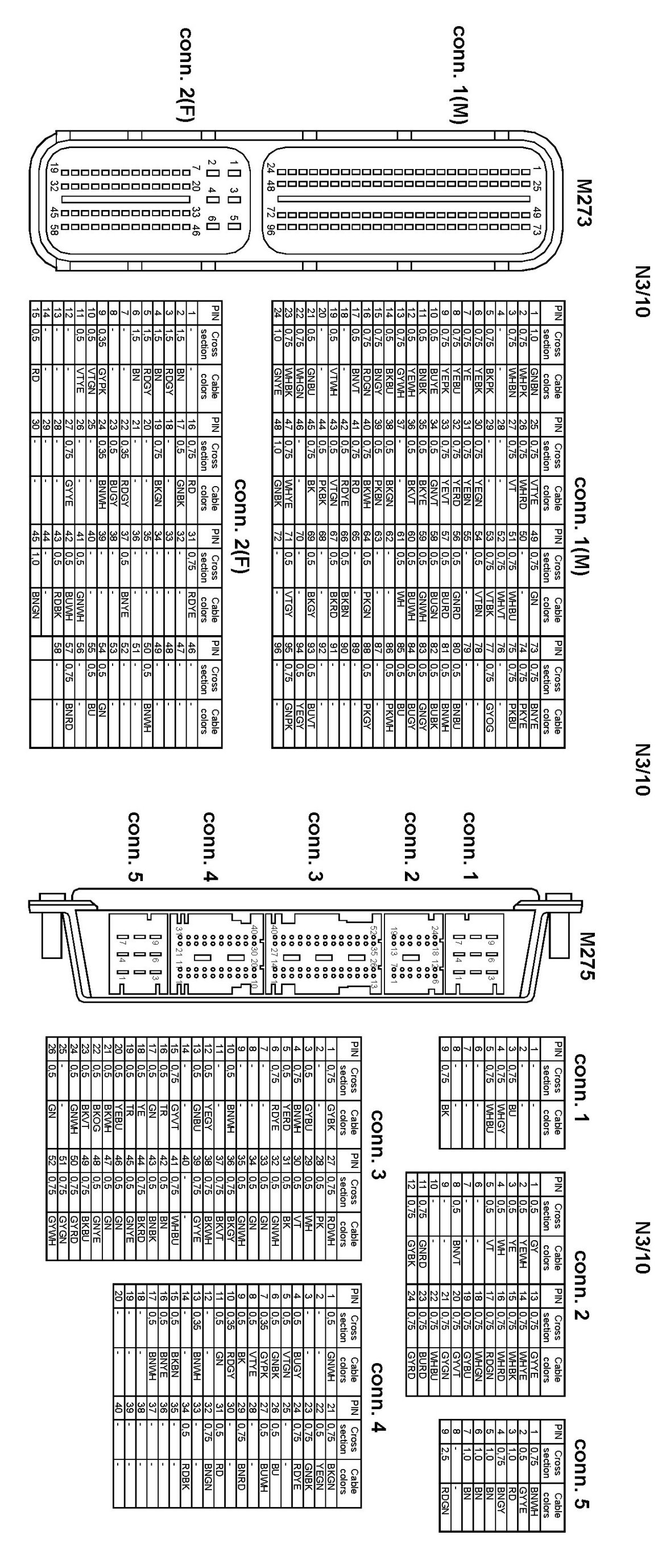

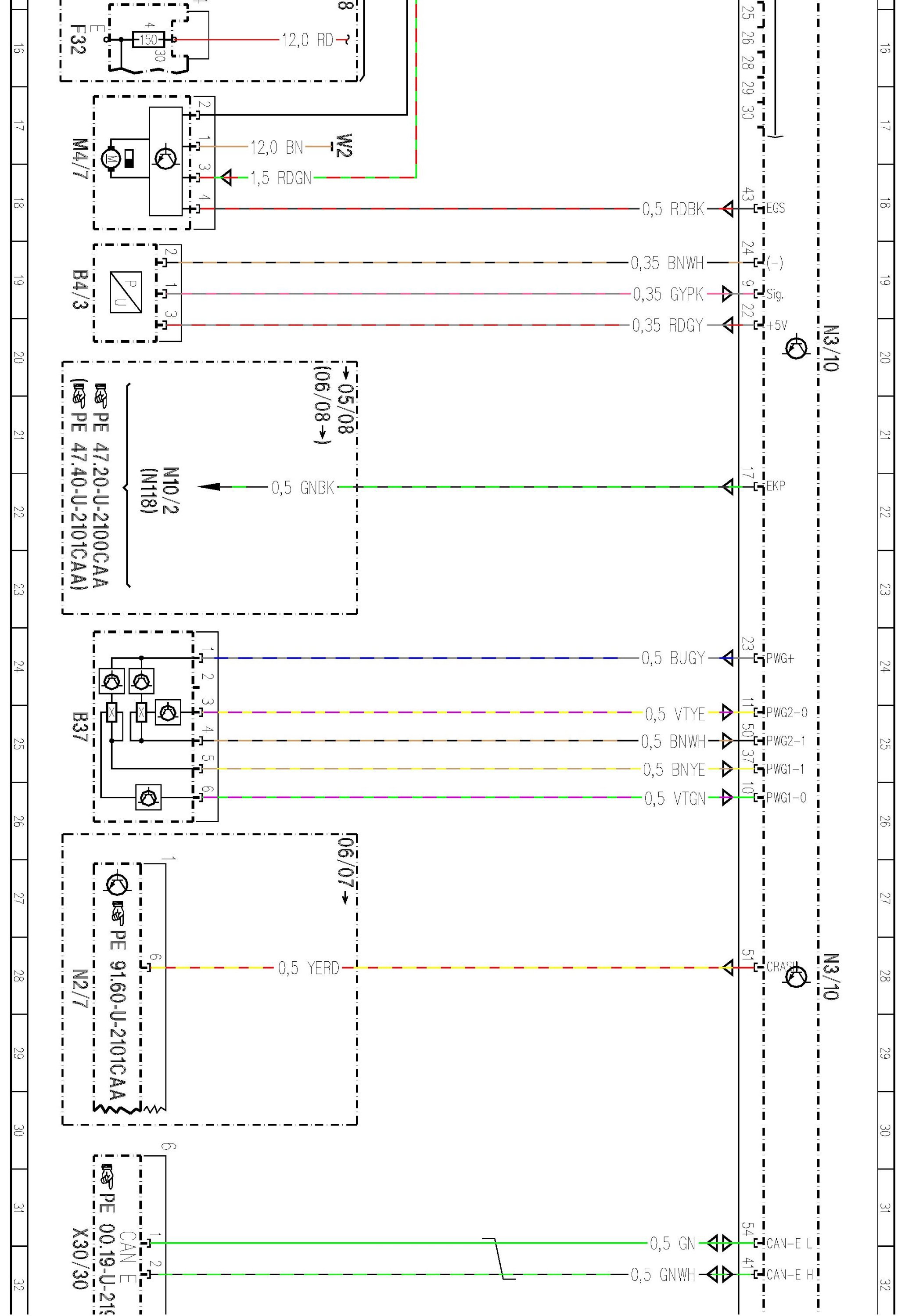

- Control unit N3/10, vehicle side











































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
