Function Diagrams

Function Diagram Of Electrical System Of Tire Pressure Monitor PE40.15-U-2050CAA
- with CODE (470) Tire pressure monitor (base)
- with CODE (475) Tire pressure monitor (Beru)

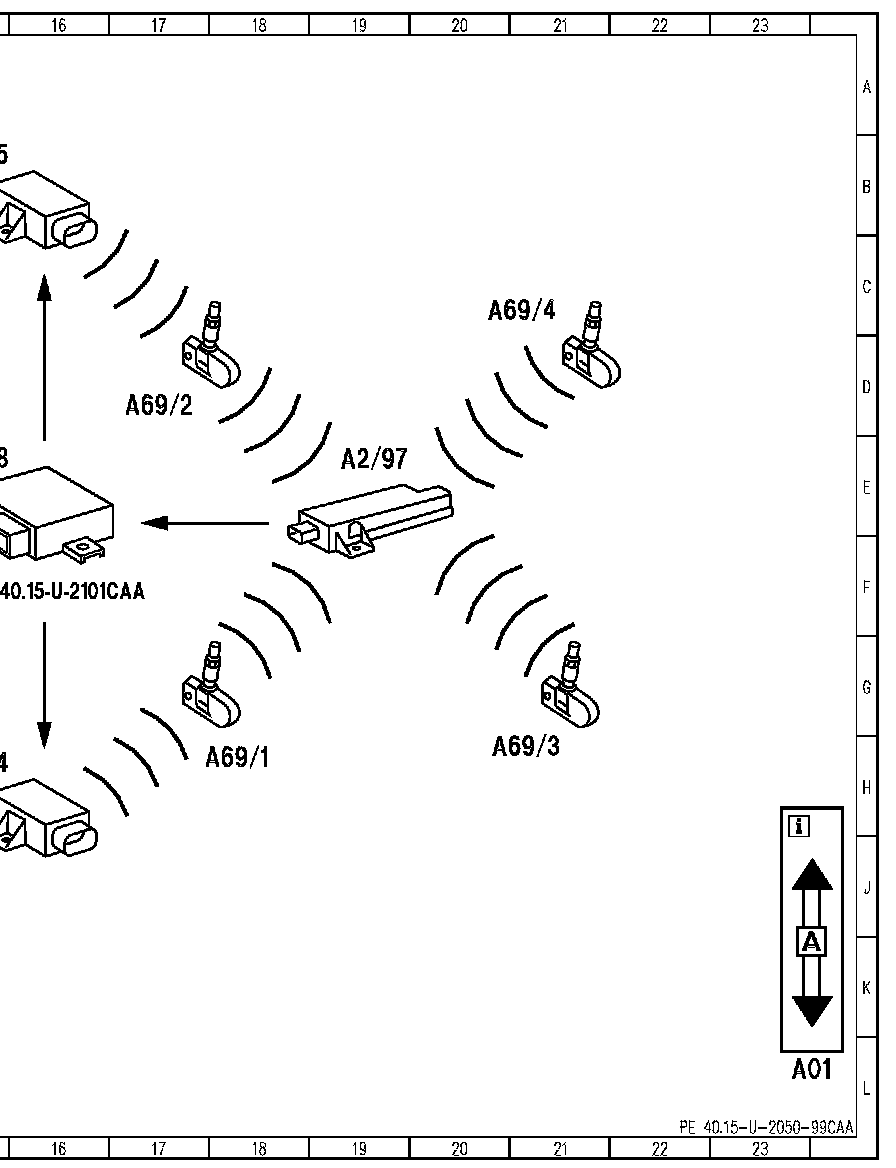

Function Diagram (Part 1):

Function Diagram (Part 2):

Component Description/Coordinates, A1 To U779:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
