Electrical Function Schematic For Central Locking (CL [ZV]) PE80.20-P-2050CAB



Electrical Function Schematic For Central Locking (CL [ZV]) PE80.20-P-2050CAB
- Selective CL opening
- up to model year 08


Function Diagram:

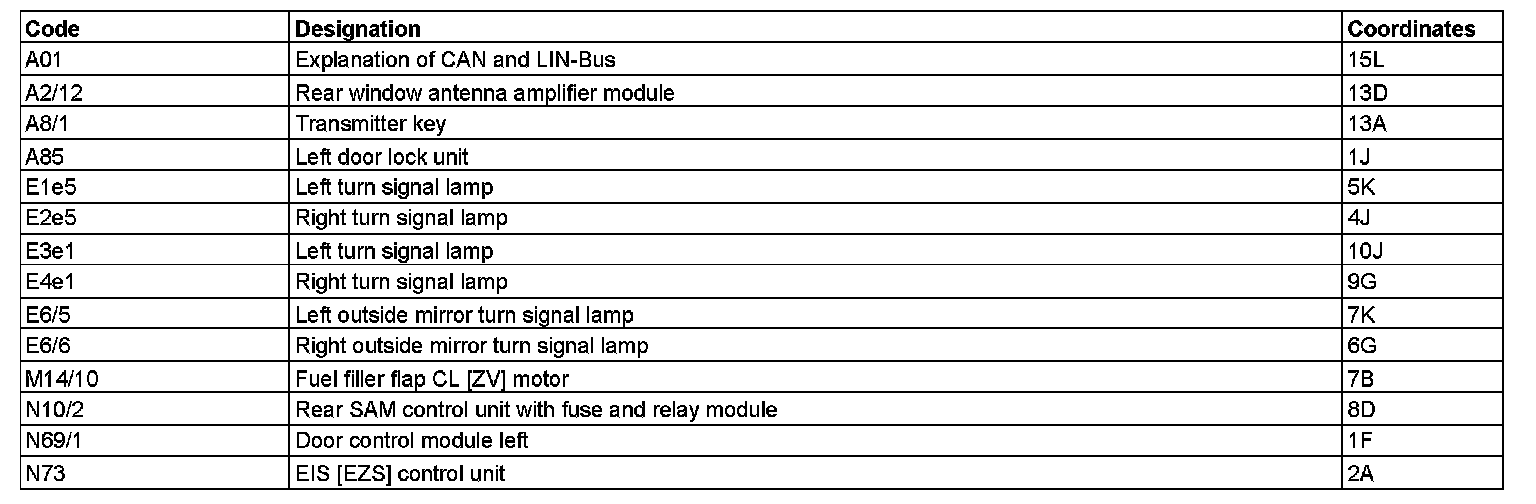

Component Description/Coordinates, A01 To N73:






Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
