Starter Motor: Service and Repair
AR15.30-P-7100QB Remove/install starter

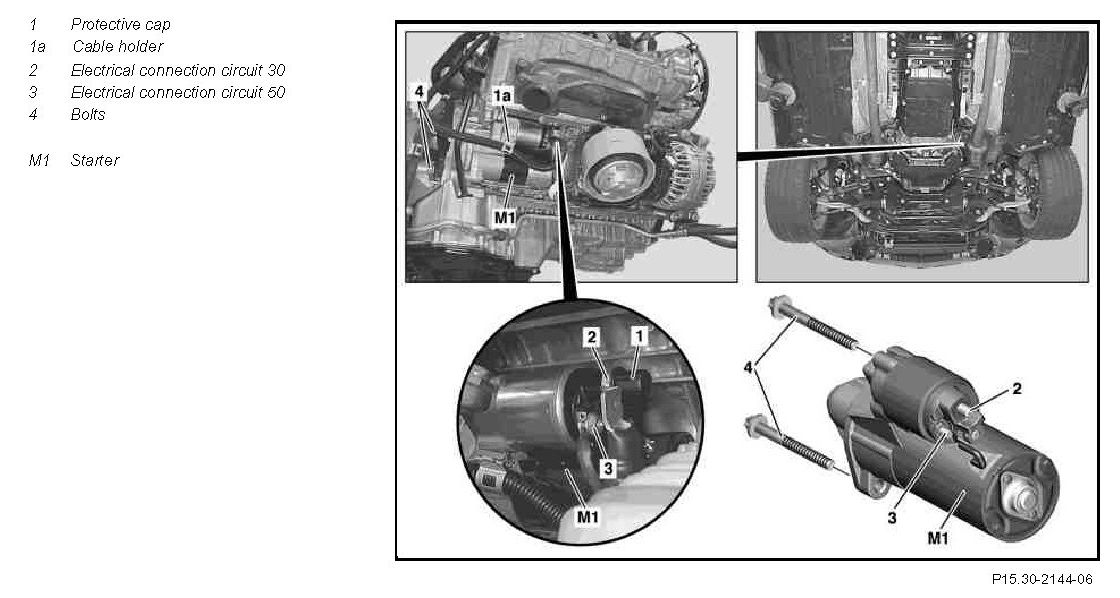

Component Identification:

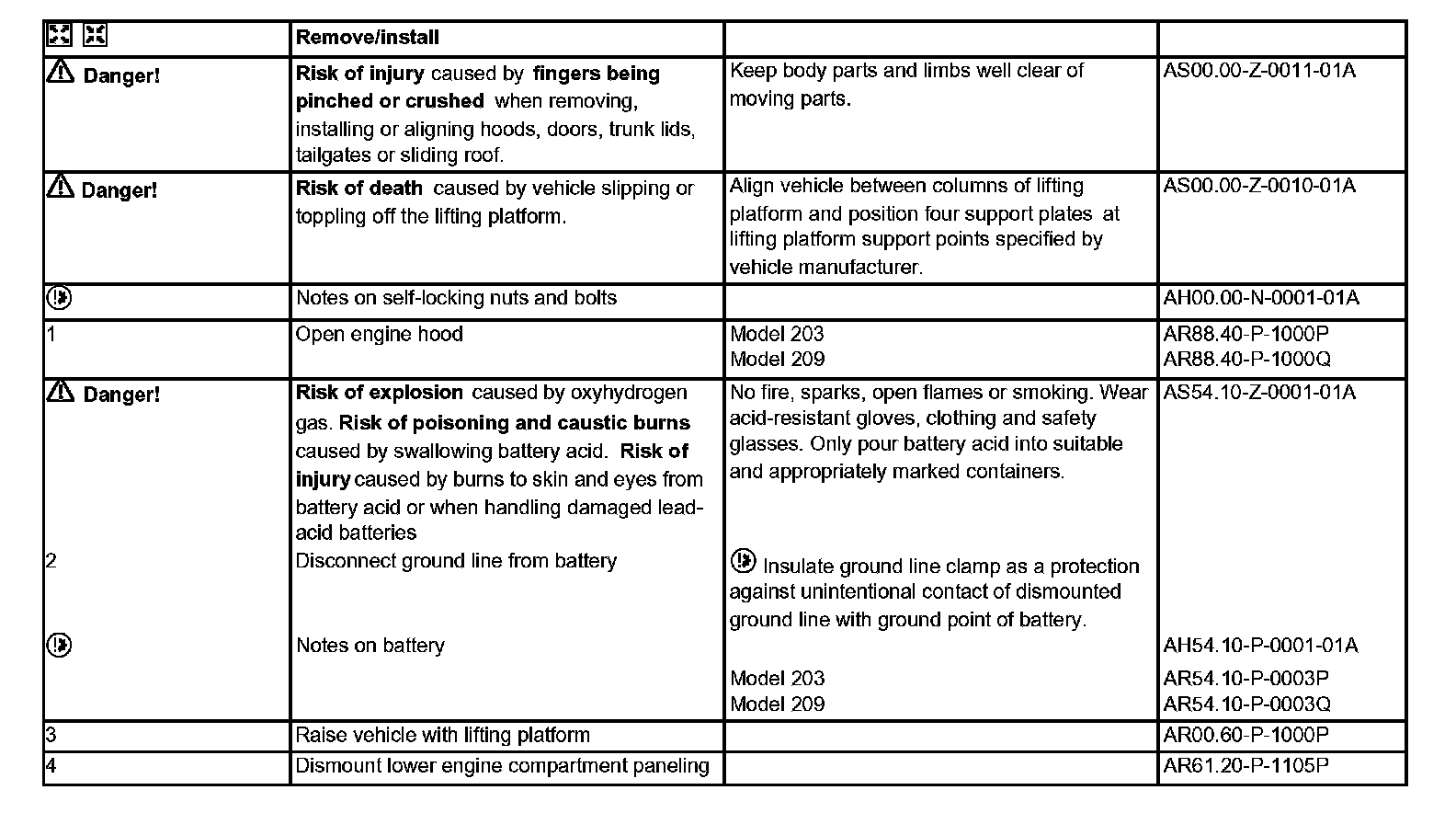

Remove/install Steps 1-4:

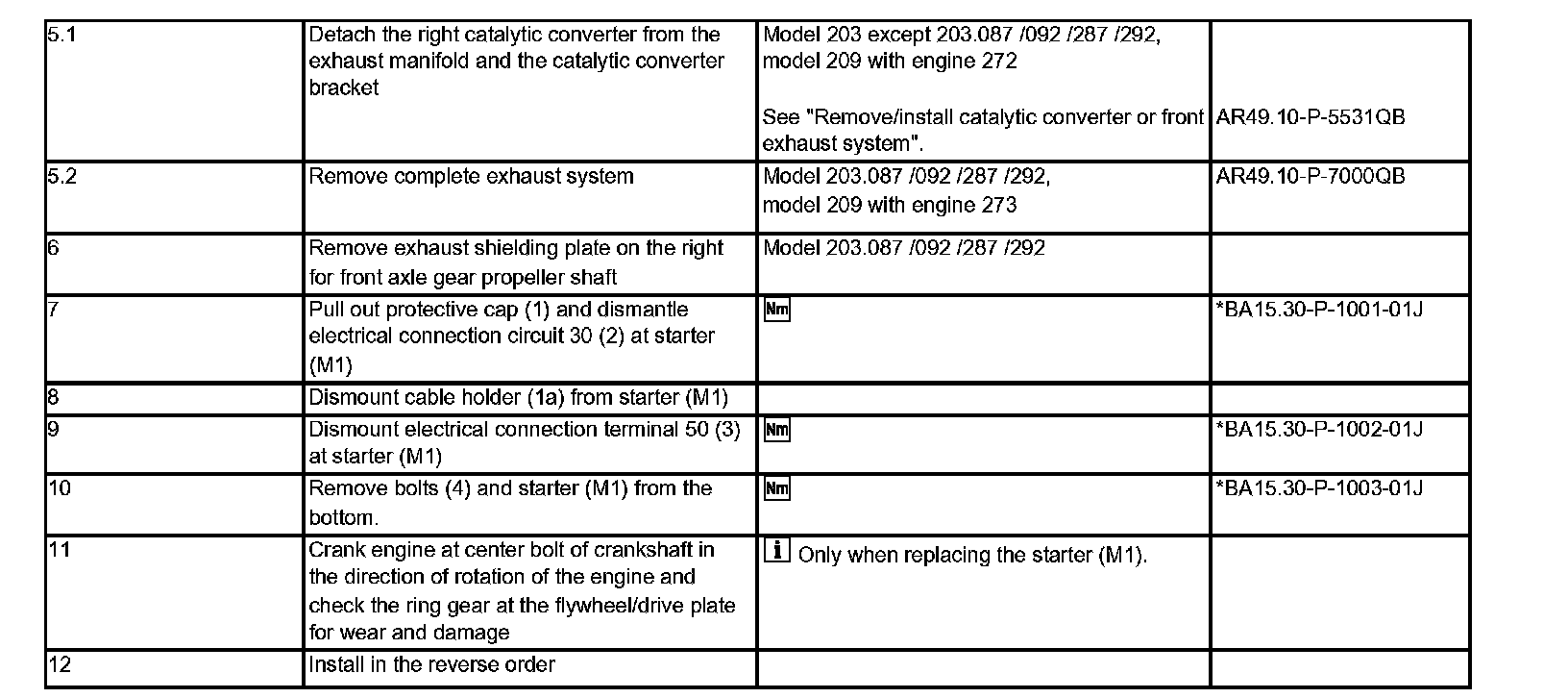

Remove/install Steps 5.1-12:

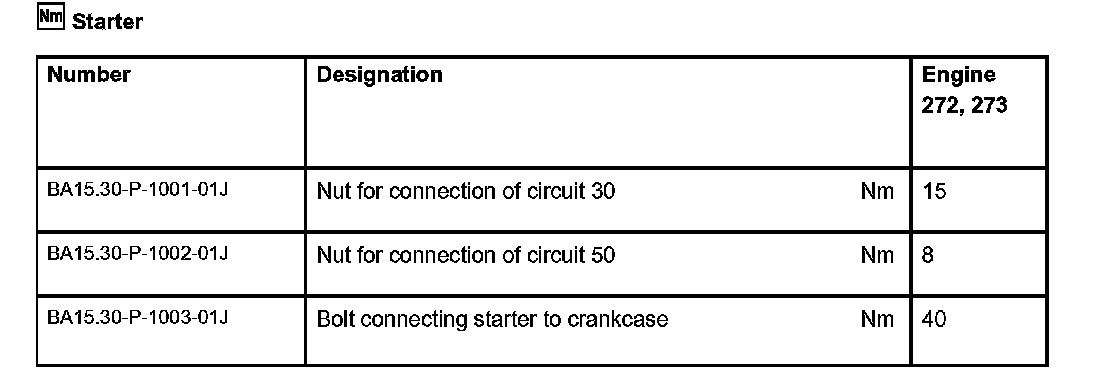

Starter:
