AR22.10-P-1160PW Remove/Install Rear Engine Mount



AR22.10-P-1160PW Remove/install rear engine mount

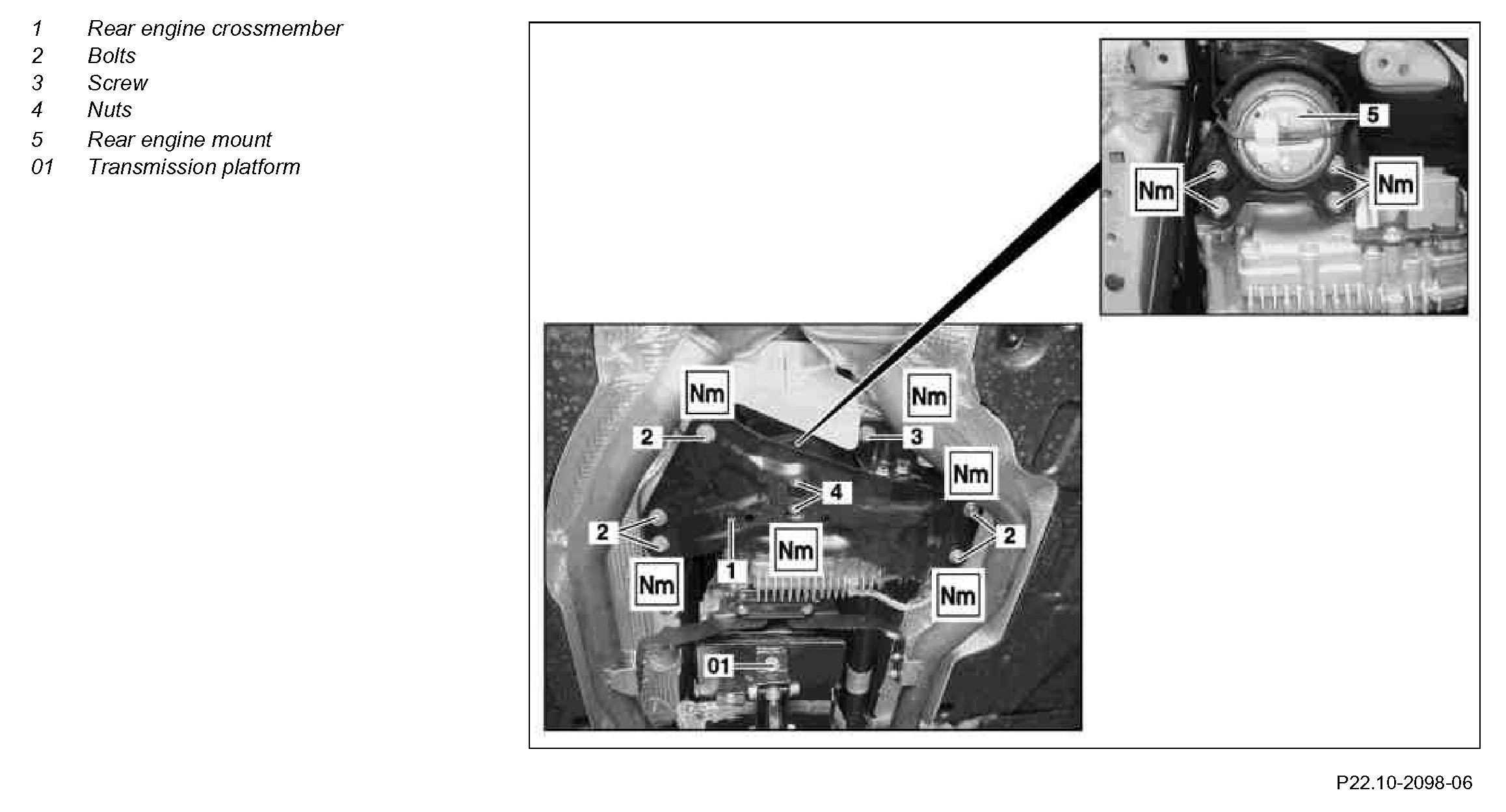

Component Identification:

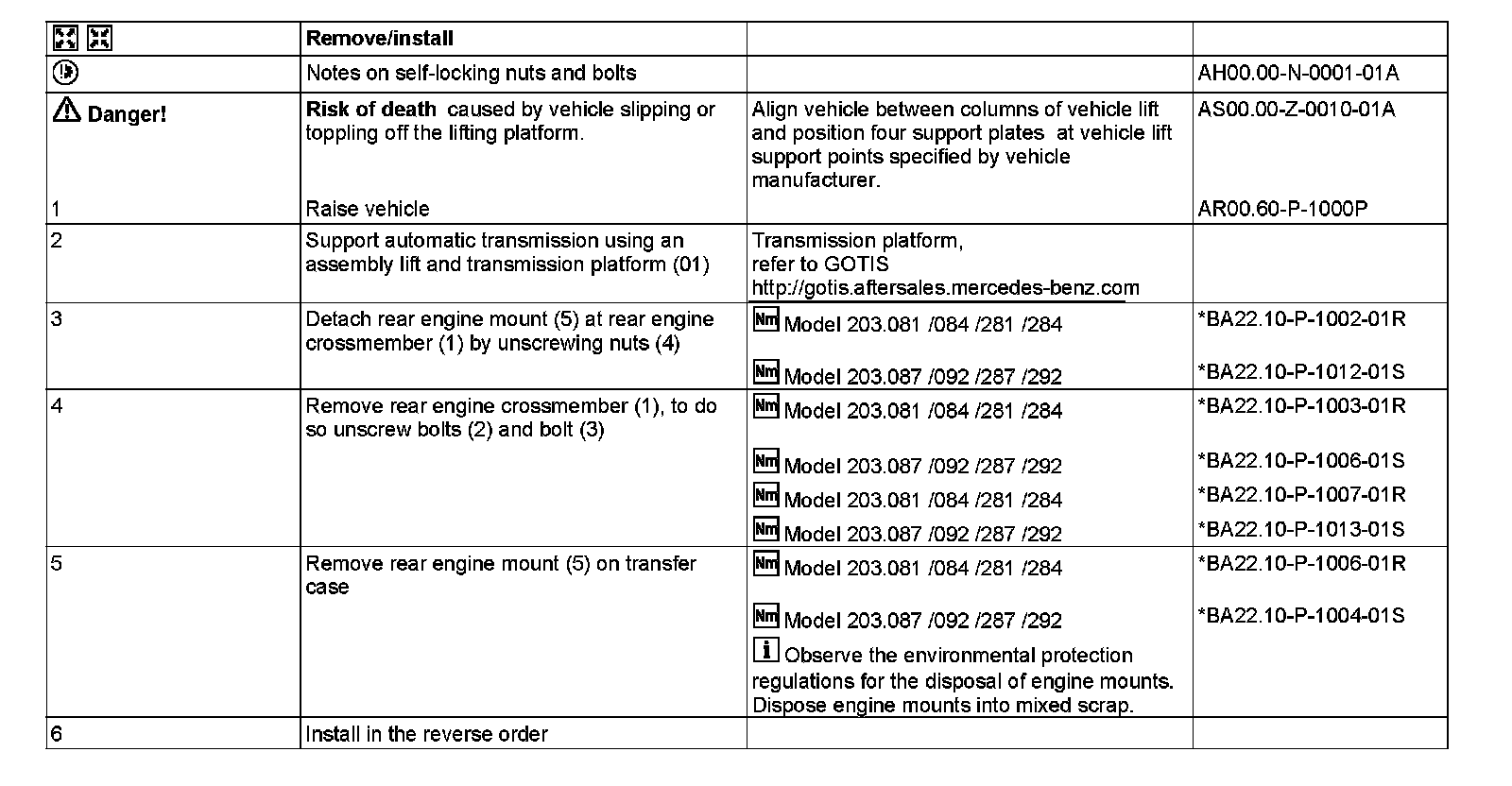

Steps 1-6:

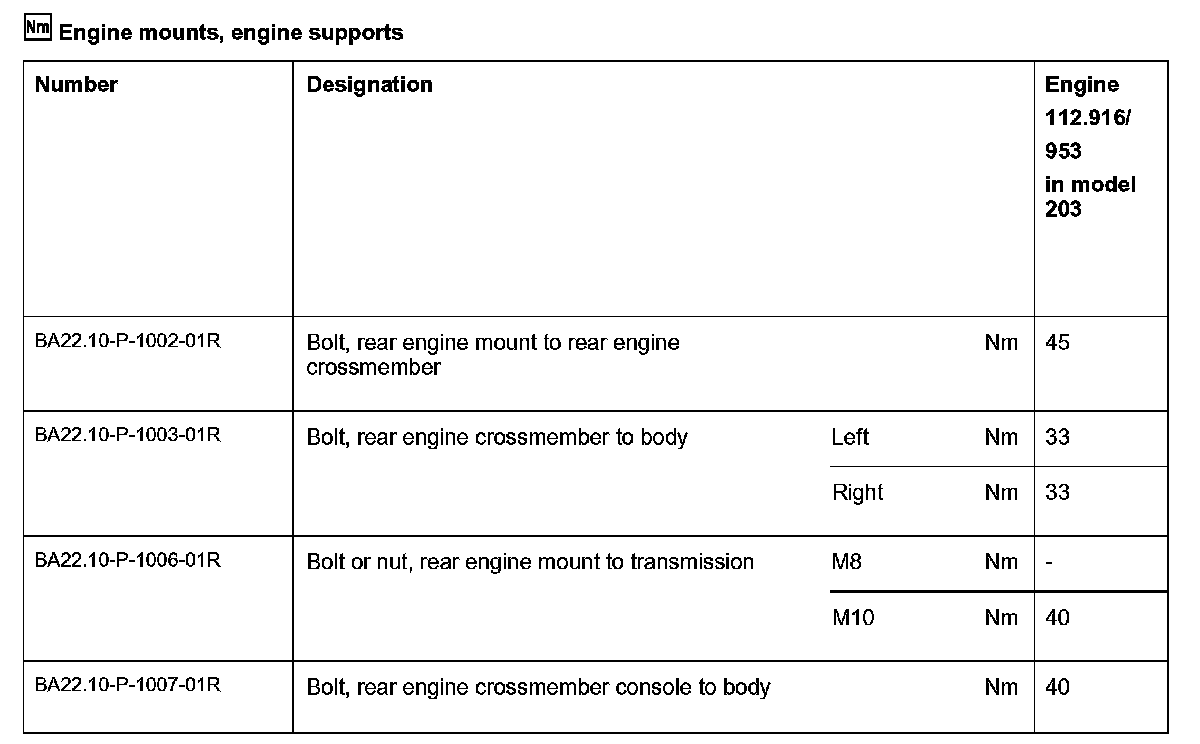

Engine mounts, engine supports:

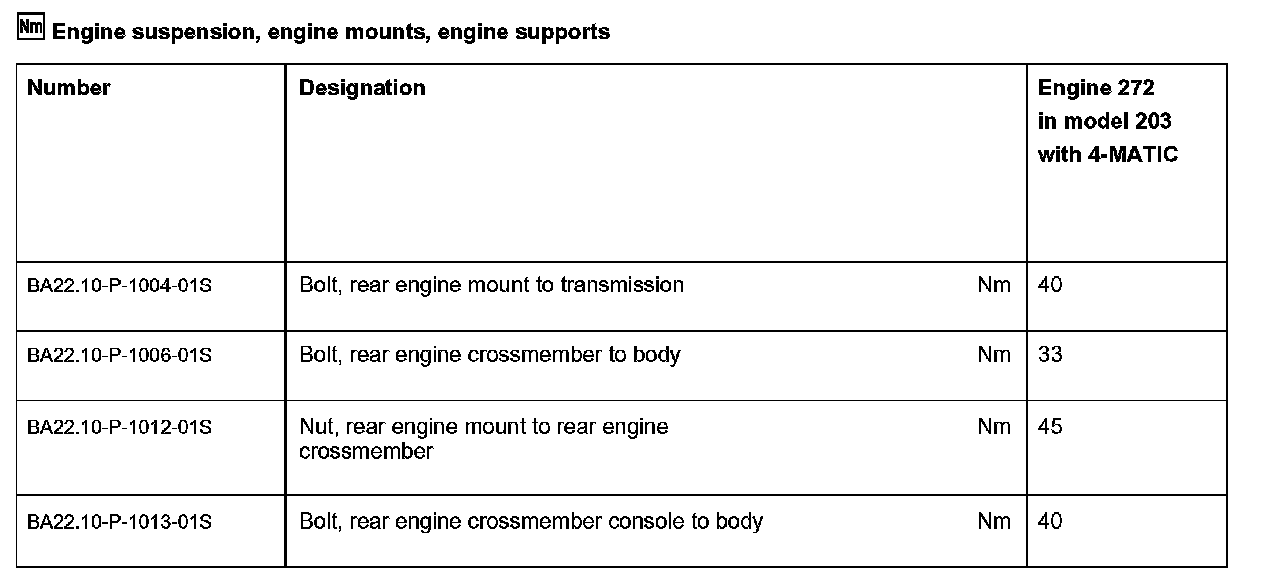

Engine suspension, engine mounts, engine supports:
