Intake Air Duct: Service and Repair
AR09.20-P-0080QB Remove/install the air duct housing

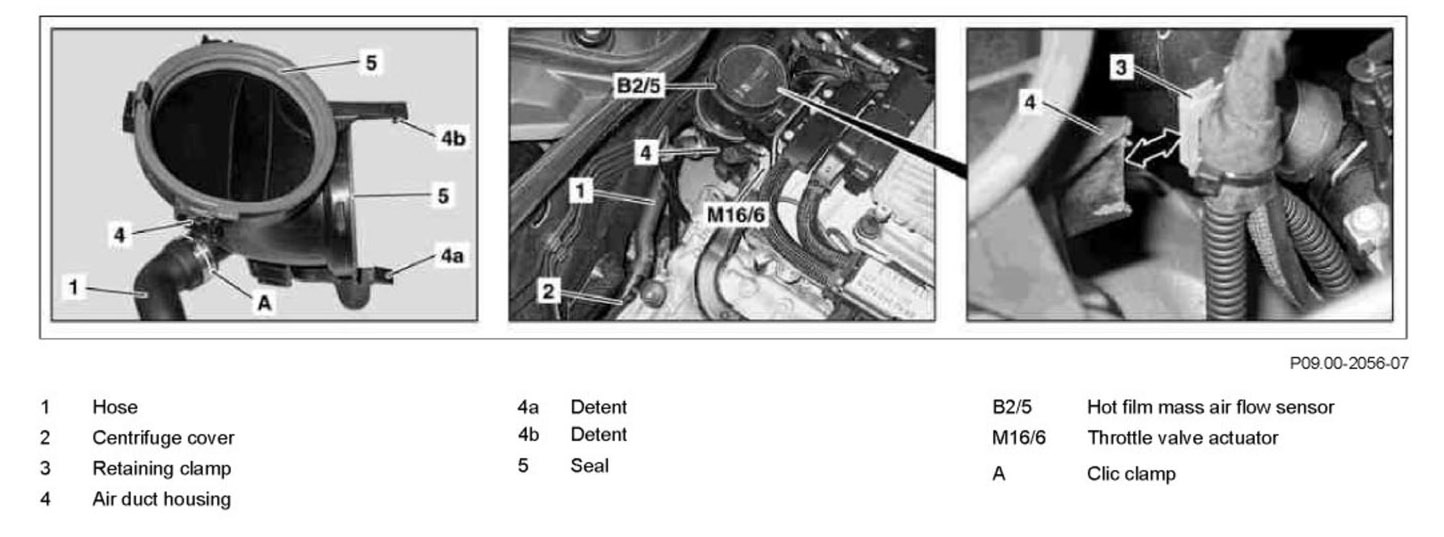

Component Identification:

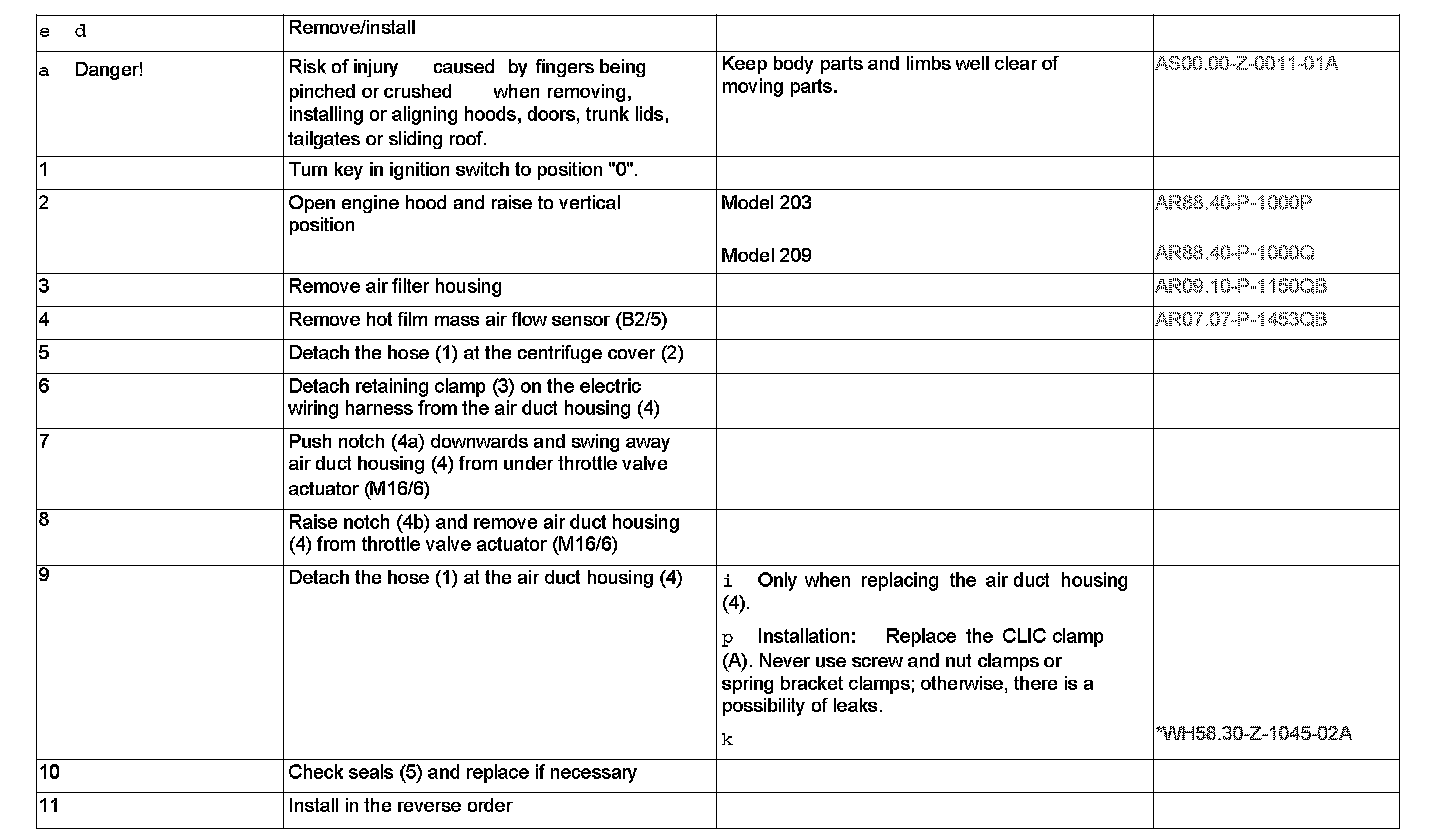

Steps 1 - 11:

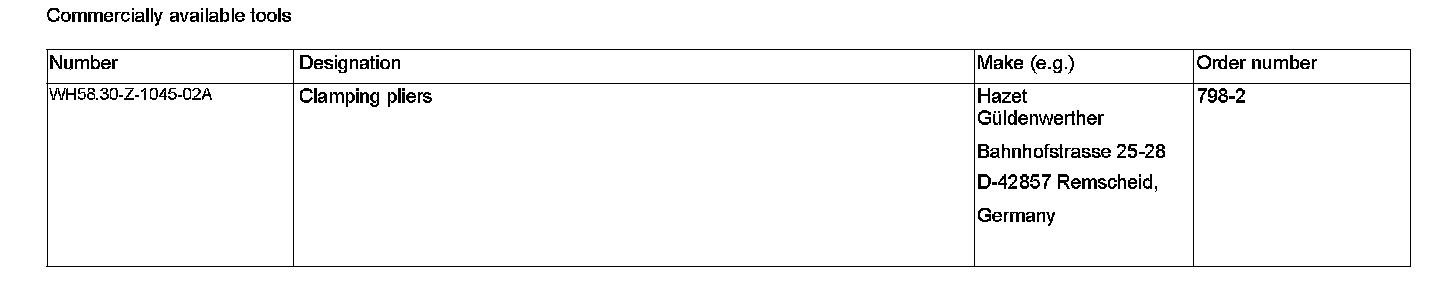

Commercially available tools:
