Air Diverter Valve: Service and Repair
AR14.30-P-7200QB Remove/Install Air Shutoff Valve

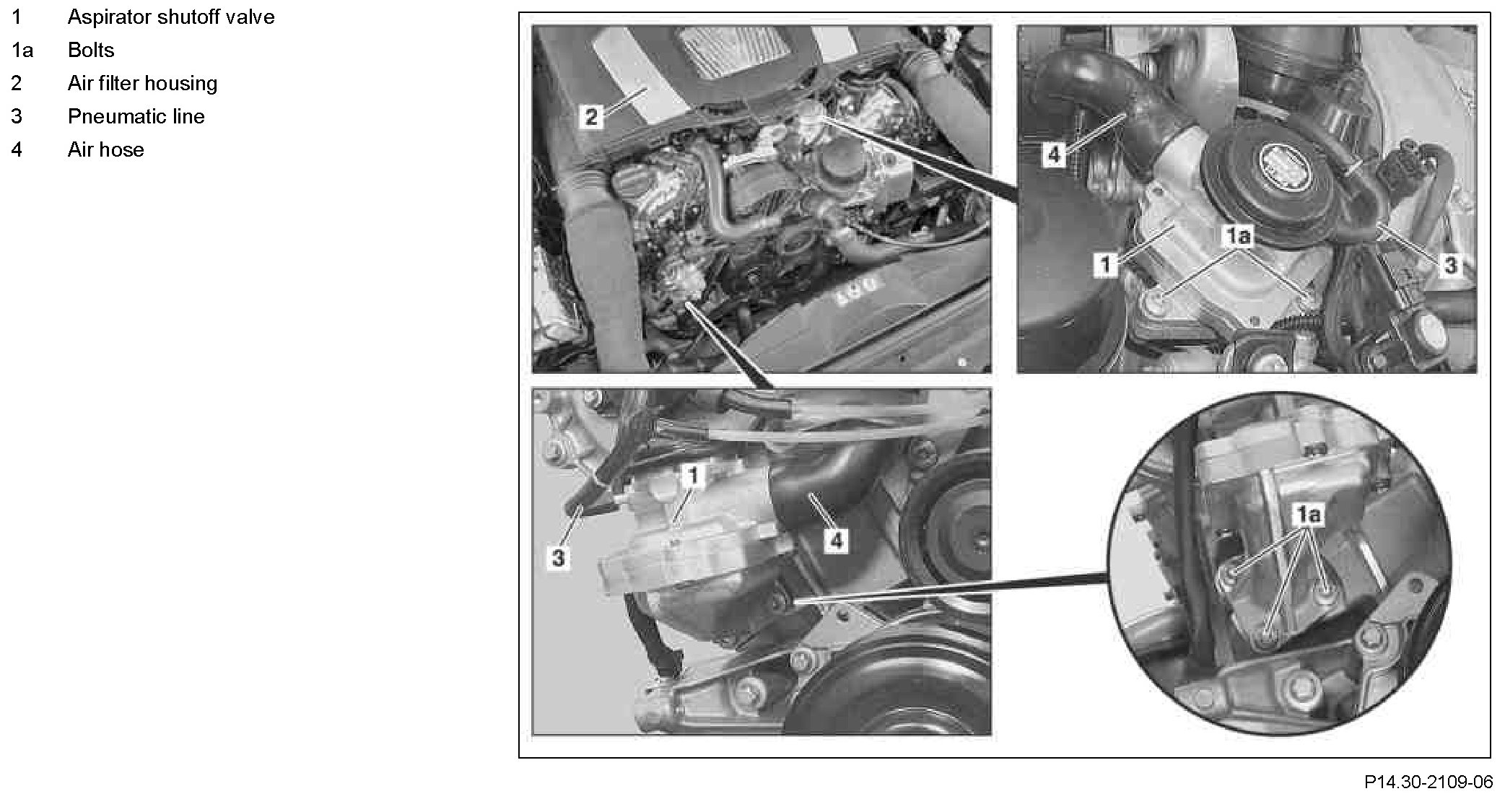

Component Identification:

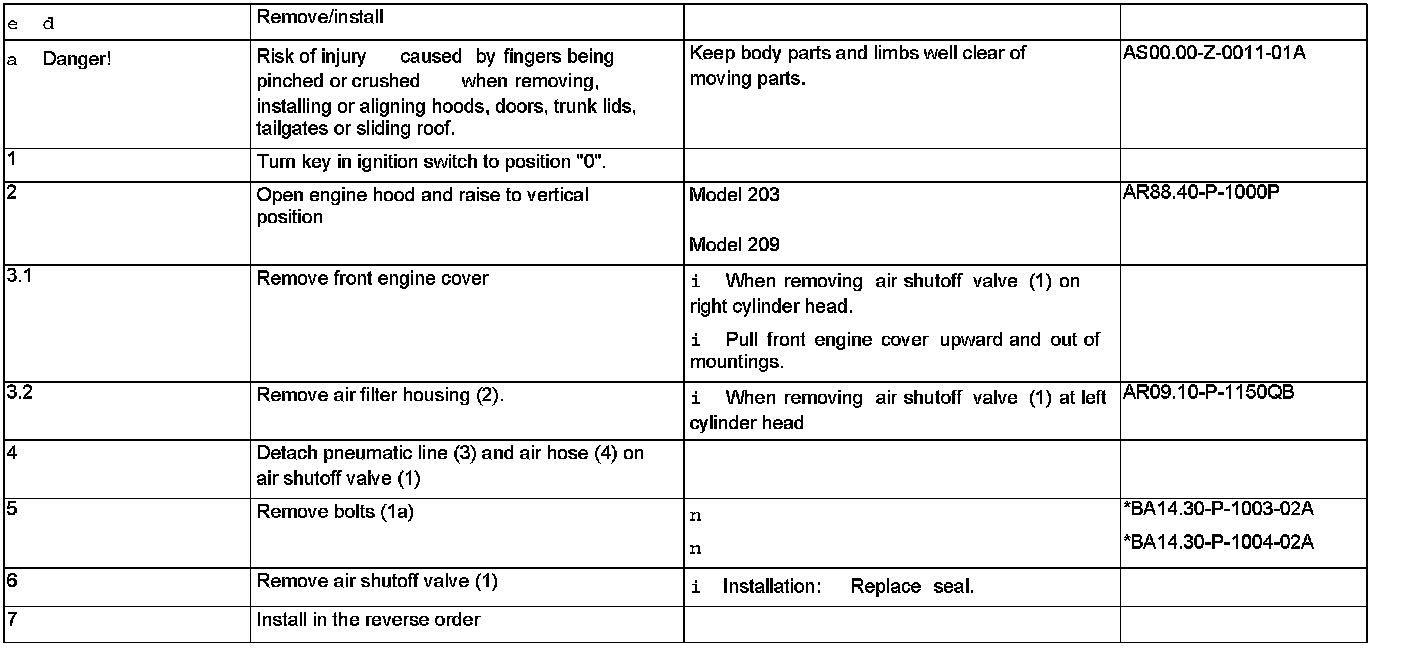

Steps 1 - 7:

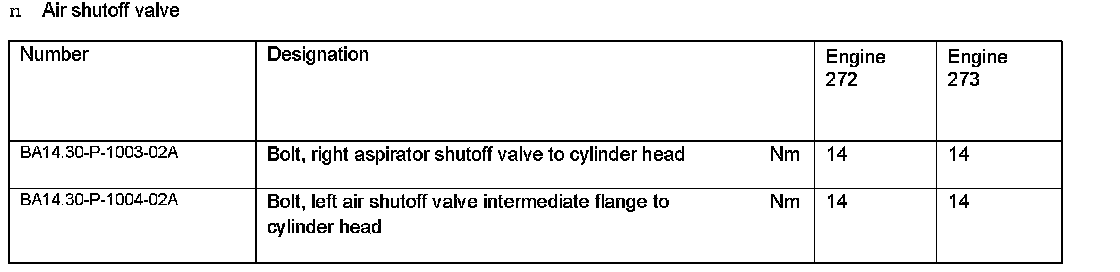

Air Shutoff Valve:
