AR40.30-P-0402-01PW Carrying Out Distance and Comparison Measurements On Front Axle

AR40.30-P-0402-01PW Carrying Out Distance and Comparison Measurements on Front Axle












124 589 01 19 00
Telescopic measuring rod





124 589 02 19 00
Telescopic measuring rod





170 589 00 63 00
Mount





168 589 07 63 00
Set of measurement fixtures





124 589 08 63 00
Connecting pieces

The measuring fixture set 168 589 07 63 00 is designed in such a way, that the measuring bolts, according to the measuring points at the vehicle, can be screwed together out of mounting bolts, extensions and measuring tips.

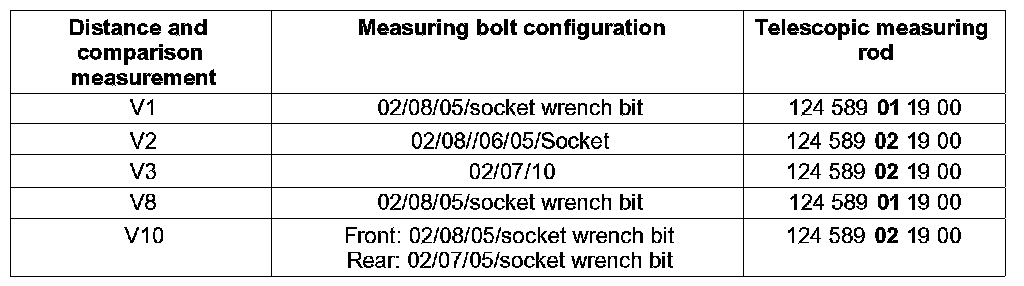

The configuration of the measuring bolts is shown in the table, where the numbers in the column headed "Measuring bolt configuration" are the special tool end numbers.

For example: 02/06/10 = 168 589 07 63 02 (support stud)
168 589 07 63 06 (extension)
168 589 07 63 10 (measuring tip)

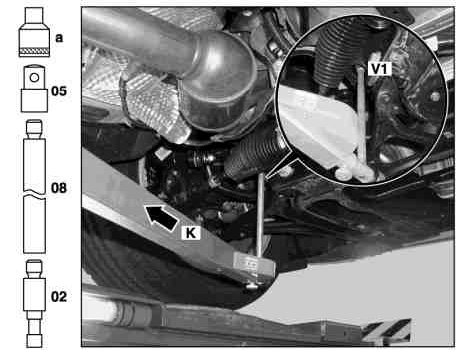

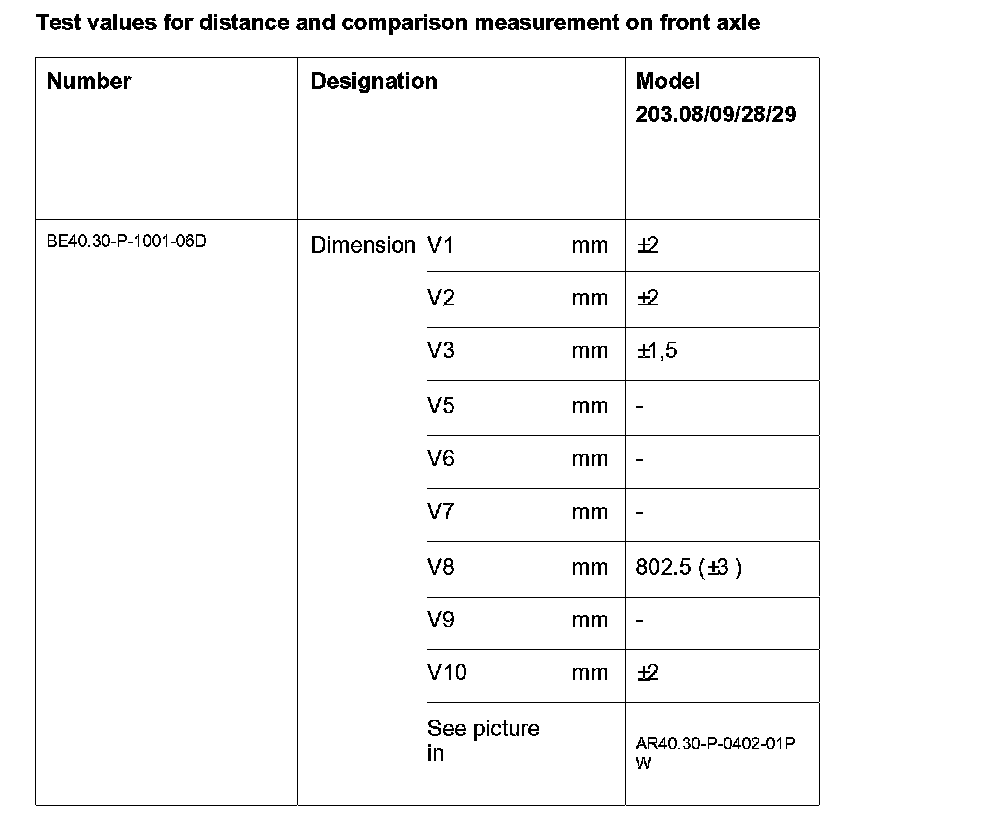

1 Comparison dimension "V1", measured from left to right from the check bore " K" to the mounting bolt of the front axle carrier at the rear.





2 Comparison dimension "V2", measured from left to right from the check bore " K" to the mounting bolt of the front axle carrier at the front.





3 Comparison dimension "V3", measured from the check bore " K " to the center of the mounting bolt of the rear mount at the lower transverse control arm, left to right.

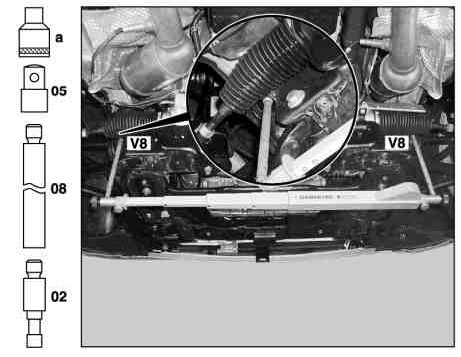

4 Distance measurement "V8" measured to the centers of the Torx(R) bolt heads between the rear mountings of the front axle carrier.

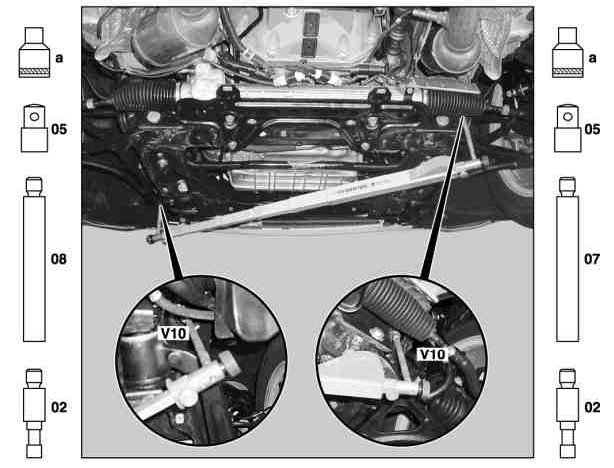

5 Comparison dimension "V10", measured diagonally to the center of the Torx(R) bolt heads between the front and rear supports for the front axle carrier, left to right.
