Cylinder Liner: Service and Repair
AR01.40-P-9202QB Measure cylinder bores

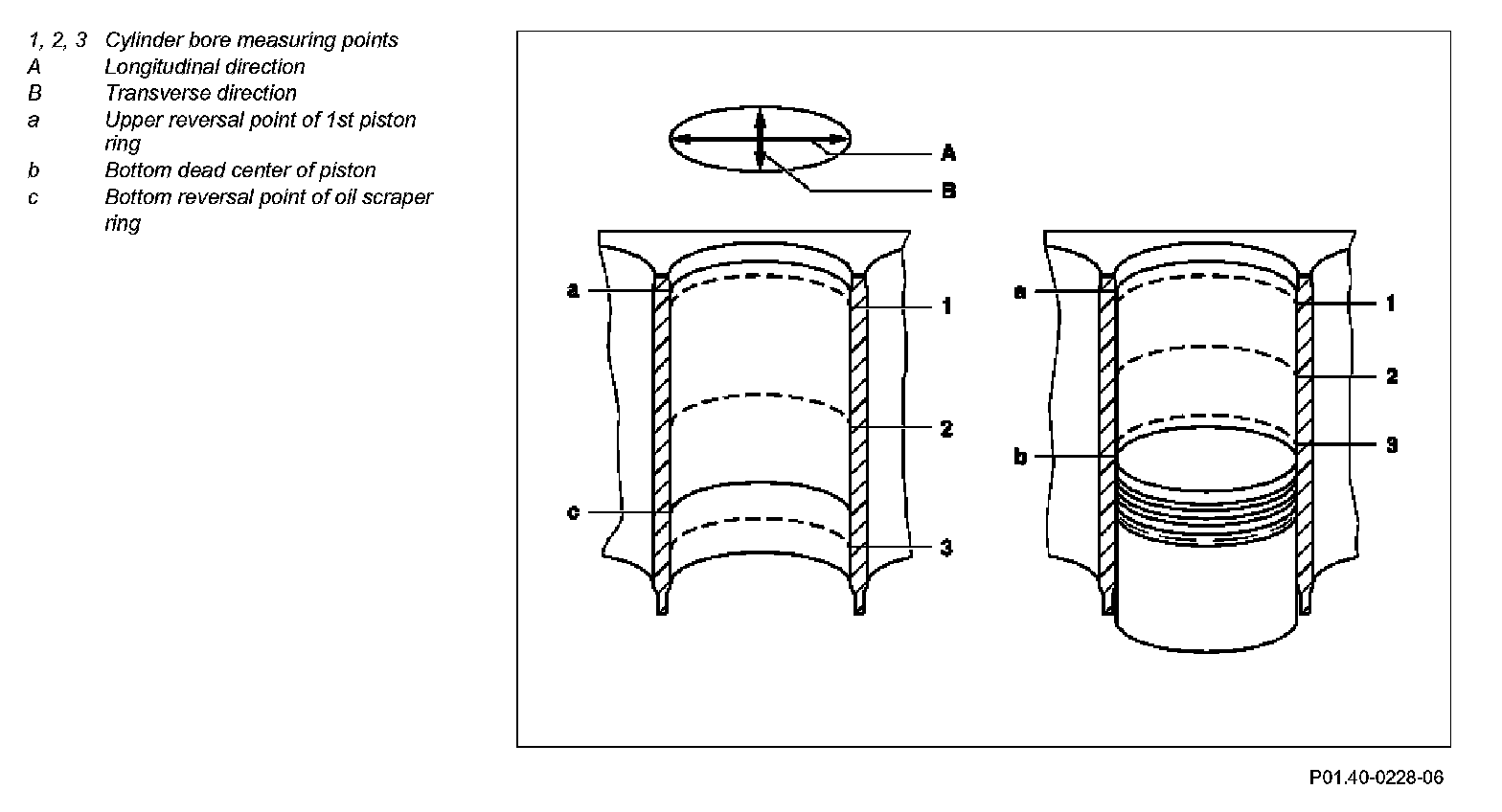

Cylinder bore measurement:

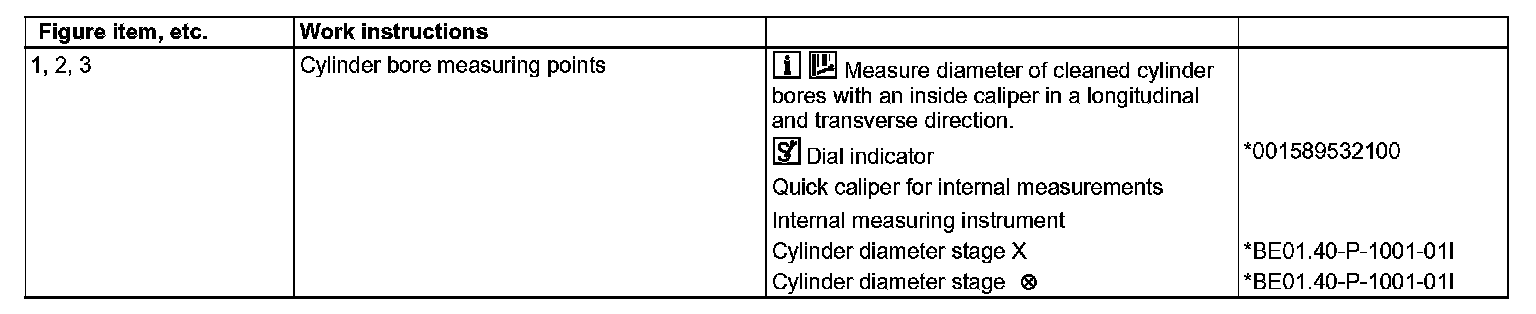

Work instructions:

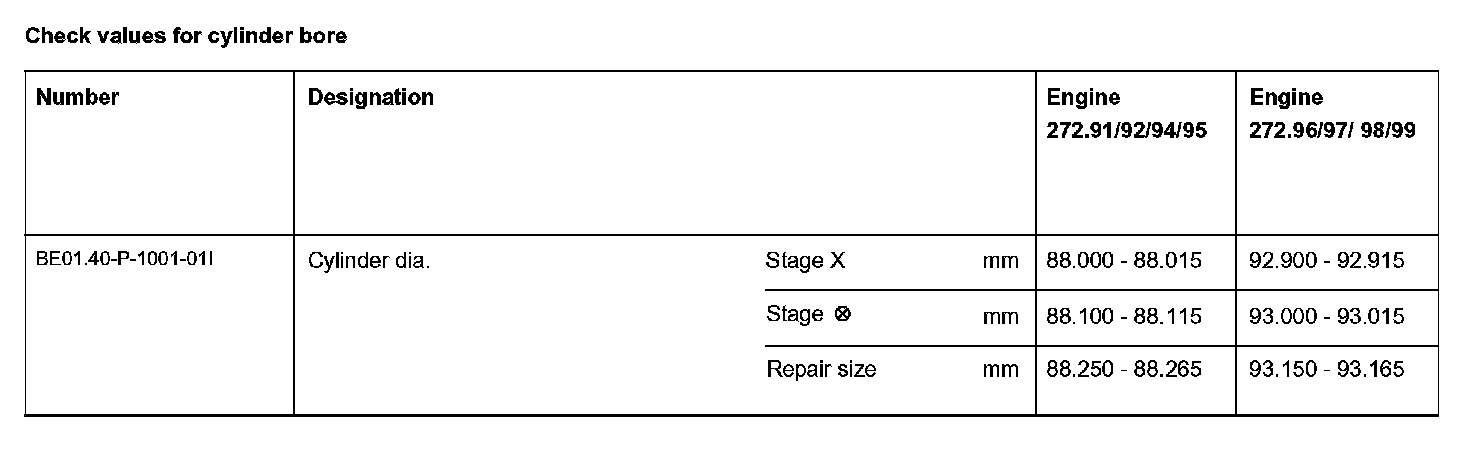

Check values for cylinder bore:

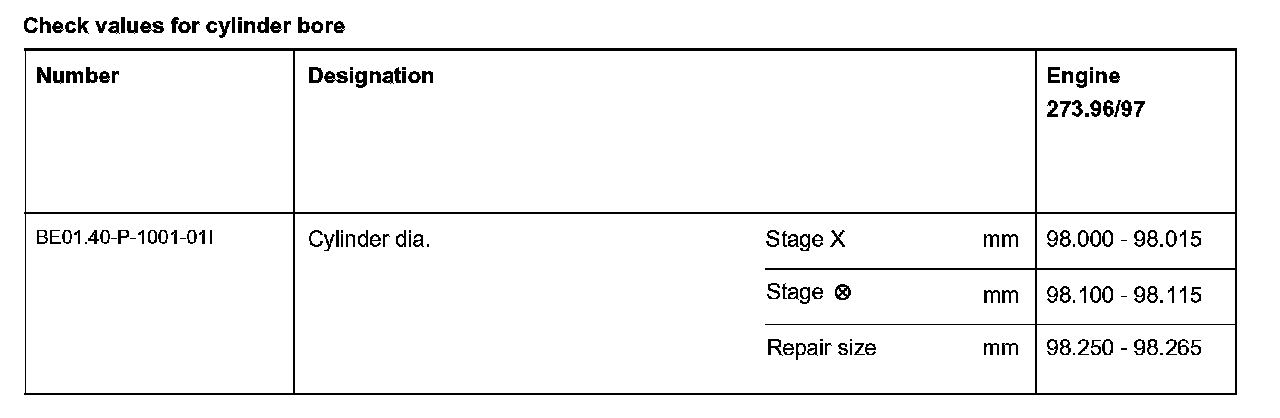

Check values for cylinder bore:

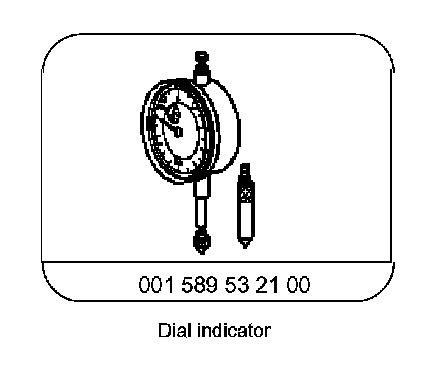

Special Tools:
