Brake Rotor/Disc: Testing and Inspection

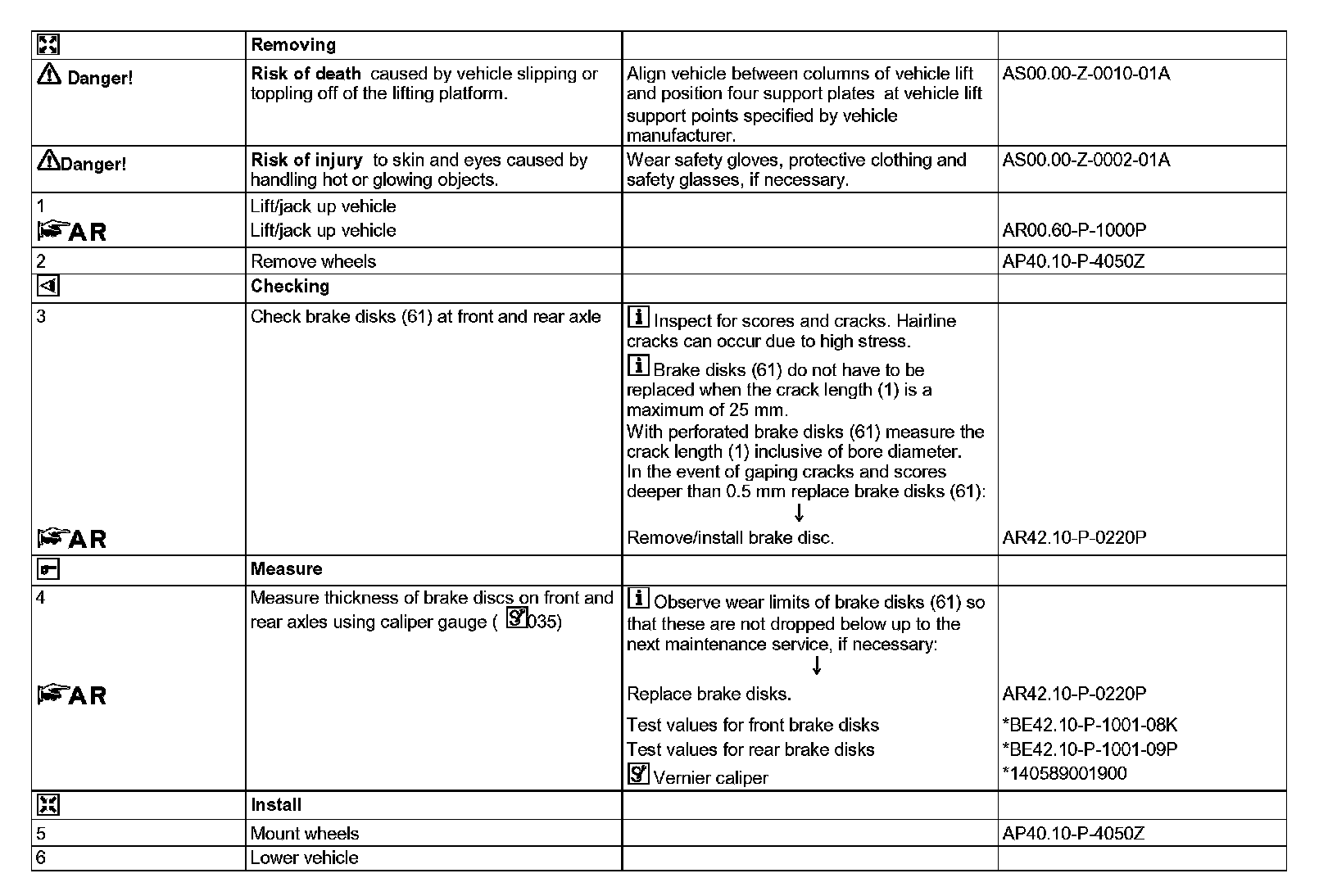

AP42.10-P-4258BP Inspect Condition of Brake Disks

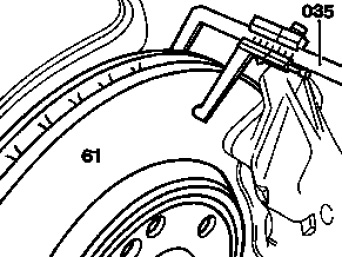

035 Measuring caliper

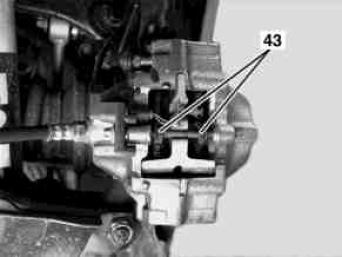

43 Brake pads
61 Brake disk

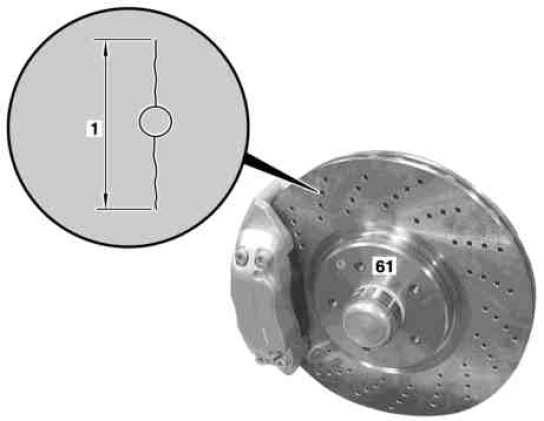

1 Crack length
61 Brake disk


























140 589 00 19 00
Vernier caliper
