AR88.20-P-2000P Remove/Install Front
Bumper

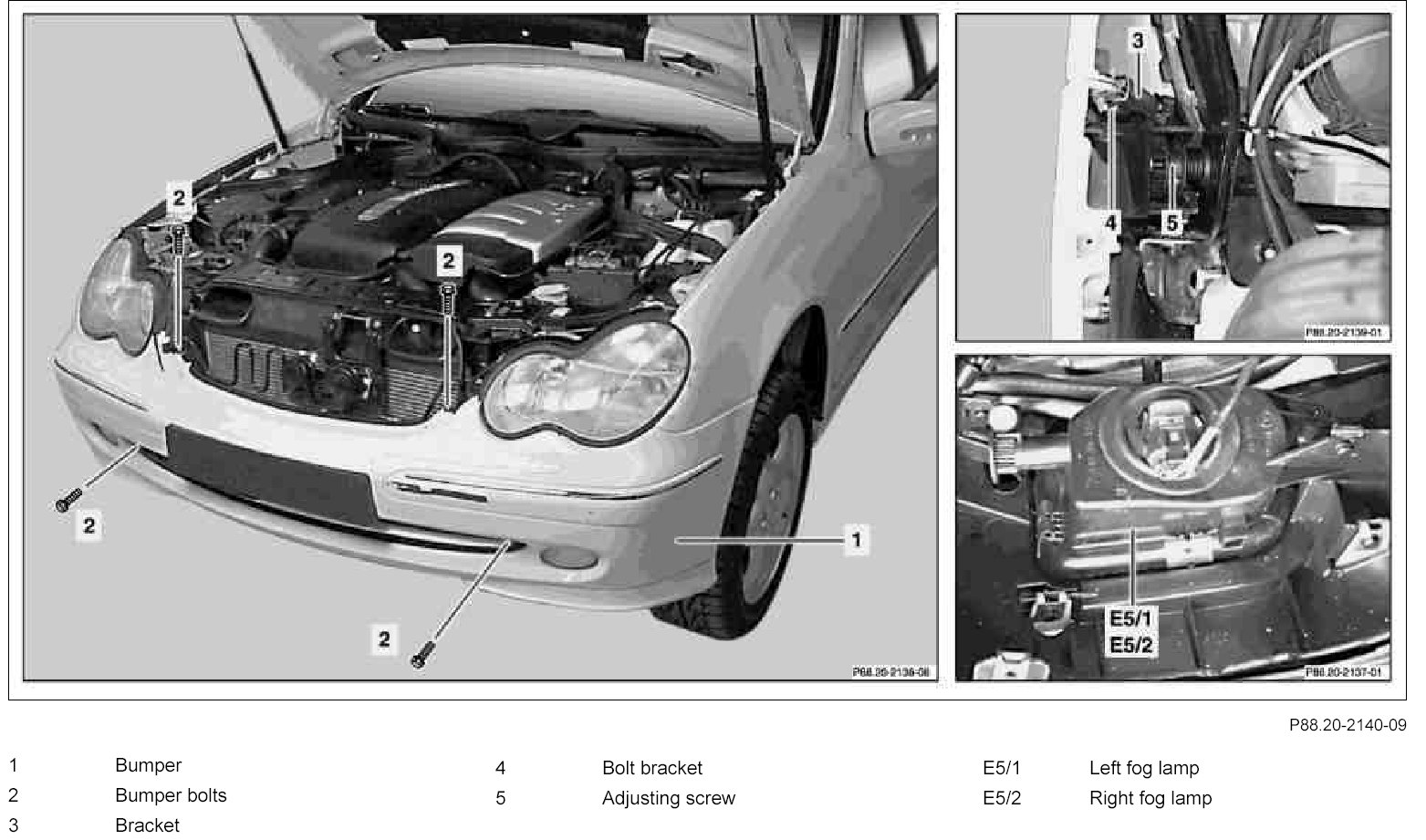

Component Identification:
Component Identification:

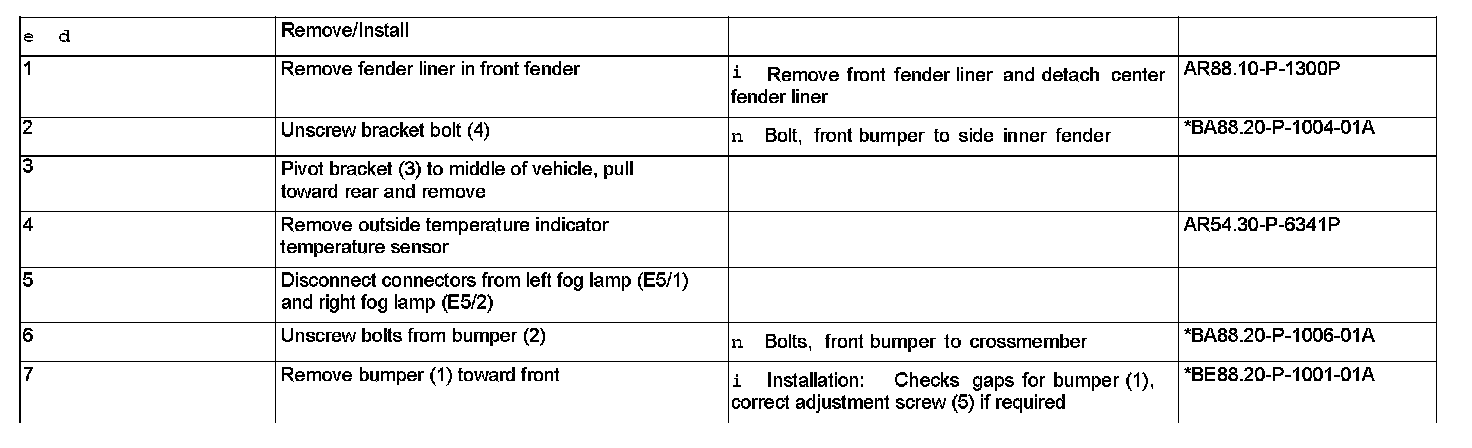

Steps 1 - 7:

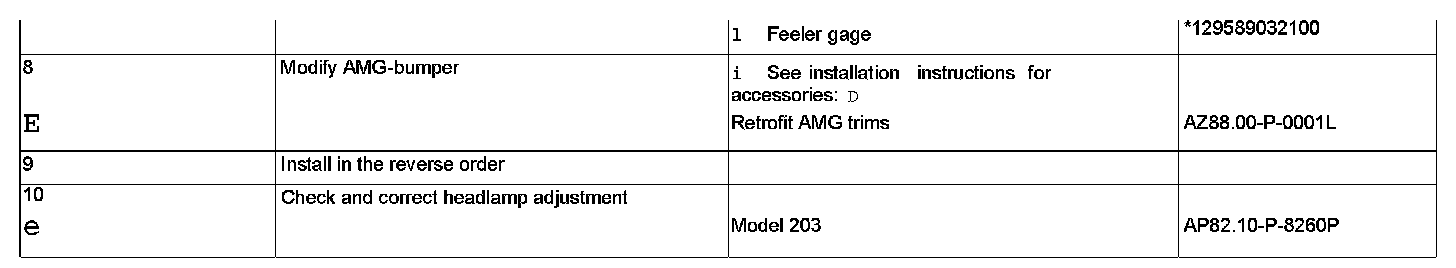

Steps 8 - 10:

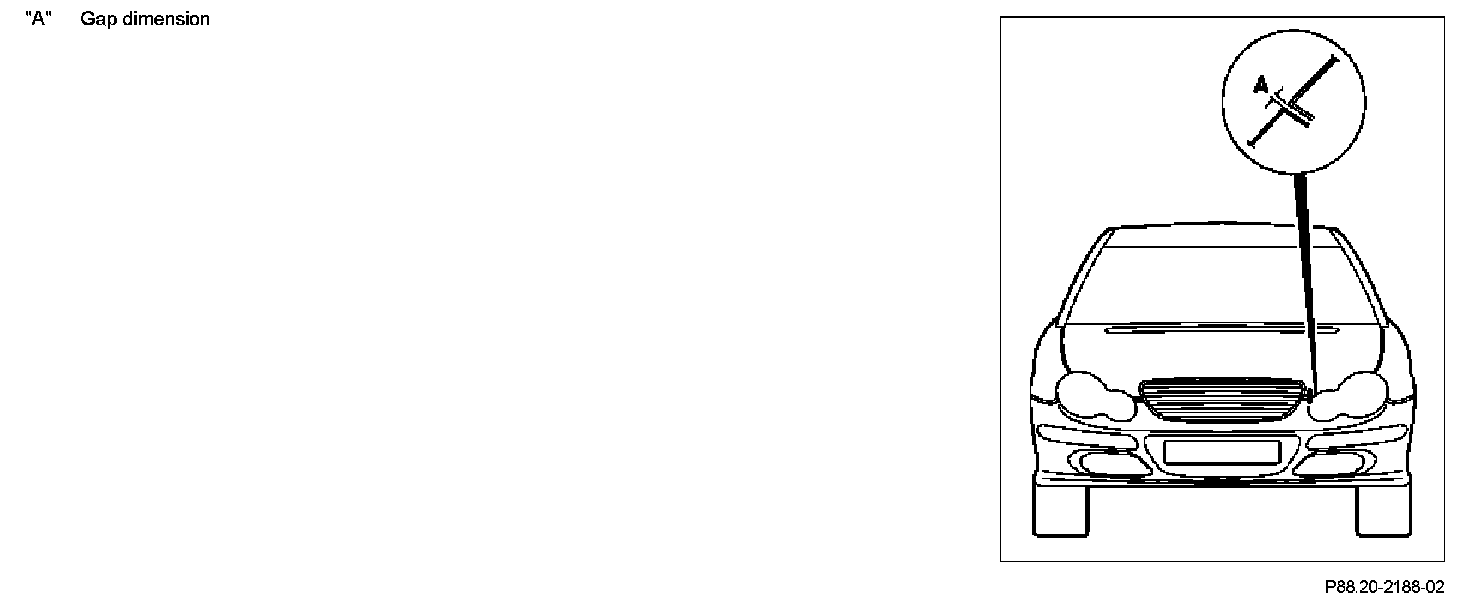

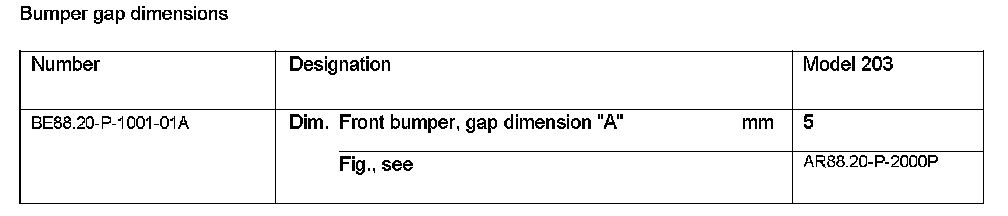

Bumper Gap Dimensions:

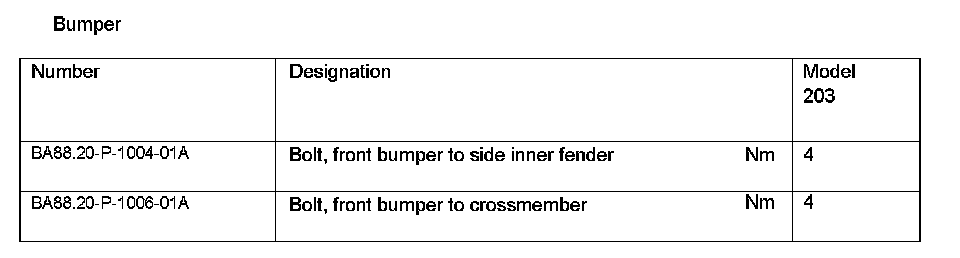

Bumper:

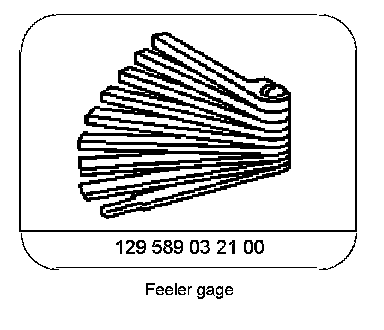

Special Tools:
