Removal and Replacement



Remove/install oil lines of oil cooling for automatic transmission
- Transmission 722.9

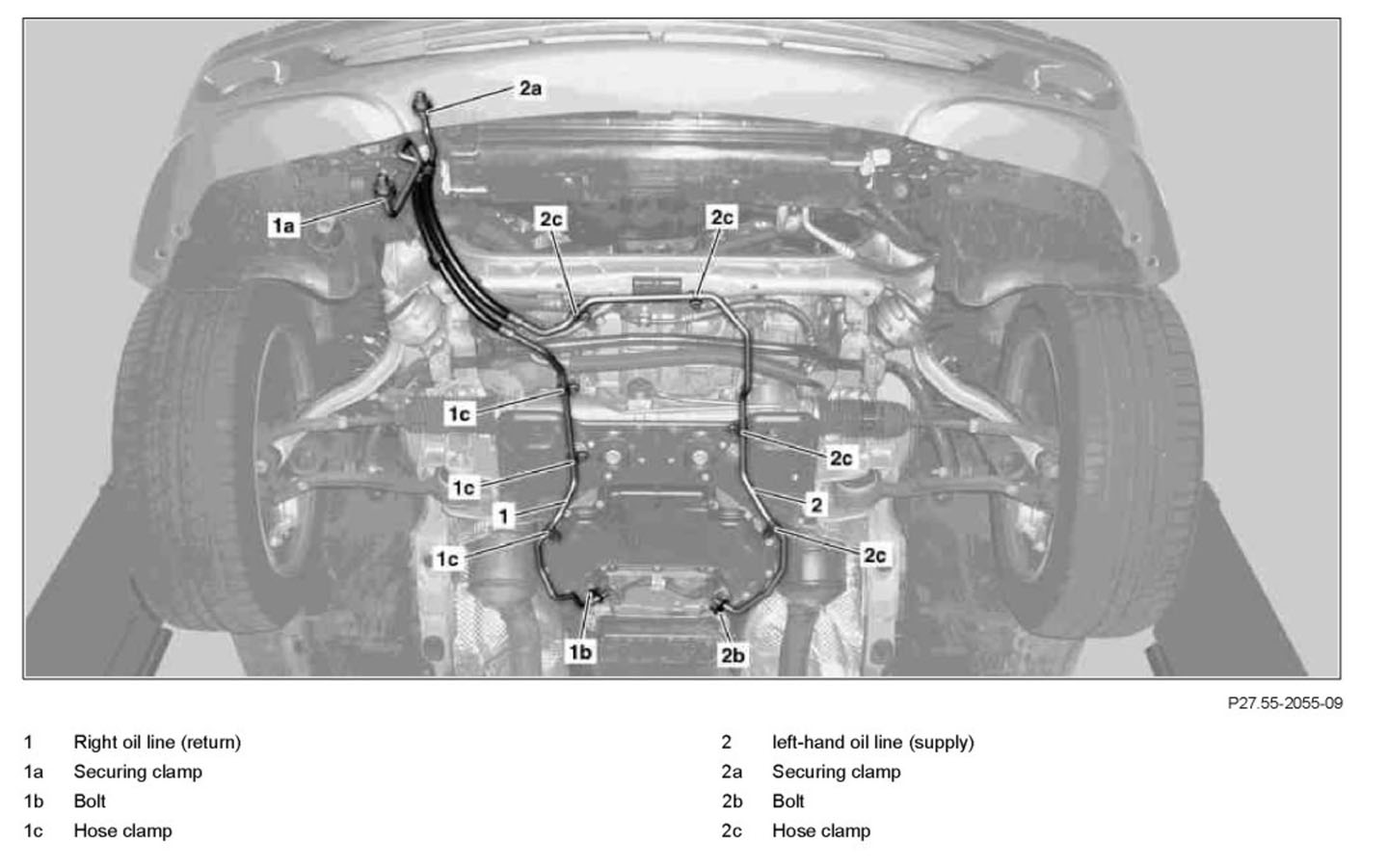

Component Identification:

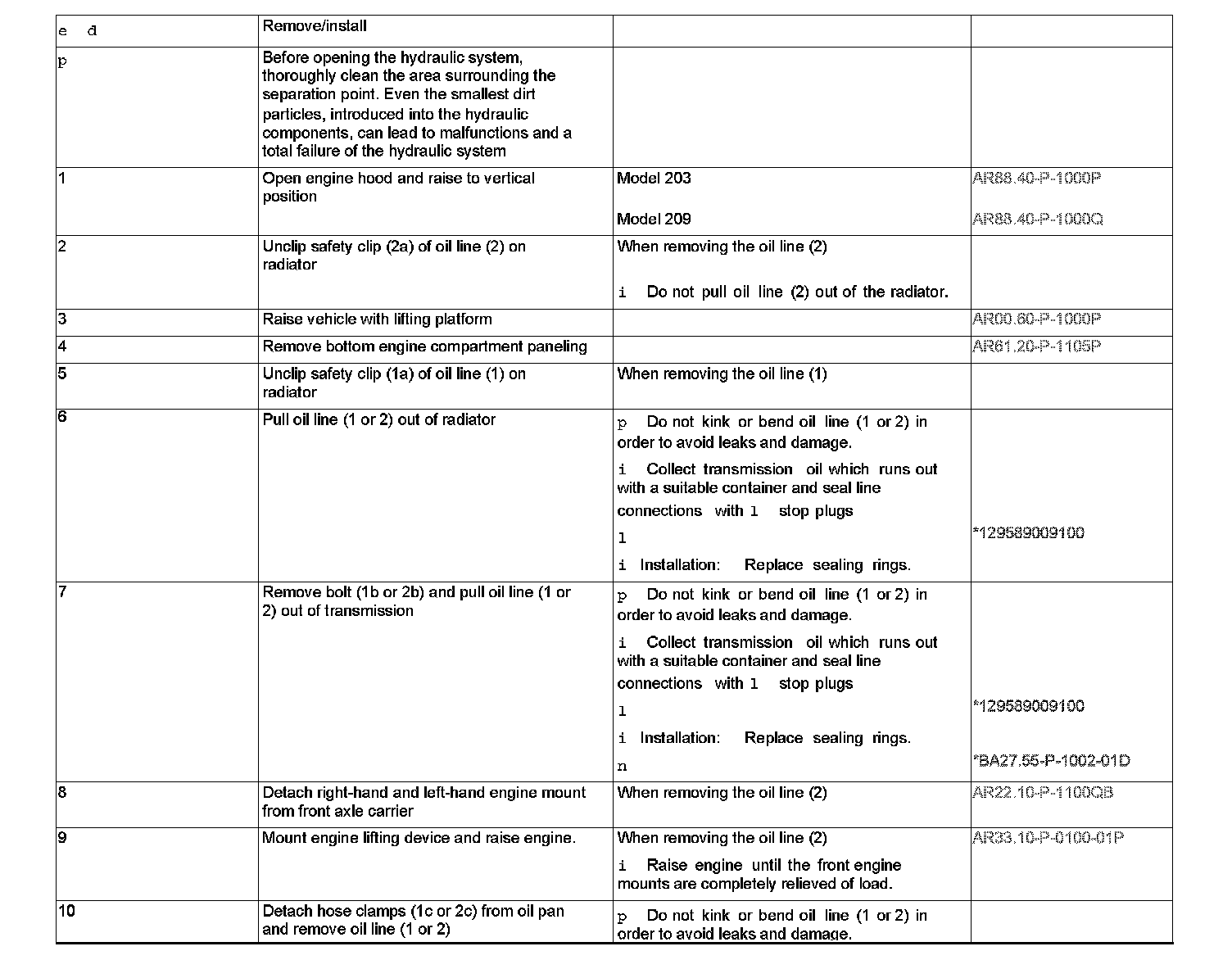

Steps 1-10:

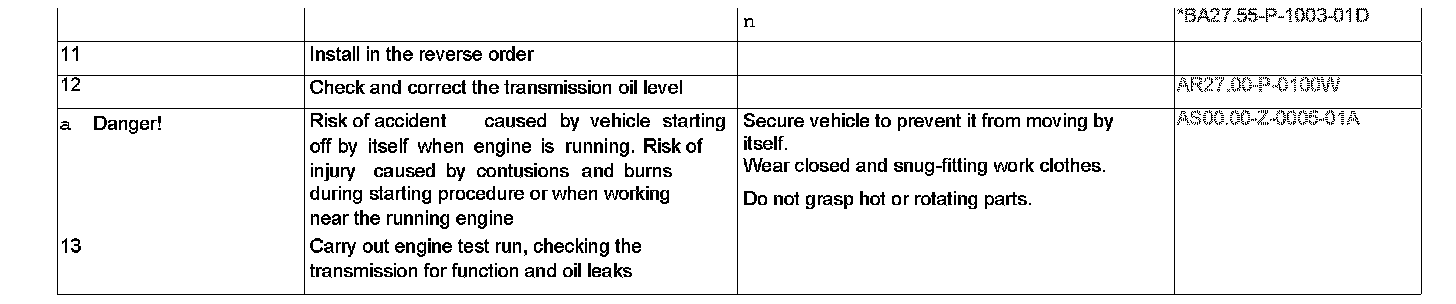

Remove/install Steps 11-13:

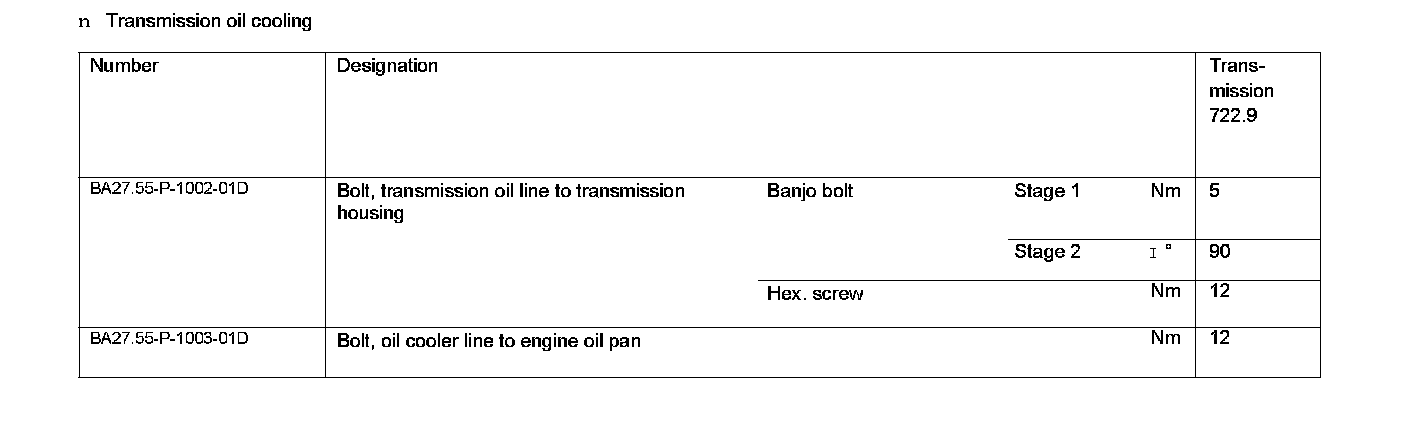

Transmission oil cooling:




Special Tools:
