AR27.19-P-0200V Remove/Install Electrohydraulic Controller Unit (Transmission Installed)
AR27.19-P-0200V Remove/Install Electrohydraulic Controller Unit (Transmission Installed)
AR27.19-P-0200V Remove/install electrohydraulic controller unit (transmission installed)
-
with TRANSMISSION 722.6

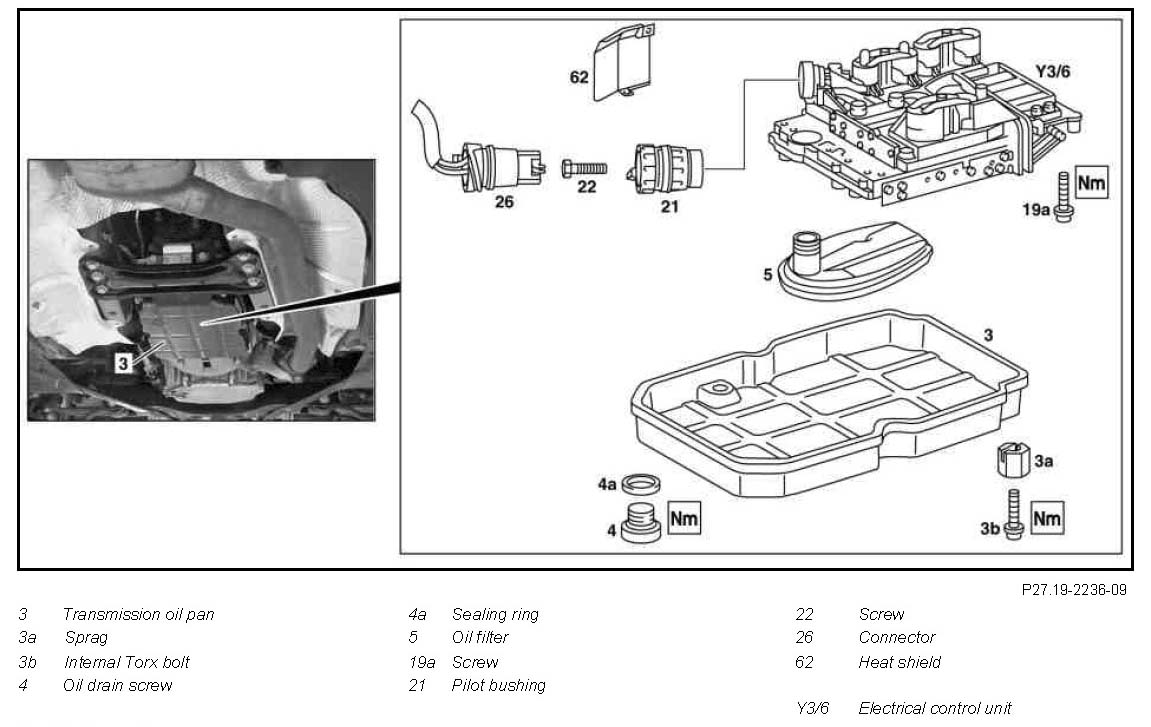

Component Identification:

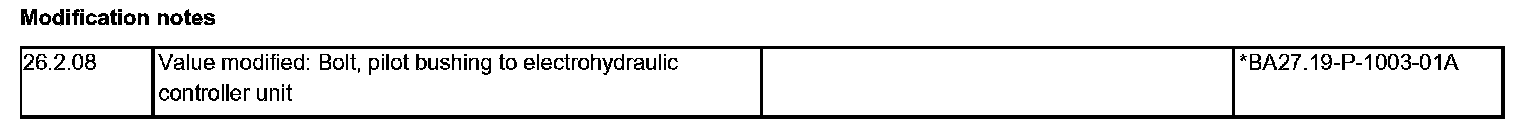

Modification notes:

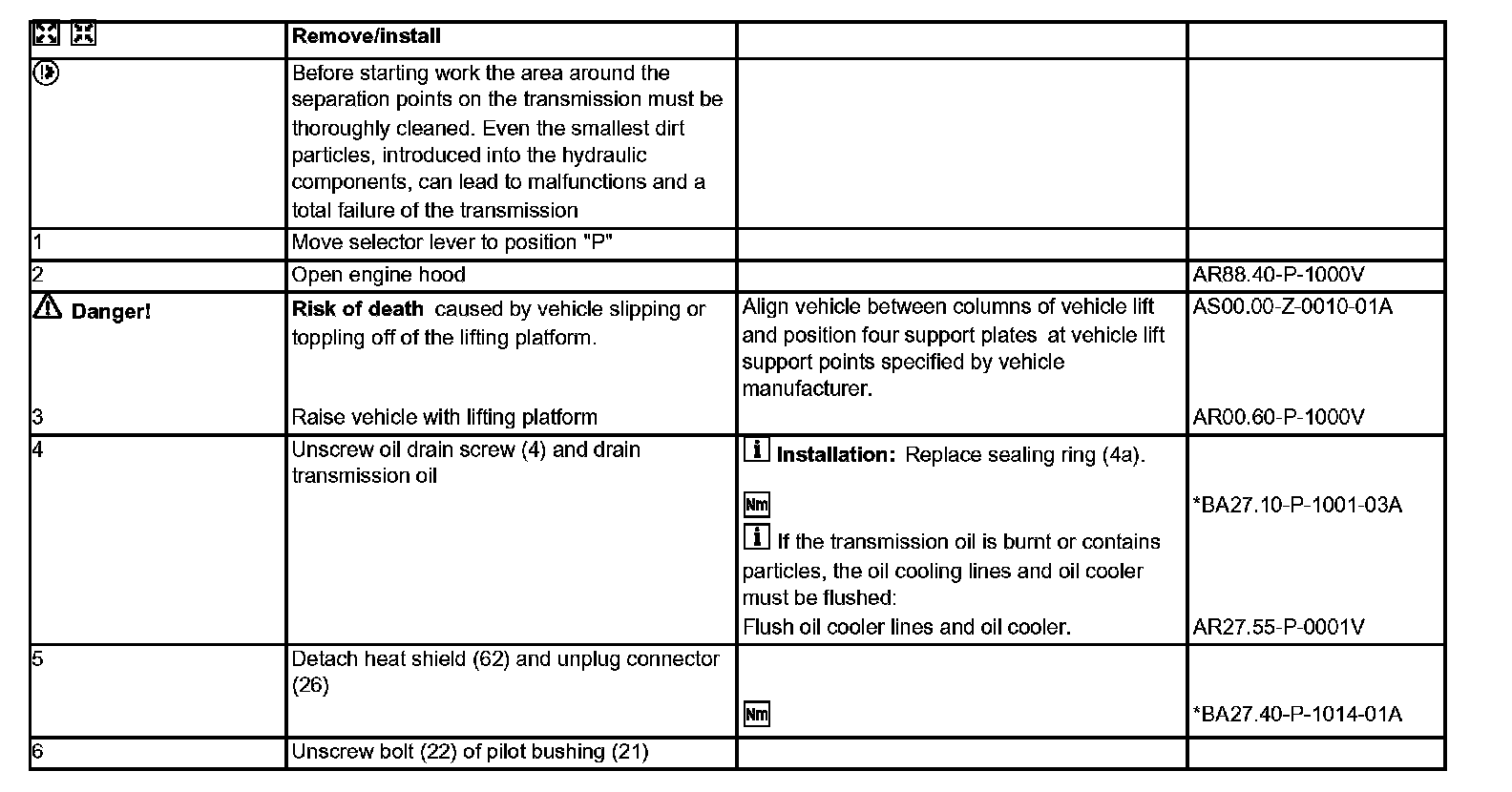

Remove/install Steps 1-6:

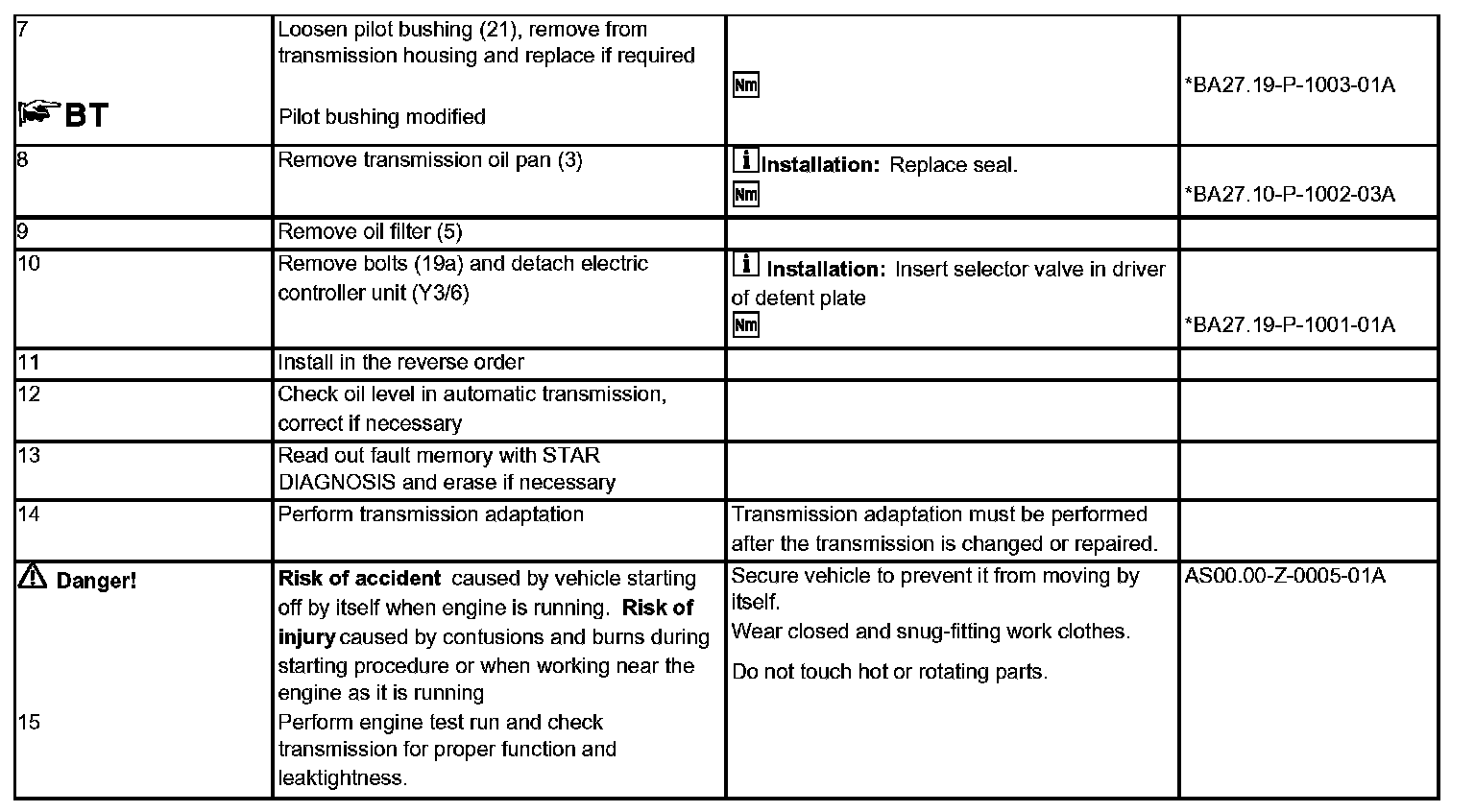

Remove/install Steps 7-15:
Oil pan, automatic transmission:

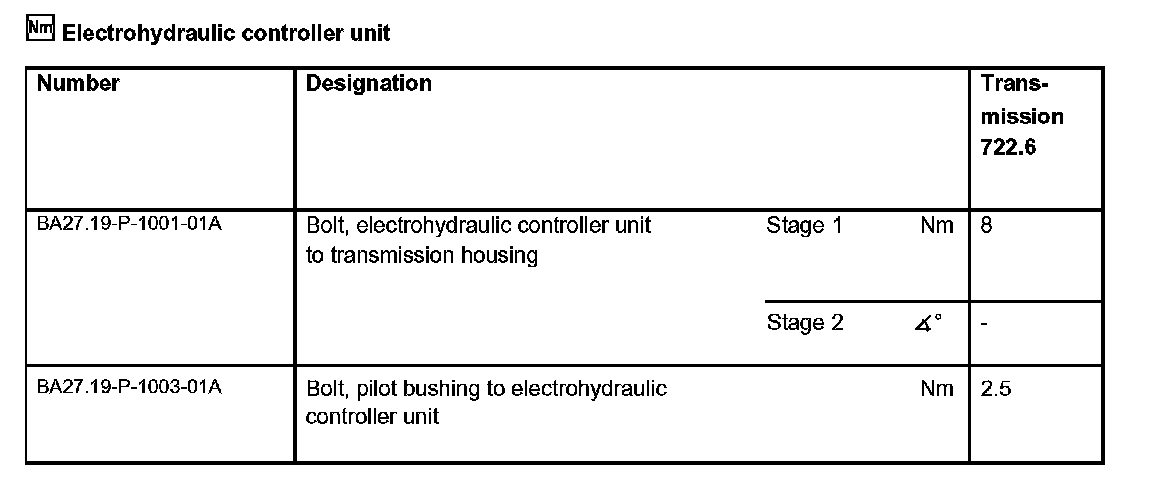

Electrohydraulic controller unit:

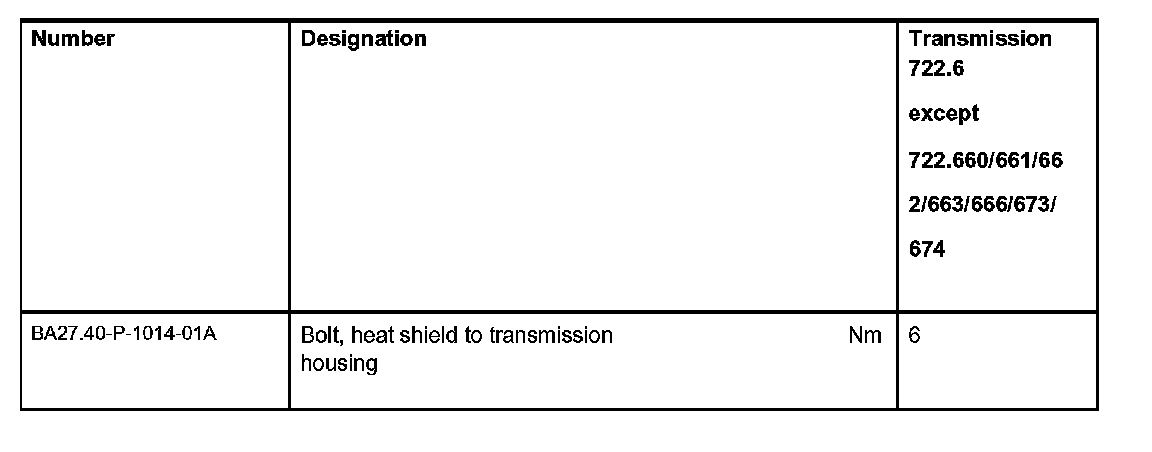

Housing:
