CLK 55 AMG (209.376) V8-5.5L (113.987)
>>
Repair and Diagnosis
>>
Maintenance
>>
Drive Belt
>>
Testing and Inspection
Drive Belt: Testing and Inspection

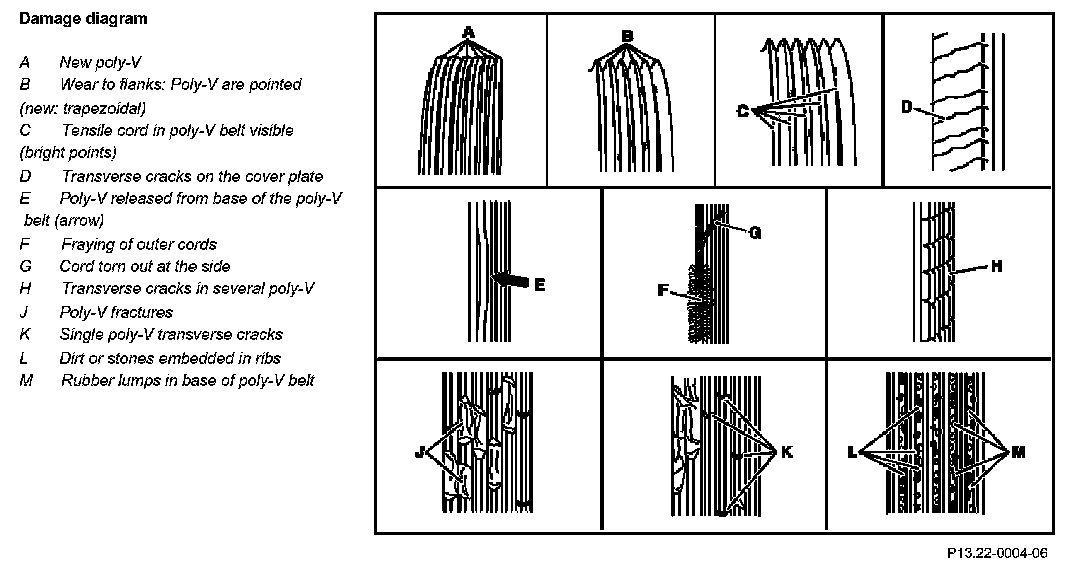

AP13.22-P-1352Z Check Visible Area Of Poly-V Belt For Wear

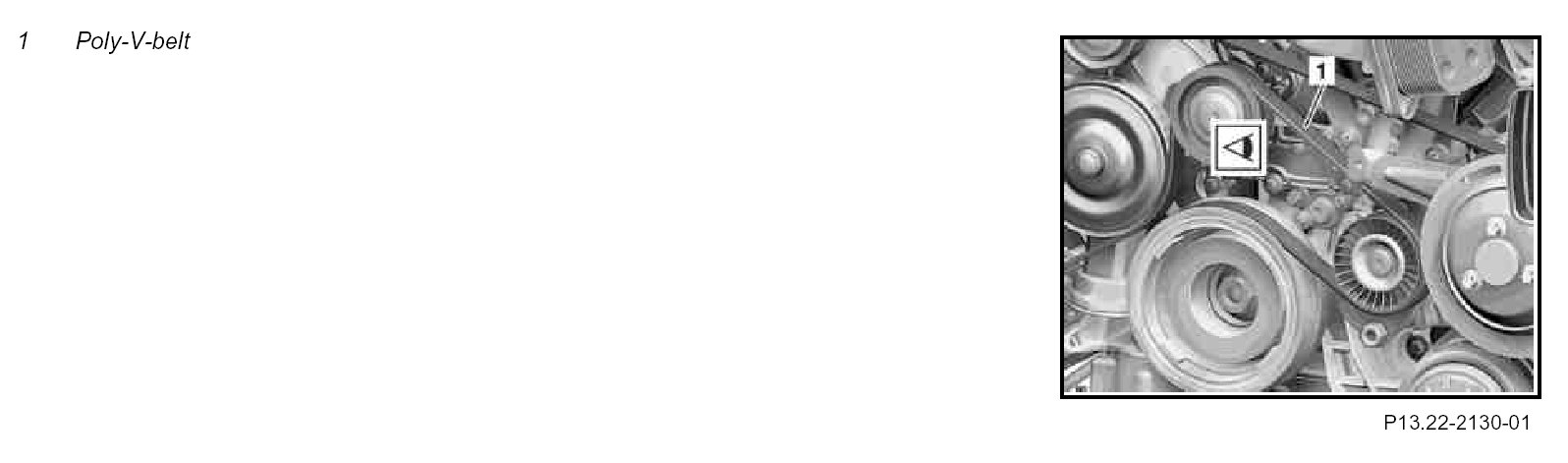

Component Identification:
Component Identification:

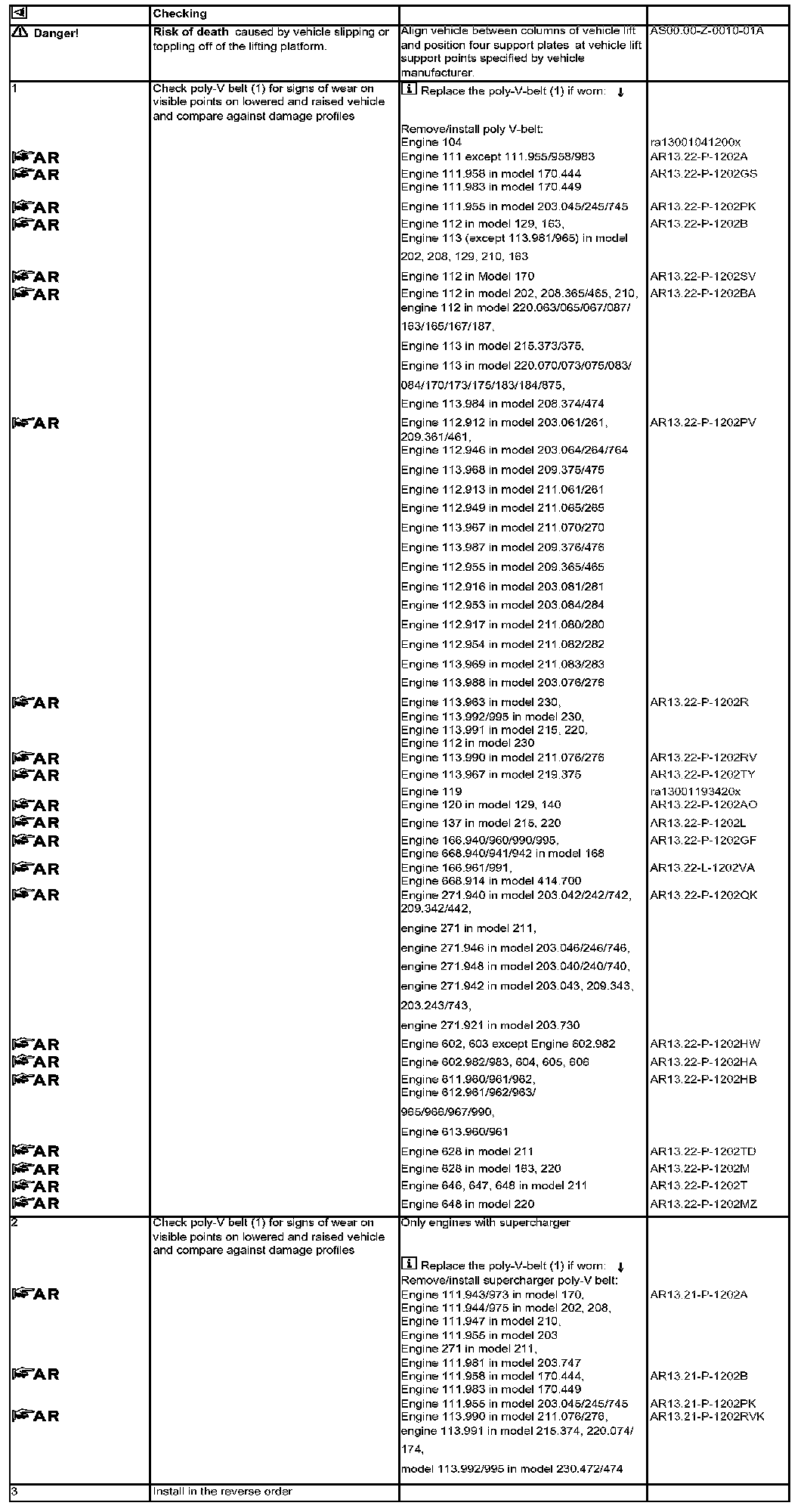

Steps 1 - 3:
