AR15.40-P-5012QB Test Alternator Fuse
AR15.40-P-5012QB Test Alternator Fuse
AR15.40-P-5012QB Test
alternator
fuse

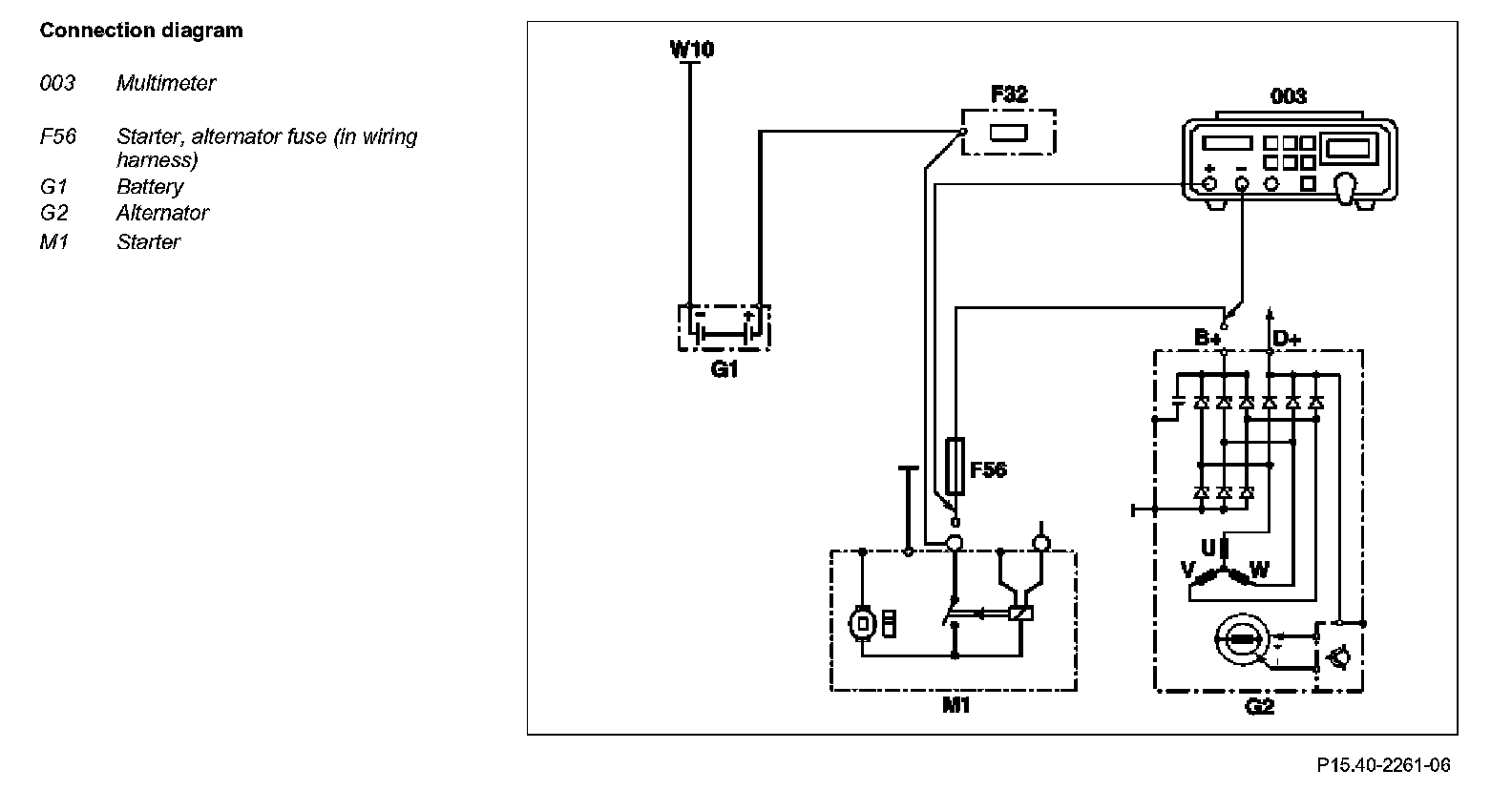

Connection diagram:

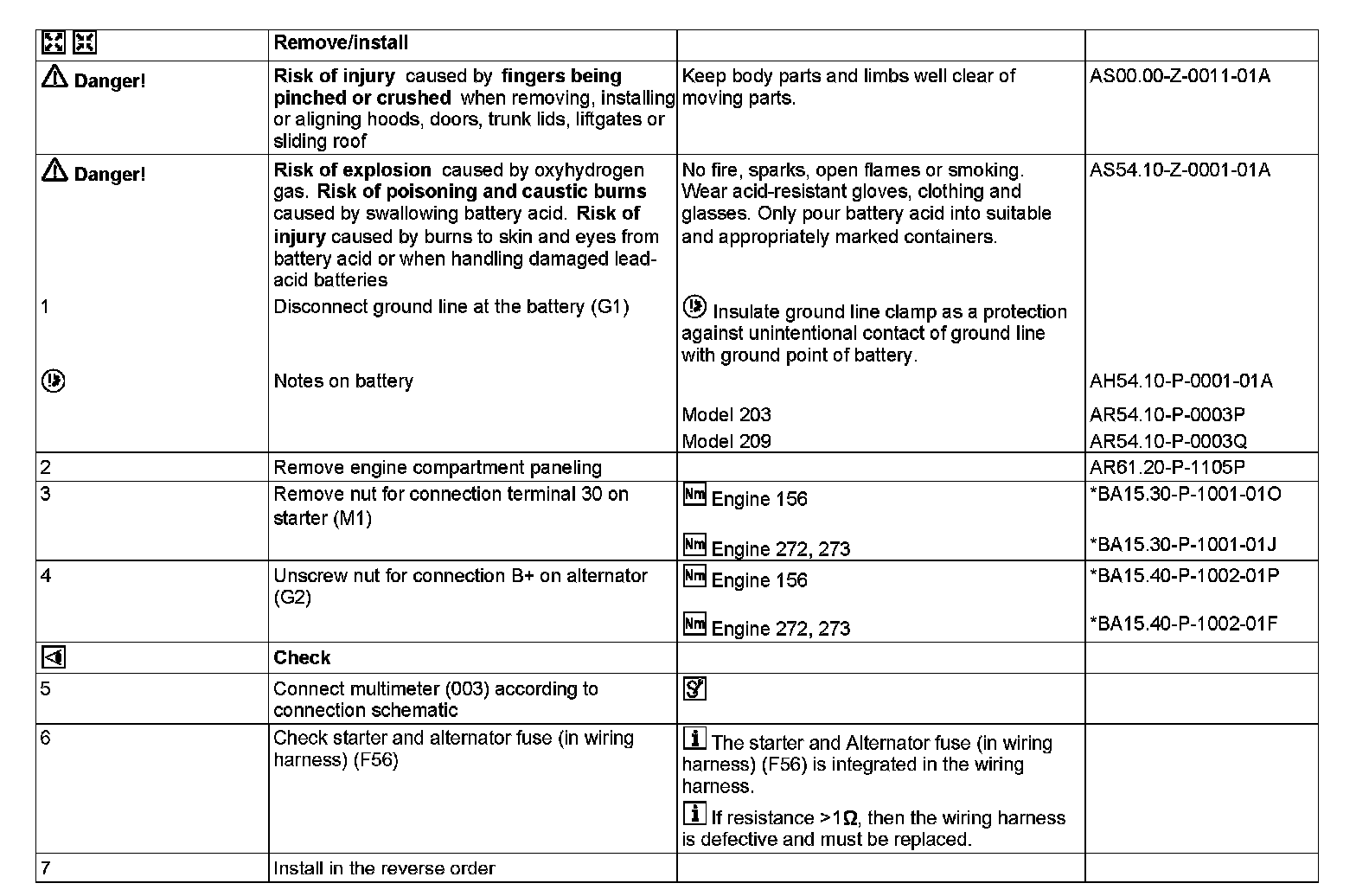

Steps 1-7:

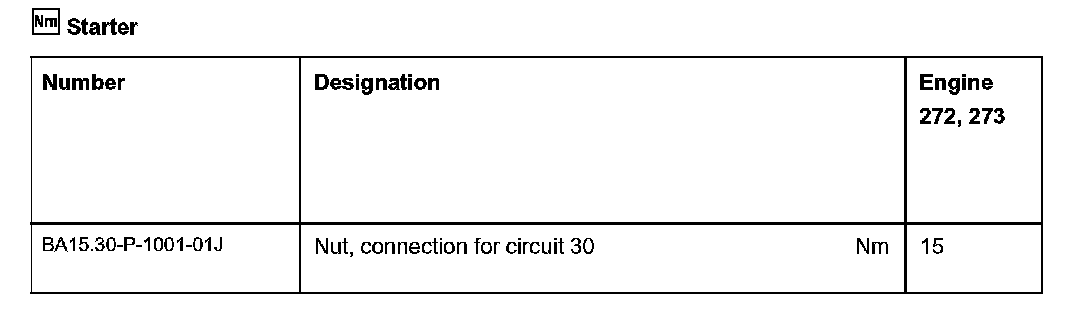

Starter:

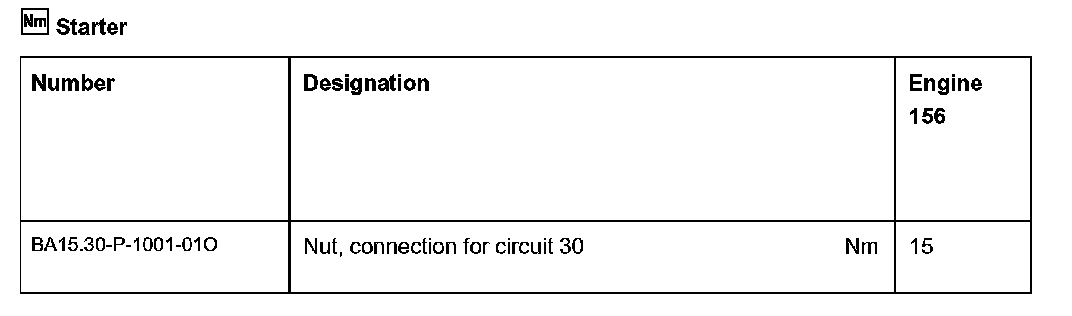

Starter:

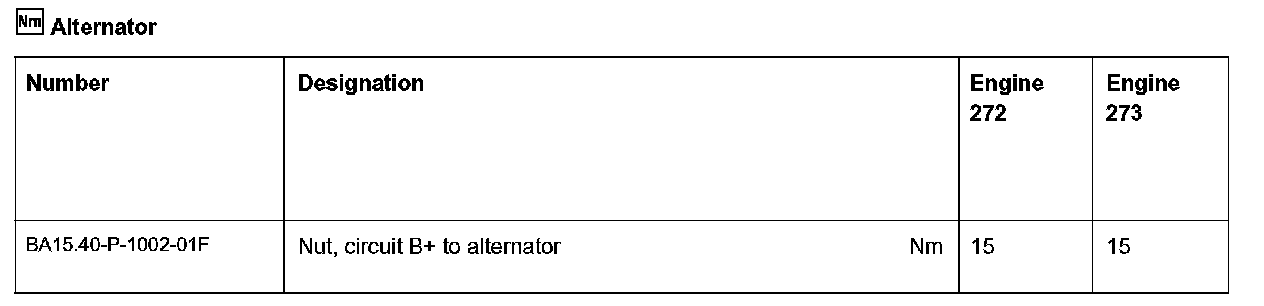

Alternator:

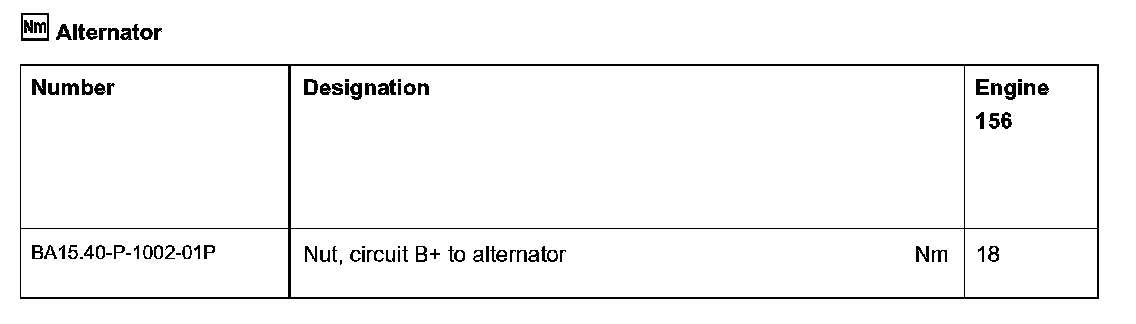

Alternator:
