Alternator Pulley / Clutch: Service and Repair
AR15.40-P-5710QB Remove/install
alternator
belt pulley
Component Identification:

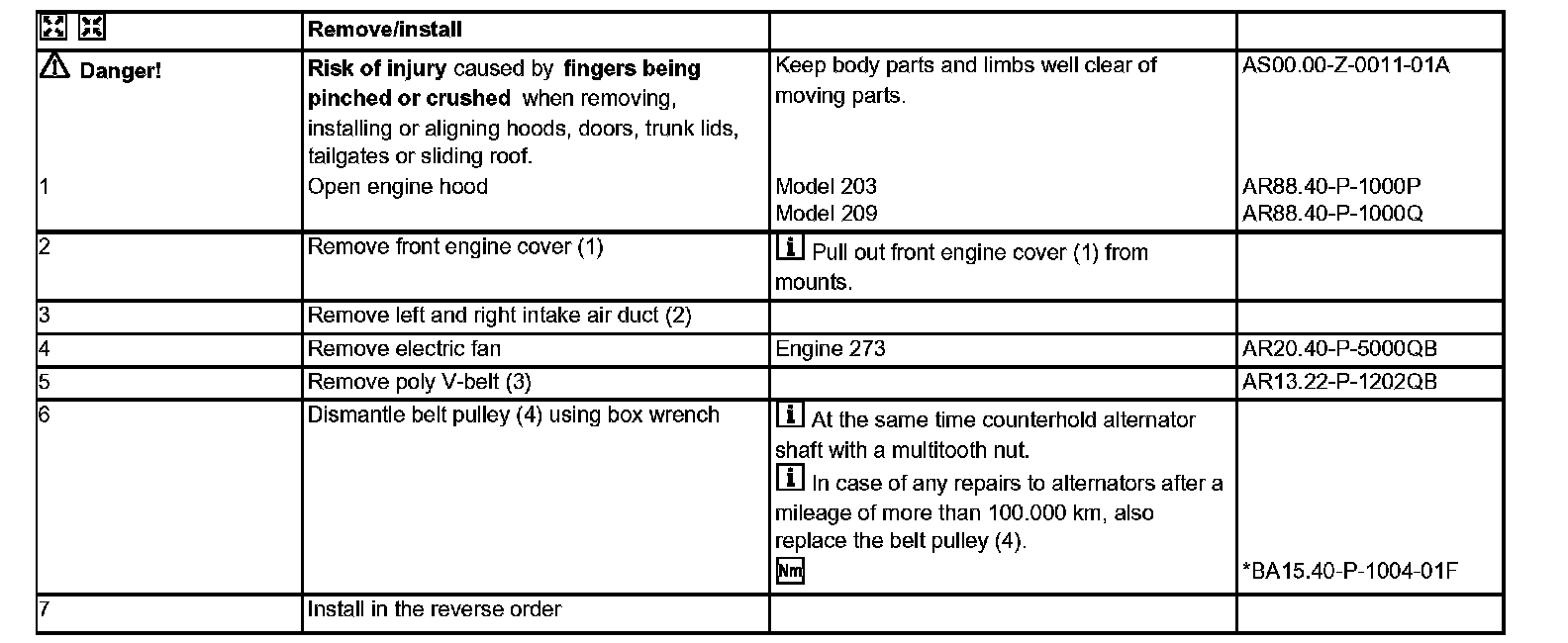

Remove/install Steps 1-7:

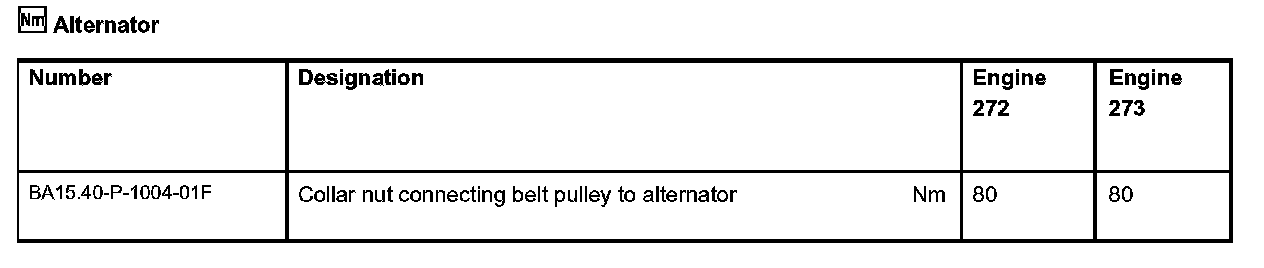

Alternator:
