Oil Separator: Service and Repair
AR01.20-P-9750QB Remove/install
oil separator

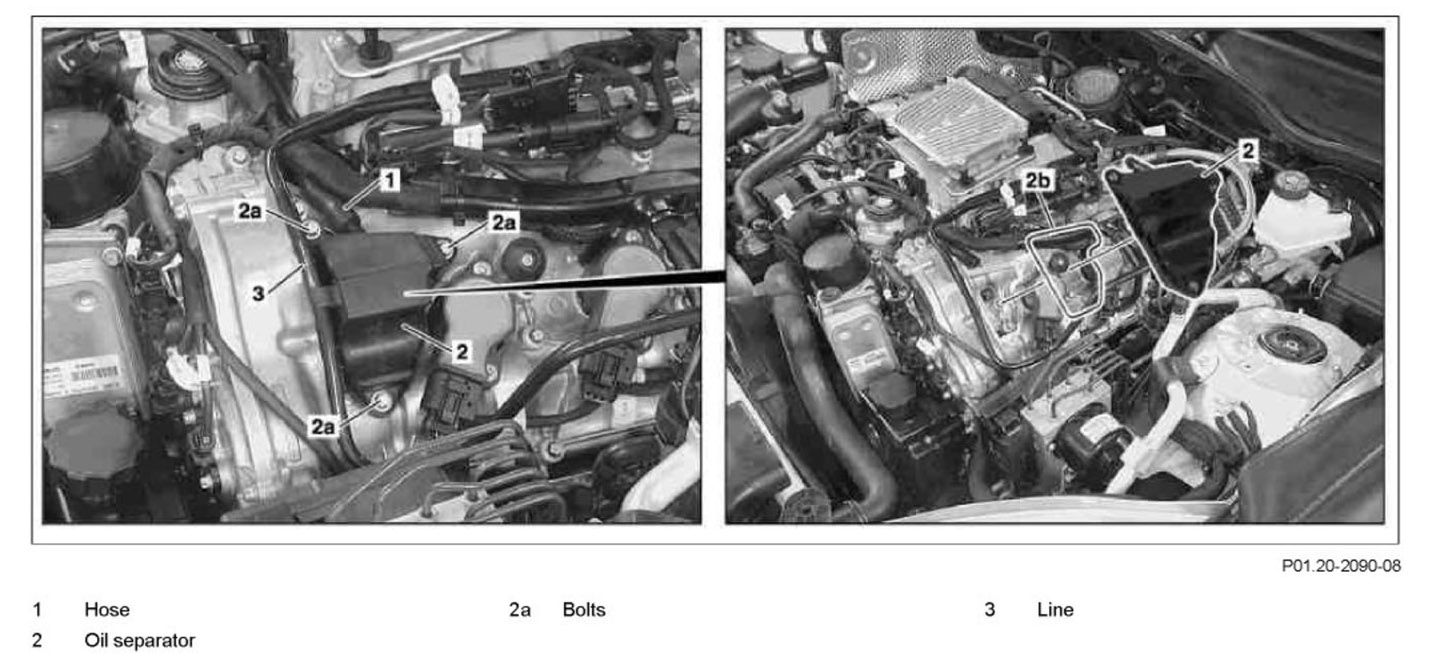

Component Identification:

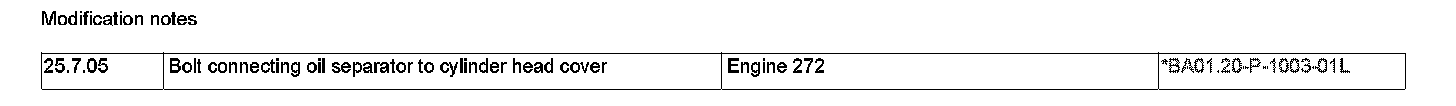

Modification Notes:

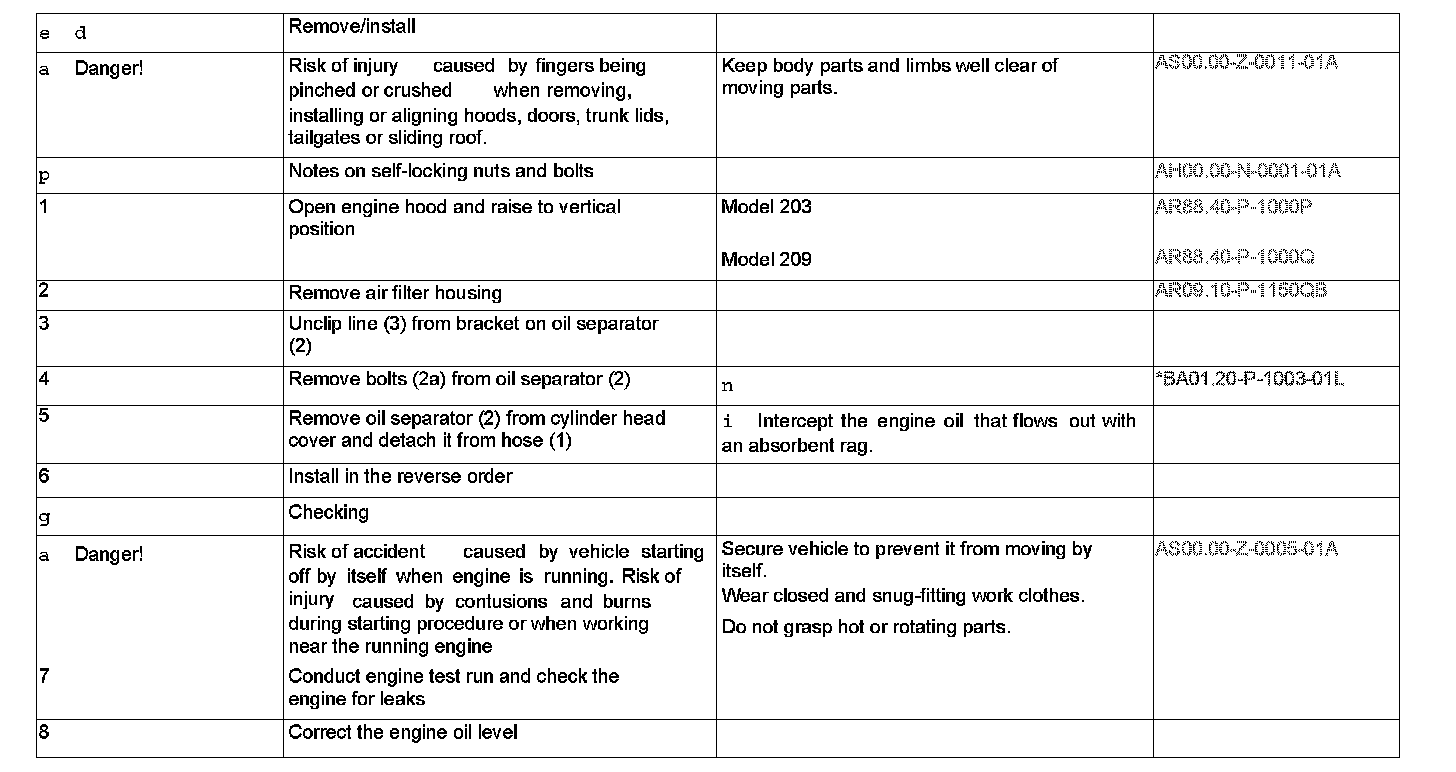

Steps 1 - 8:

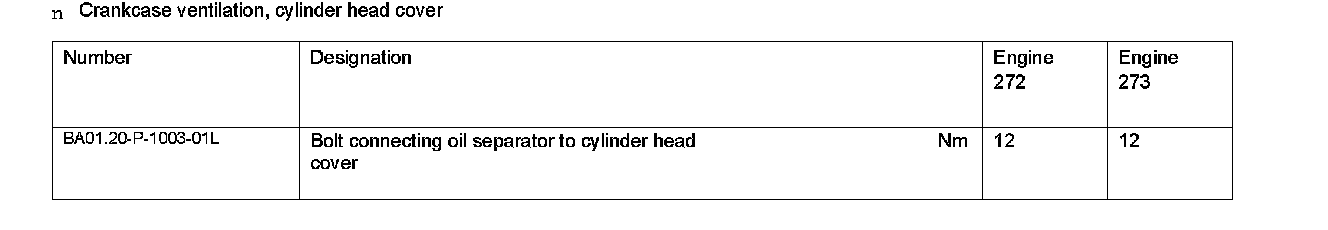

Crankcase Ventilation, Cylinder Head Cover:
