AR05.20-P-7295QC Remove/Install Solenoid Camshaft



AR05.20-P-7295QC Remove/install solenoid camshaft
- Camshaft solenoids in right cylinder head

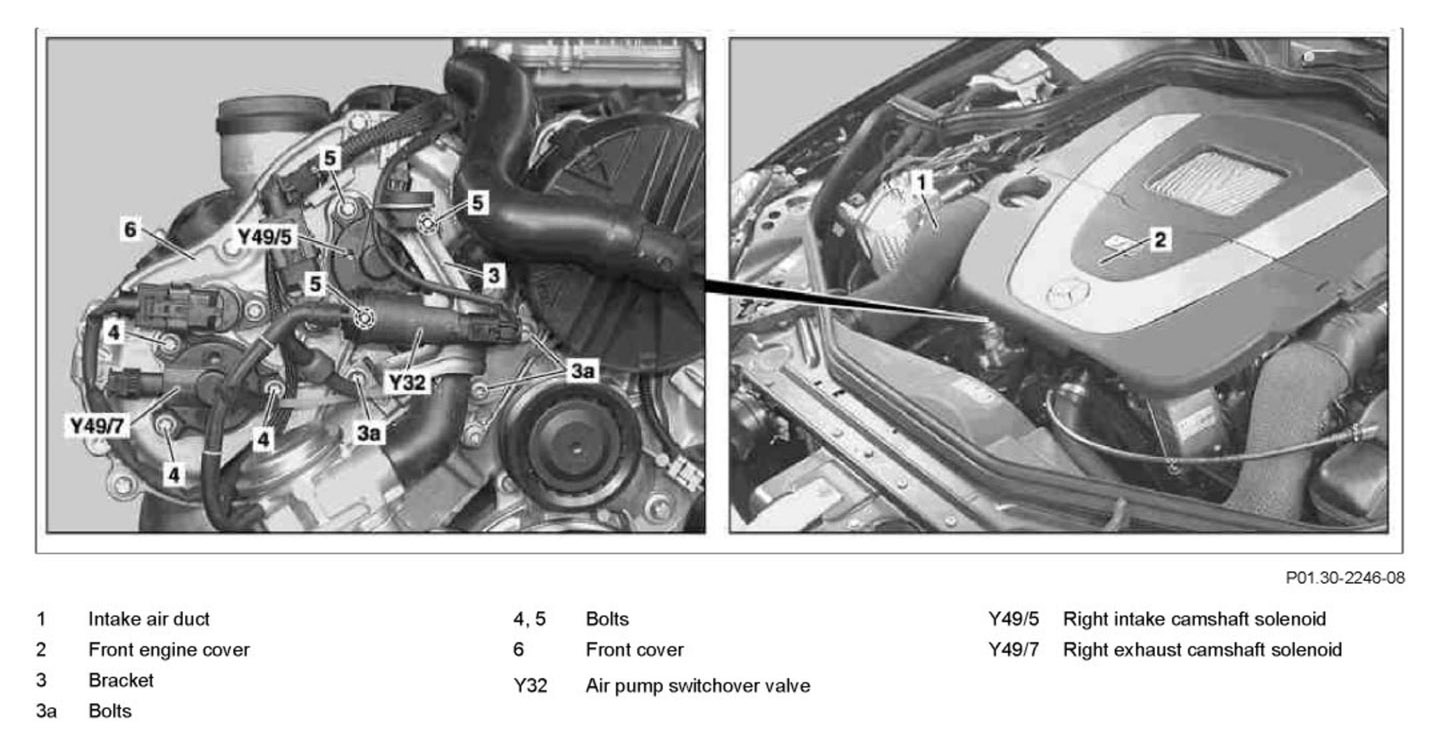

Component Identification:

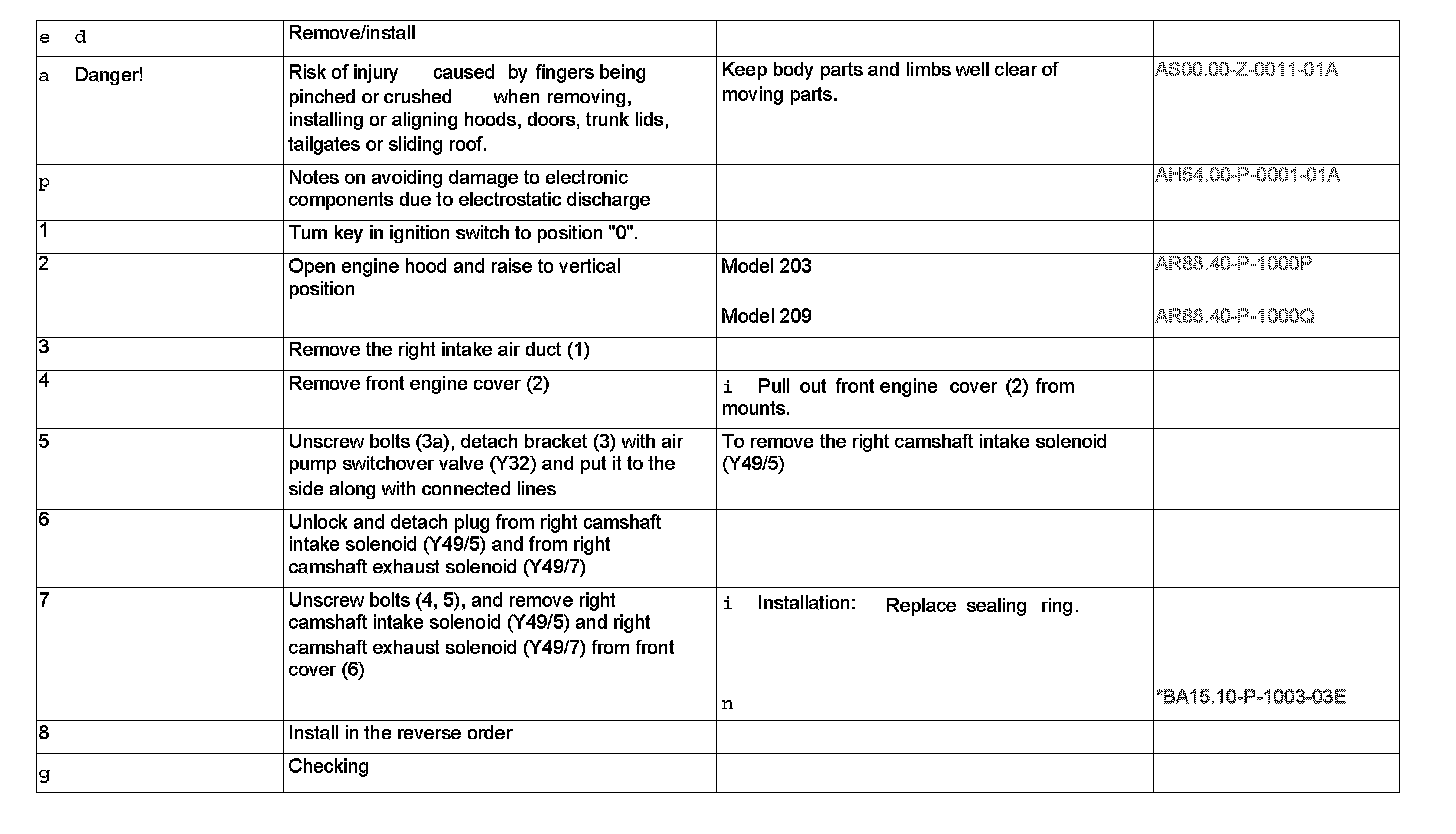

Steps 1 - 8:

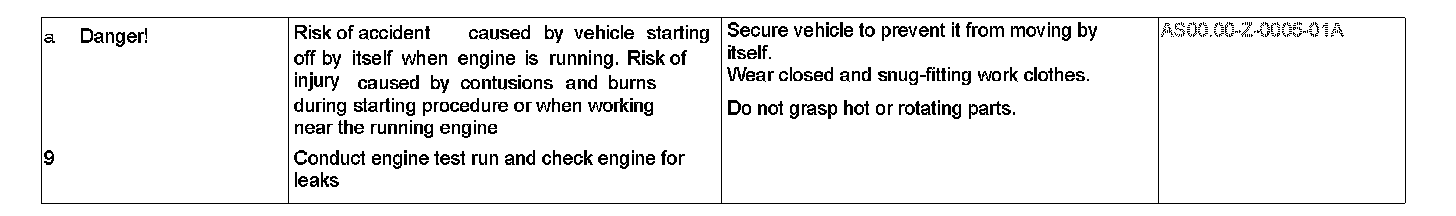

Step 9:

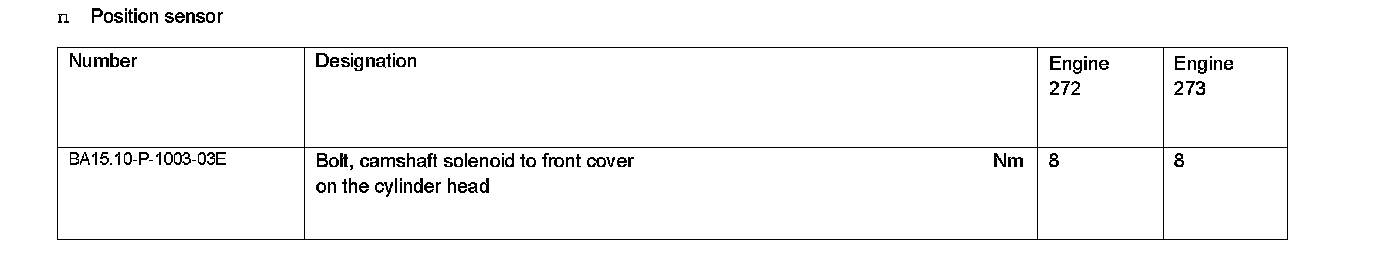

Position Sensor:
