AR40.30-P-0451C Measuring Steering Knuckle (Removed)



AR40.30-P-0451C Measuring steering knuckle (removed)
- except CODE (P98) Black Series [Model 209.3]

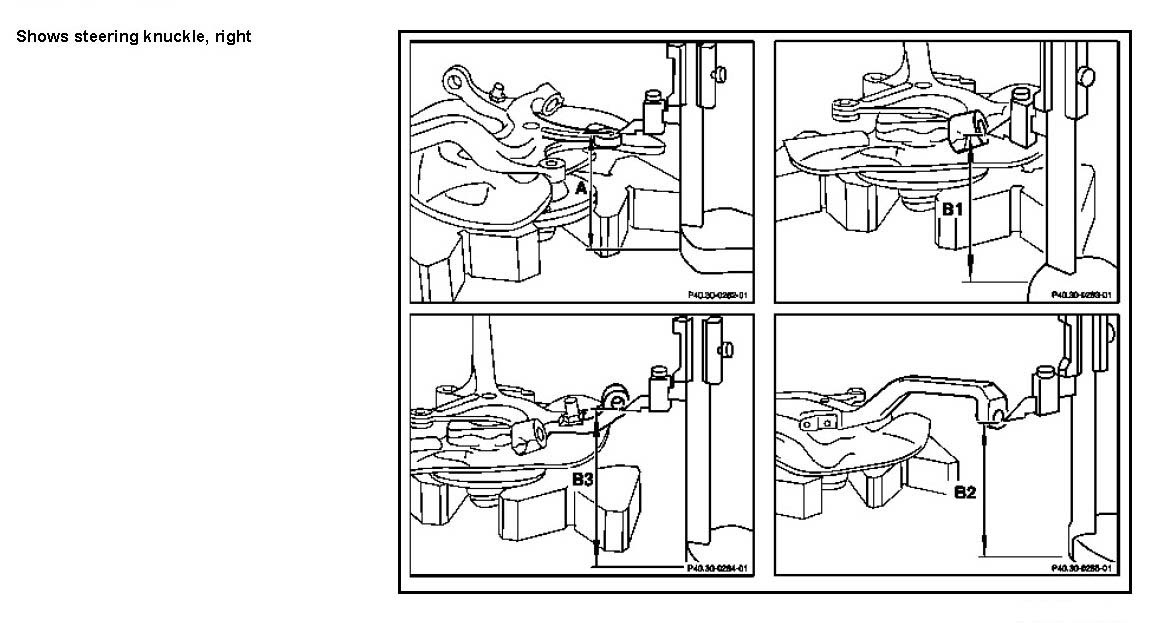

Component Identification:

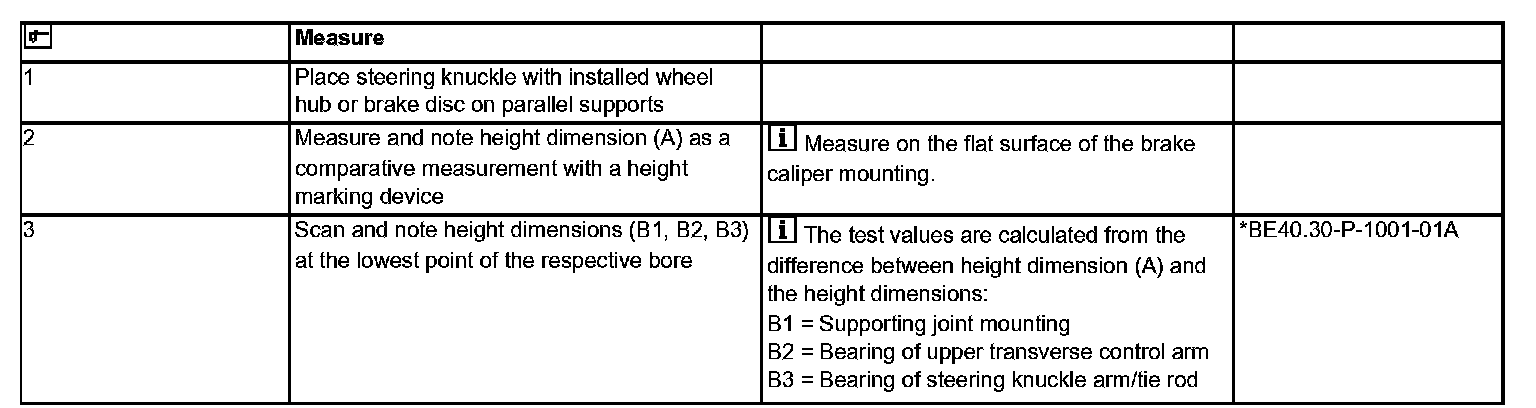

Steps 1-3:

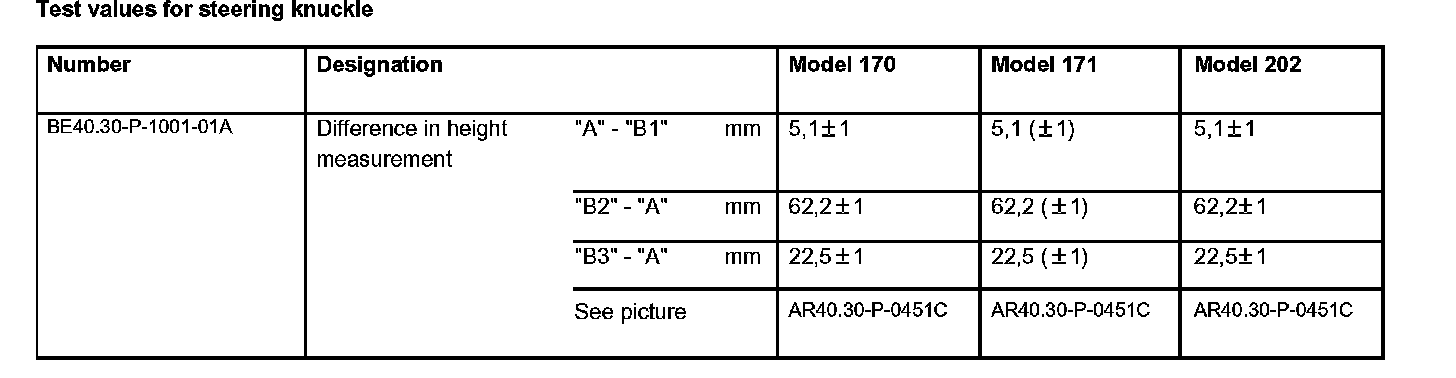

Test values for steering knuckle:

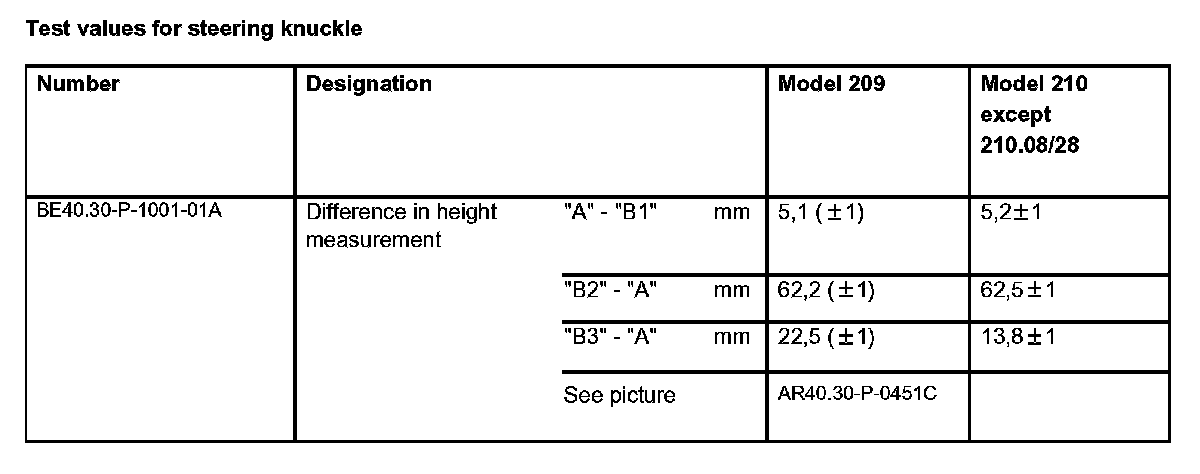

Test values for steering knuckle:

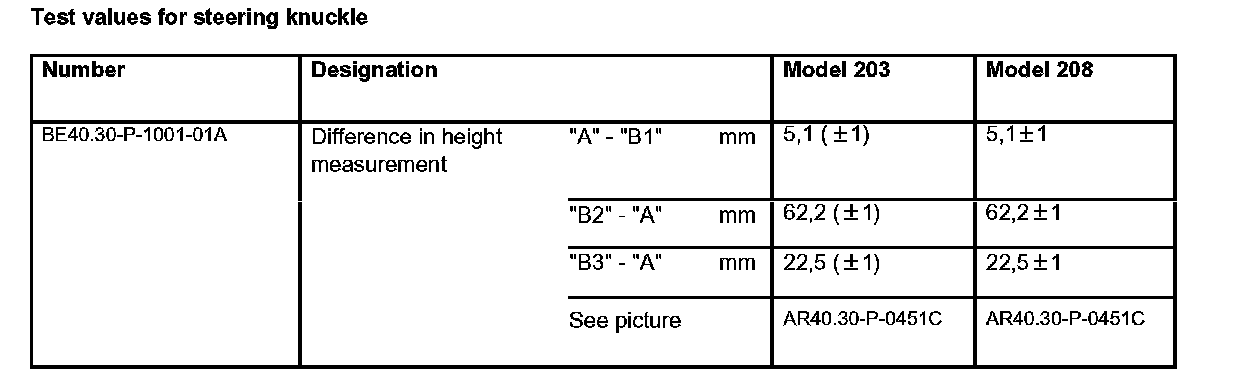

Test values for steering knuckle:
