Radiator: Service and Repair



AR20.20-P-3865QB Remove/install radiator

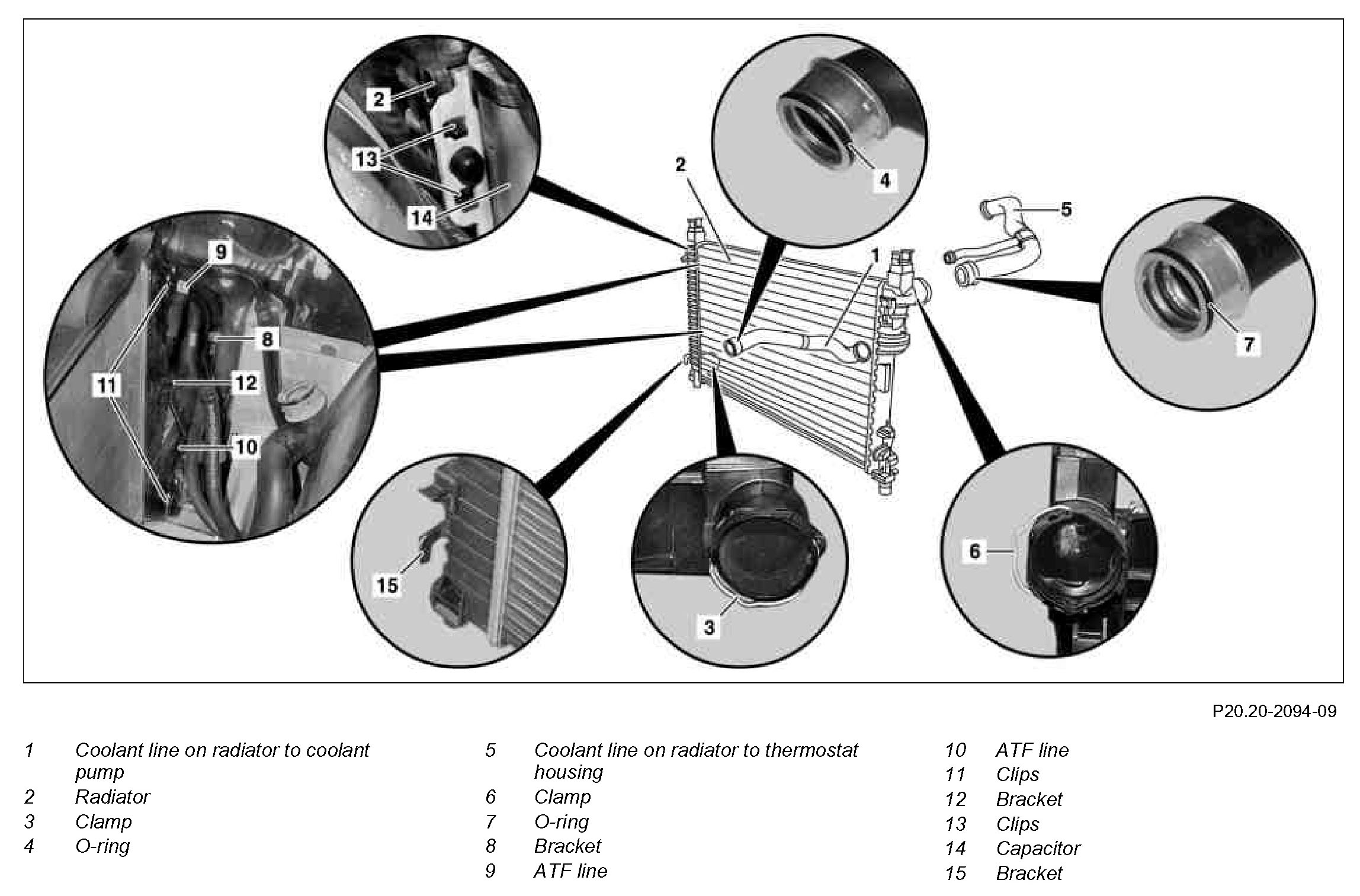

Component Identification:

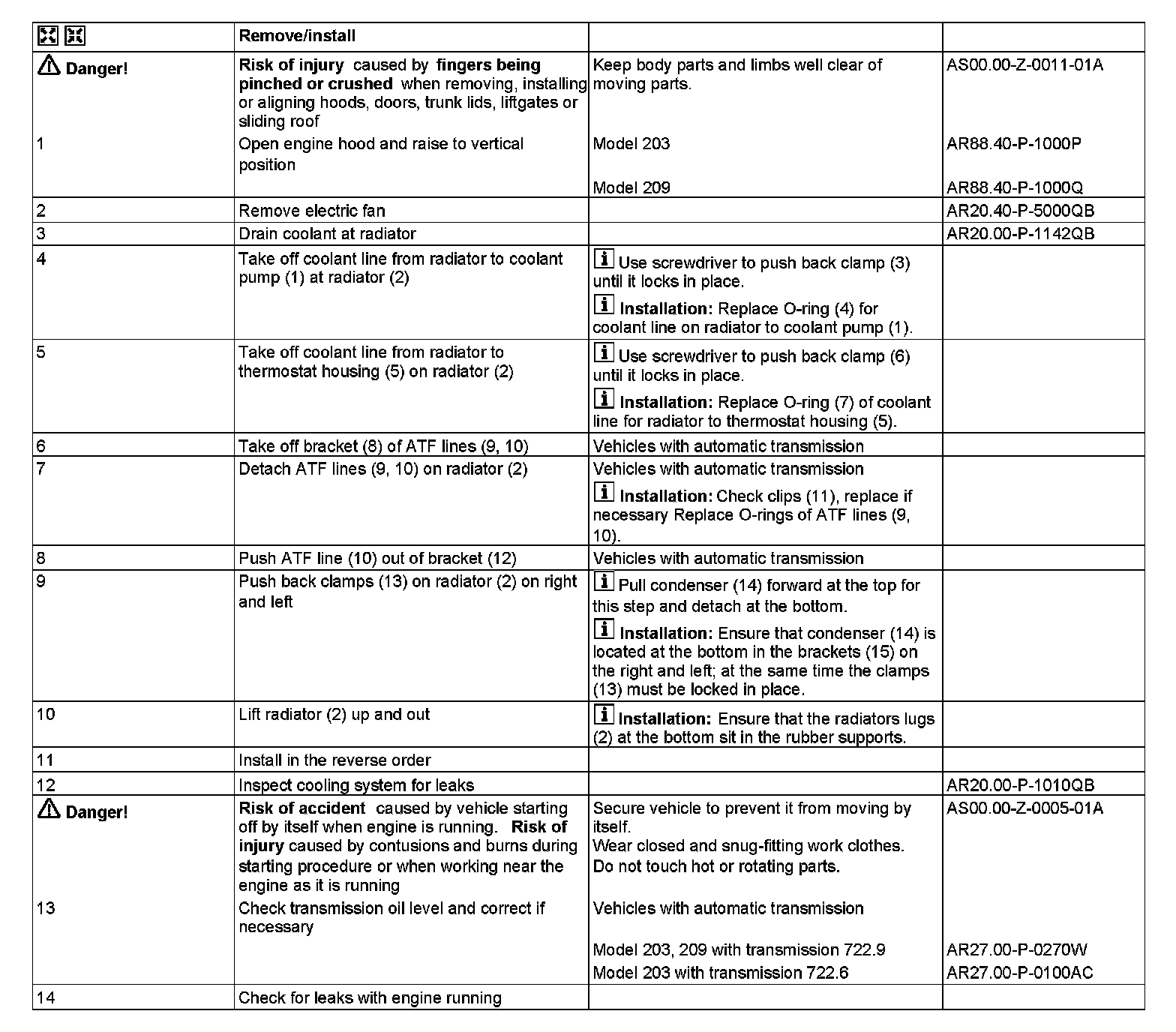

Steps 1-14:
