Heated Glass Element: Diagrams

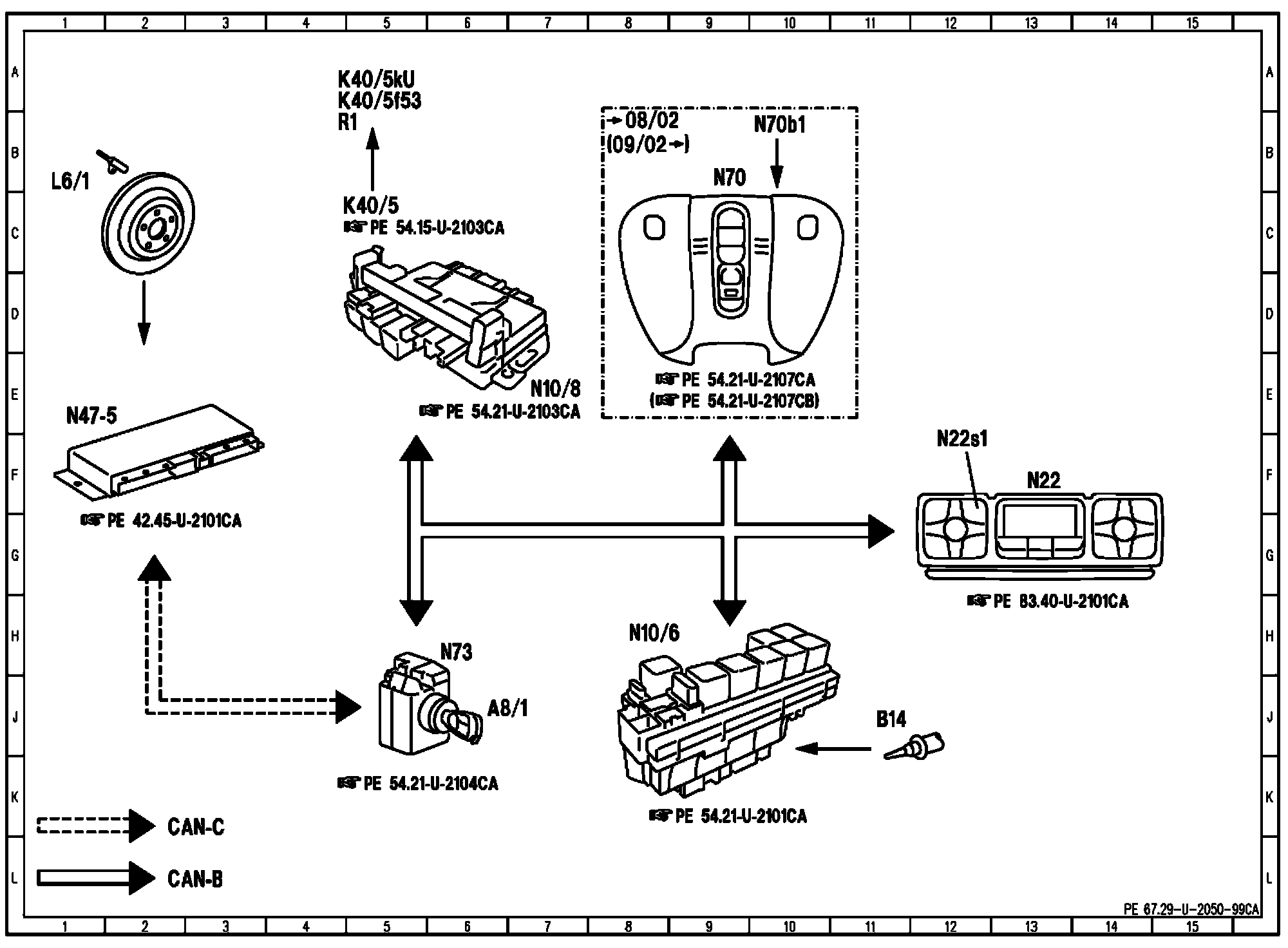

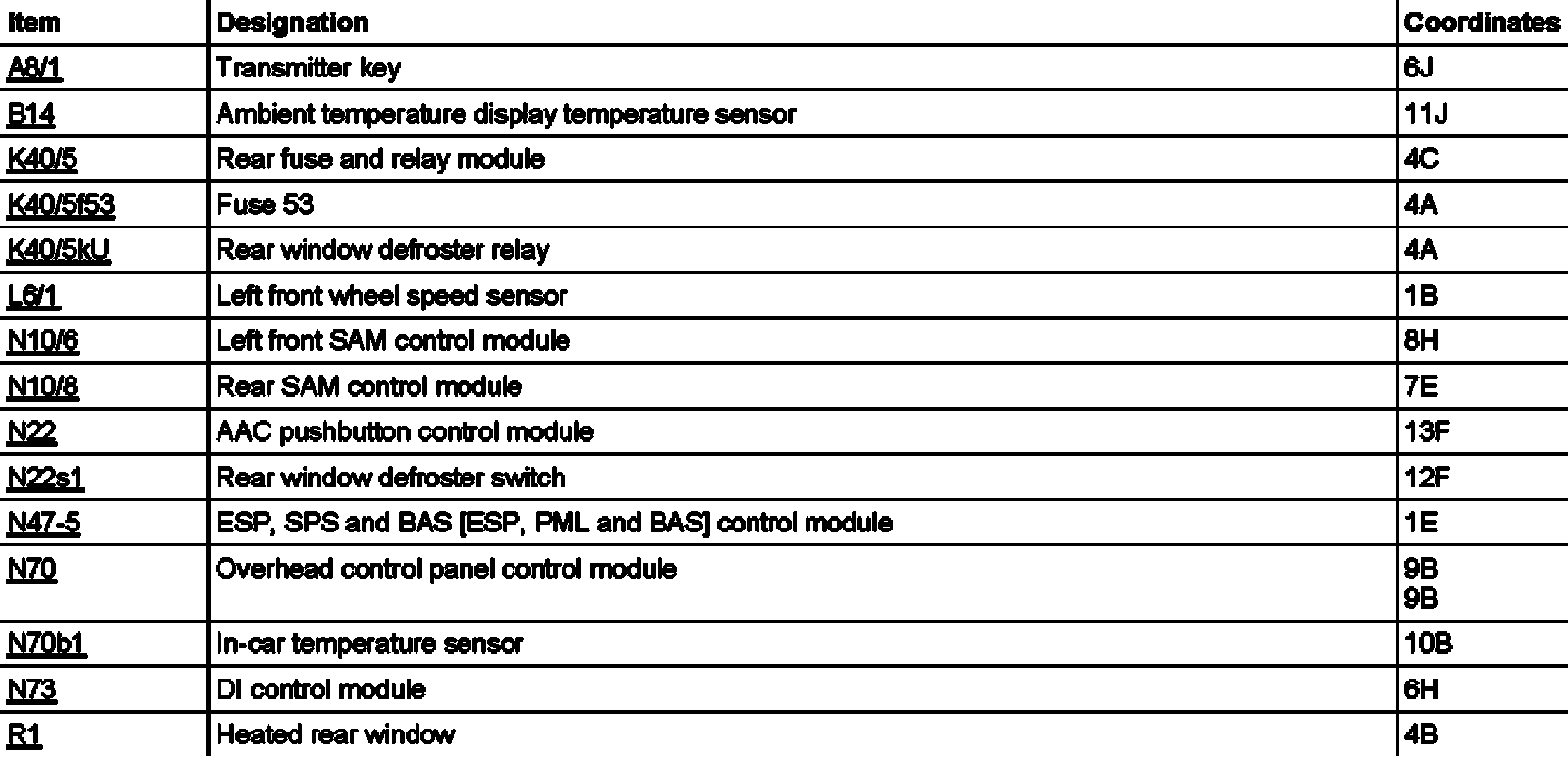

PE67.29-U-2050CA Function Schematic For Heated Rear Window Electrical System
