Drive Belt: Testing and Inspection

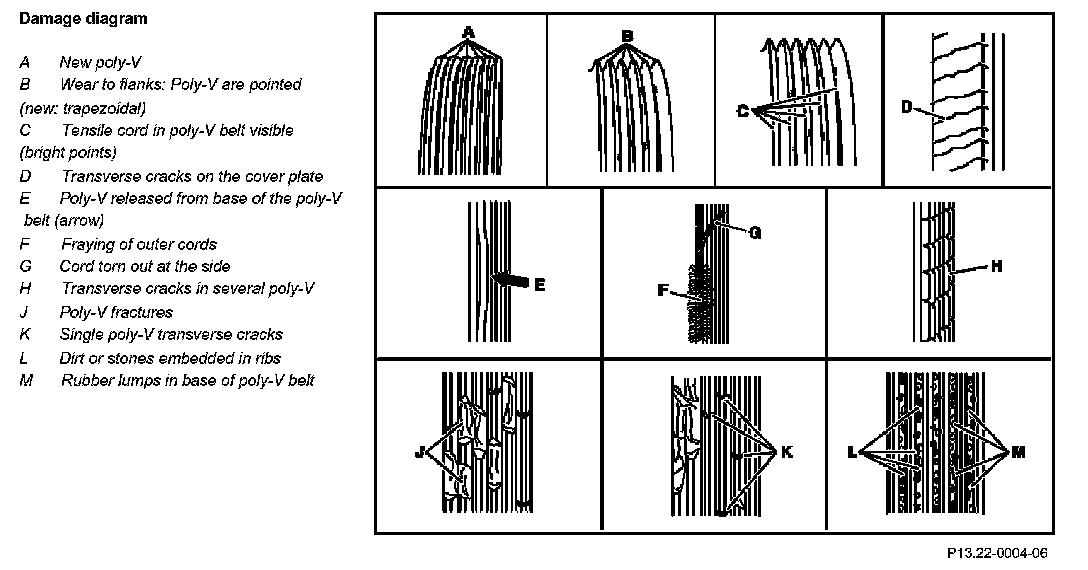

AP13.22-P-1352Z Check Visible Area Of Poly-V Belt For Wear

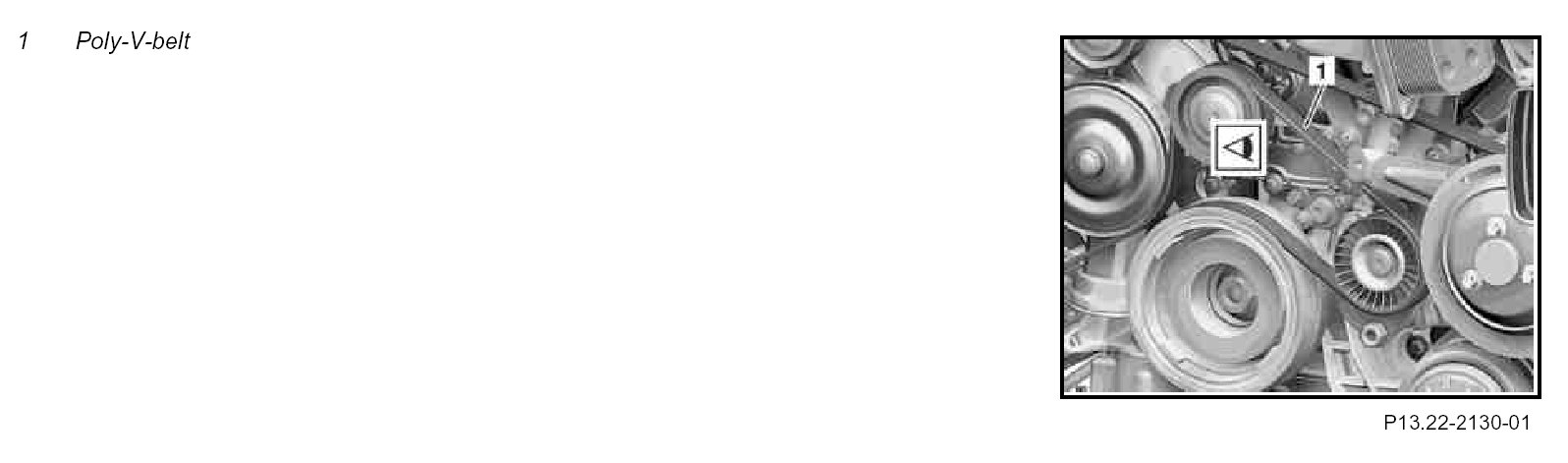

Component Identification:
Component Identification:

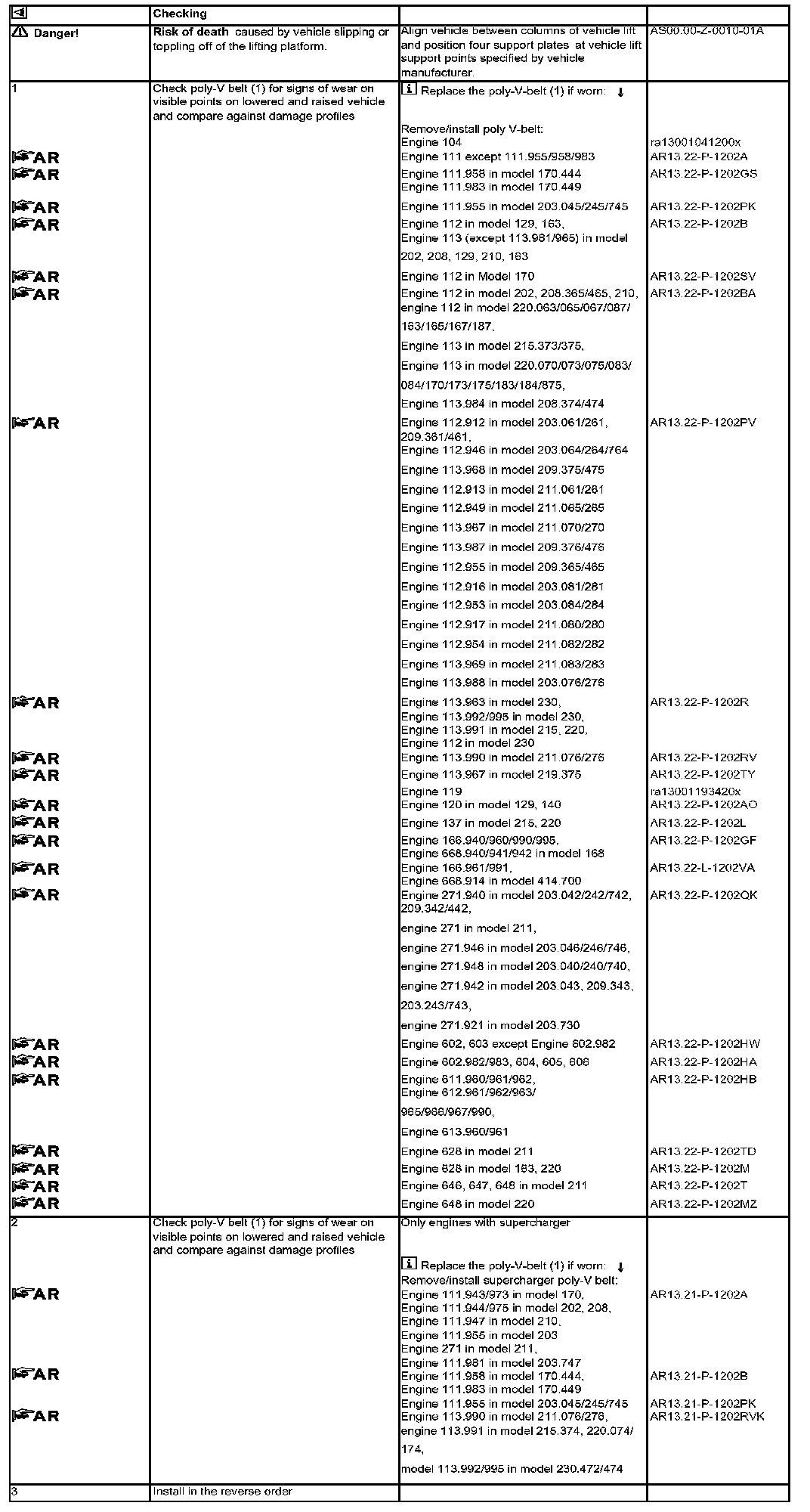

Steps 1 - 3:
