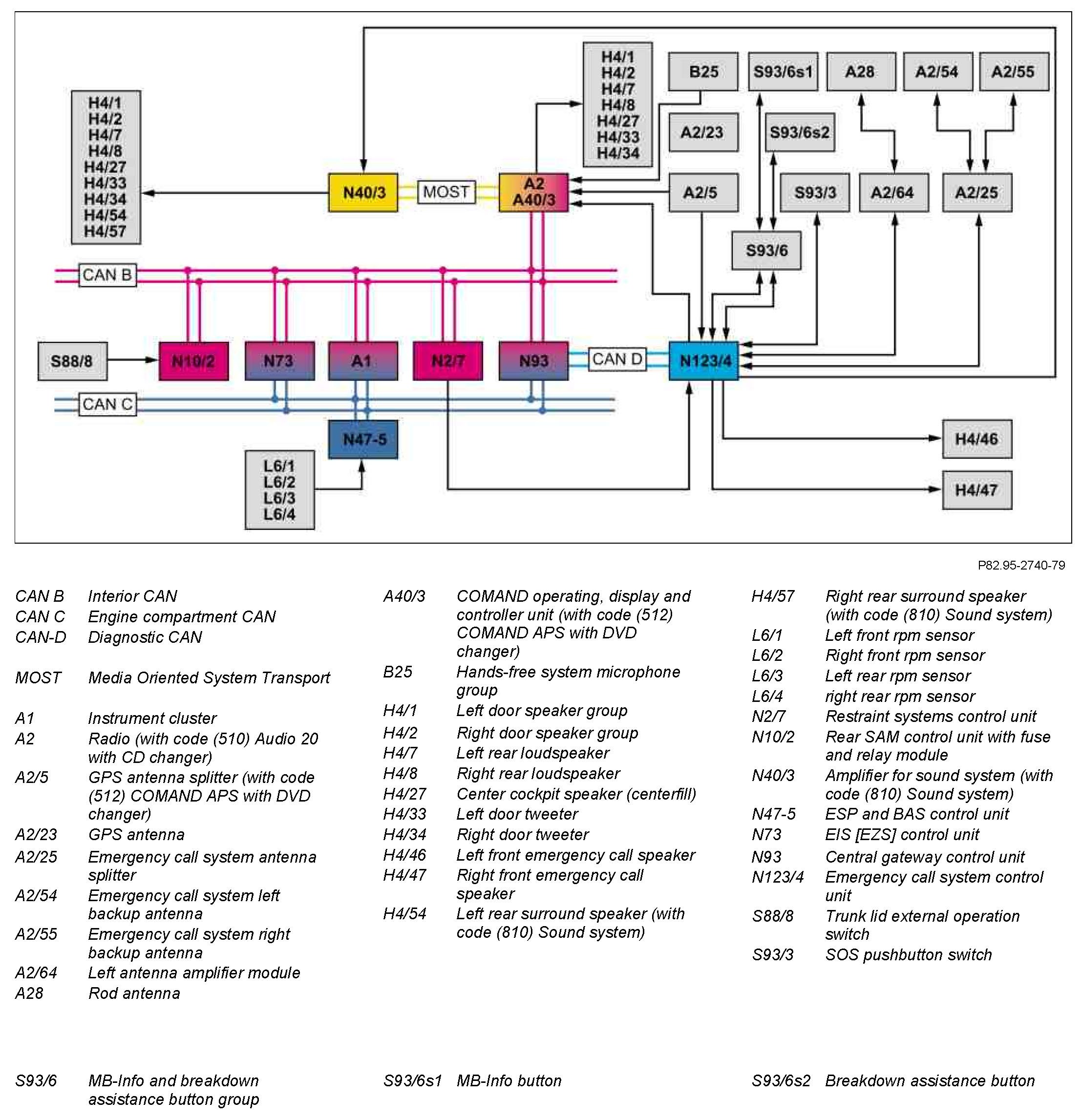

GF82.95-P-0004-02RCU Emergency Call System Block Diagram



GF82.95-P-0004-02RCU Emergency Call System Block Diagram
- with CODE (359) TELE AID emergency call system


Component Identification:
