AZ86.61-P-0001A Retrofitting Refrigerator In Luggage Compartment



AZ86.61-P-0001A Retrofitting Refrigerator In Luggage Compartment

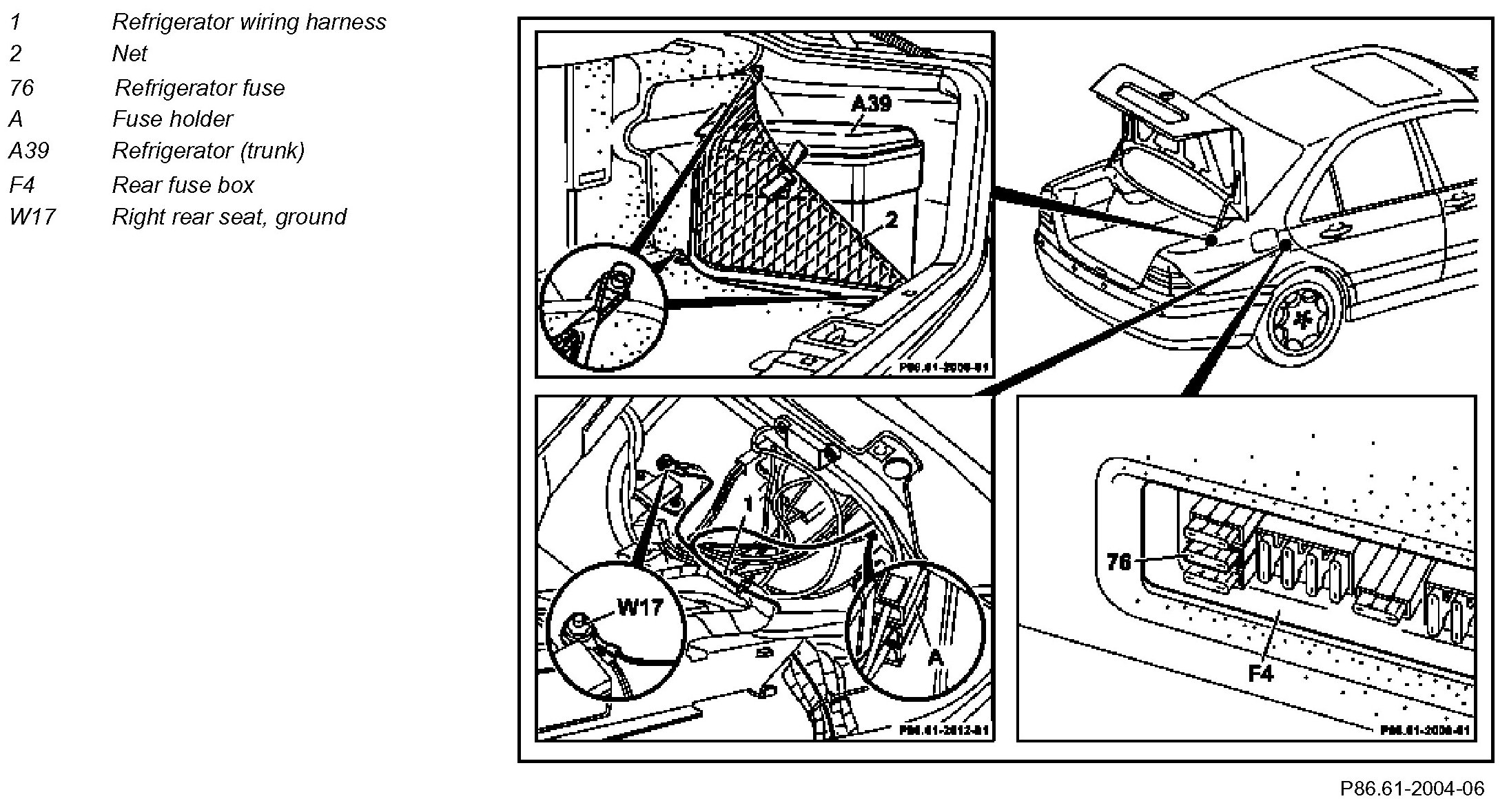

Component Identification:

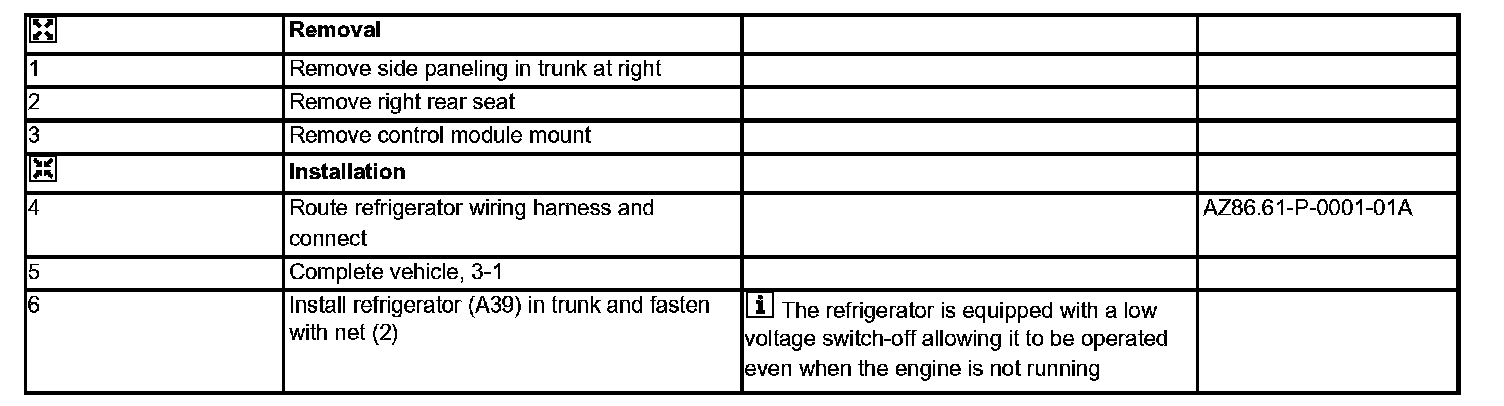

Steps 1 - 6:




Parts Ordering Notes:
