Alternator Pulley / Clutch: Service and Repair



AR15.40-P-5710IA Remove/Install Alternator Belt Pulley

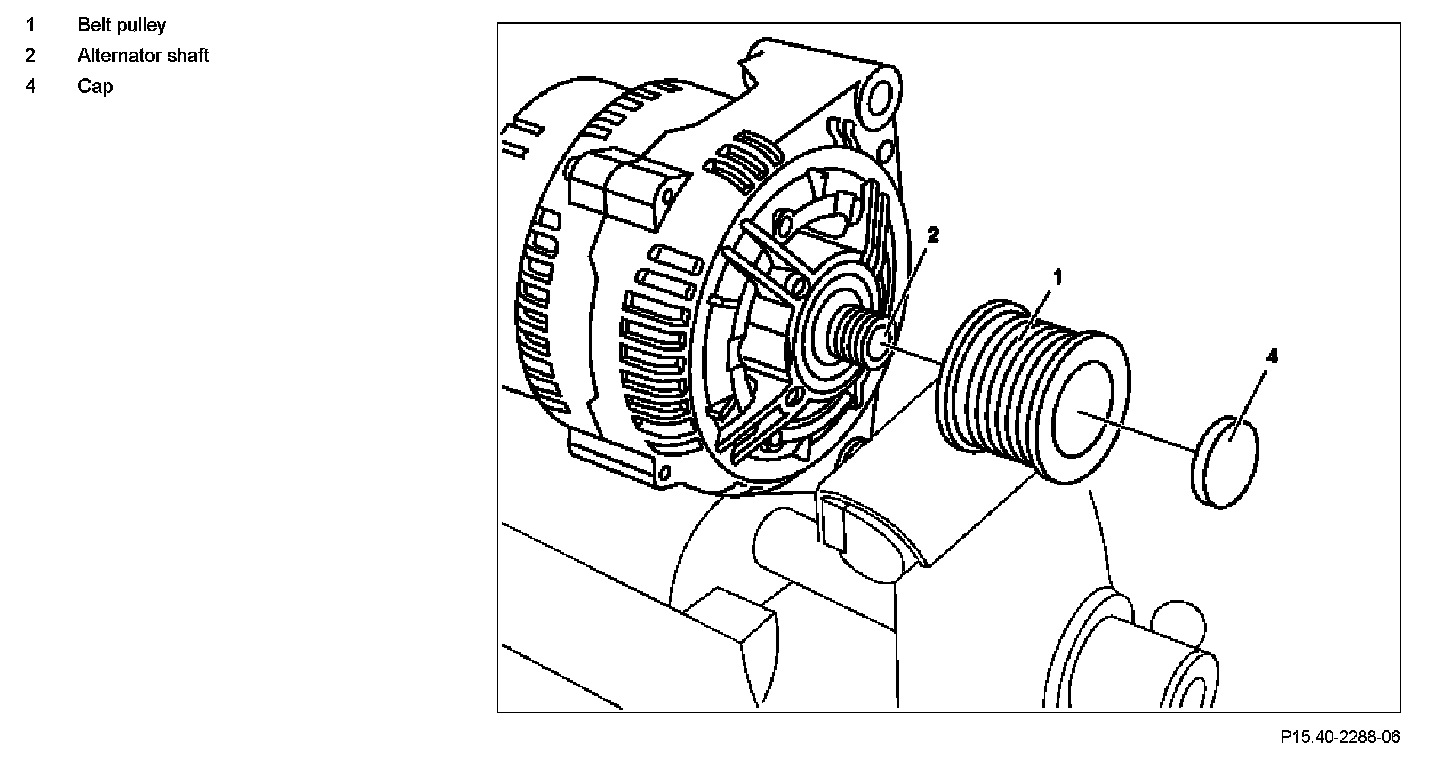

Component Identification:

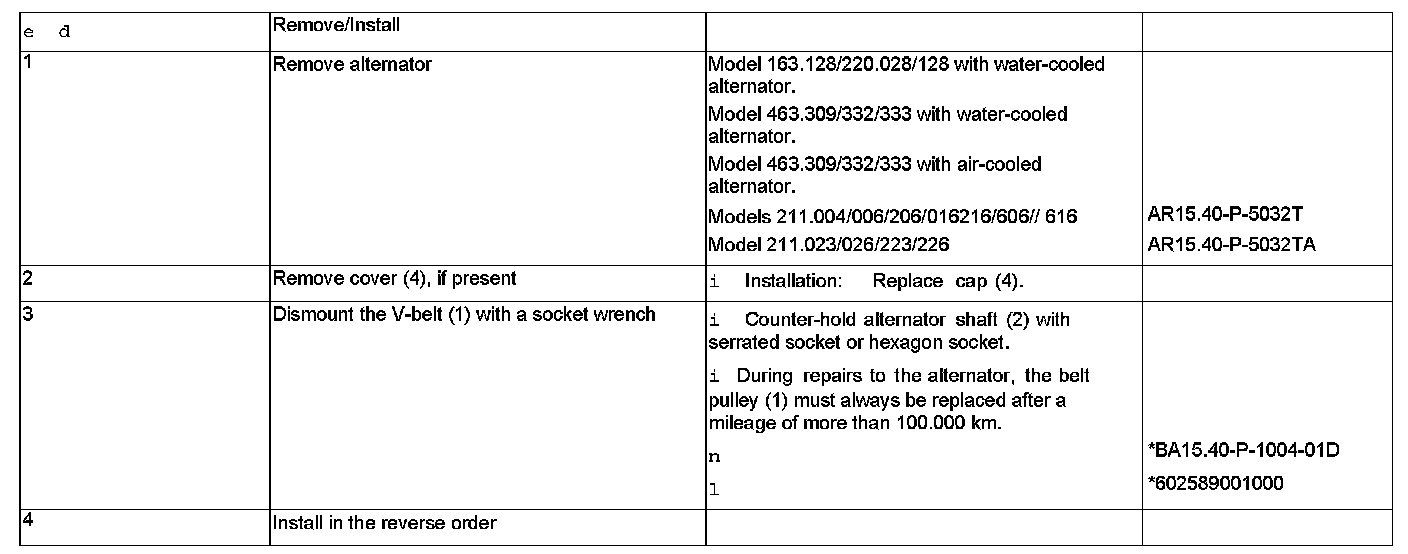

Steps 1 - 4:

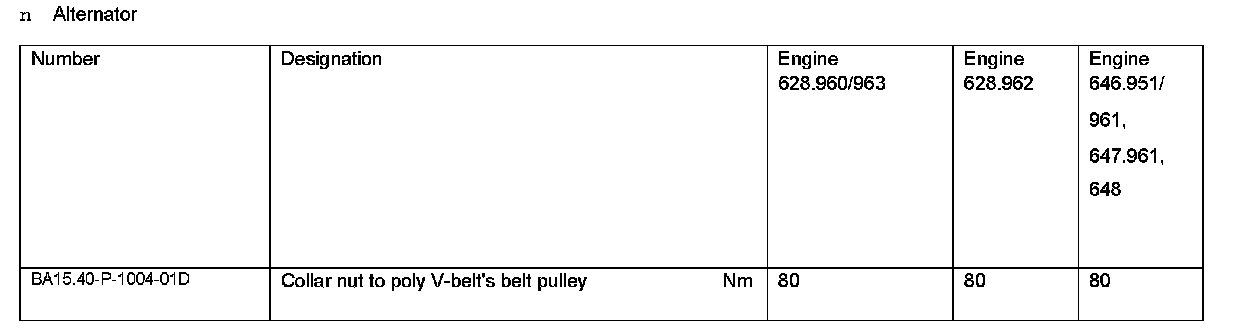

Alternator:







Alternator:

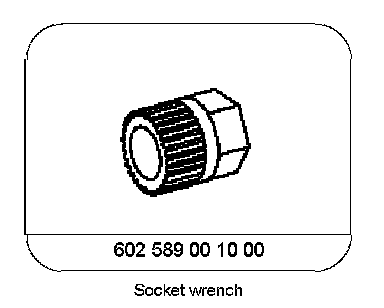

Special Tools:
