AR15.20-P-4112P Redrill broken glow plugs

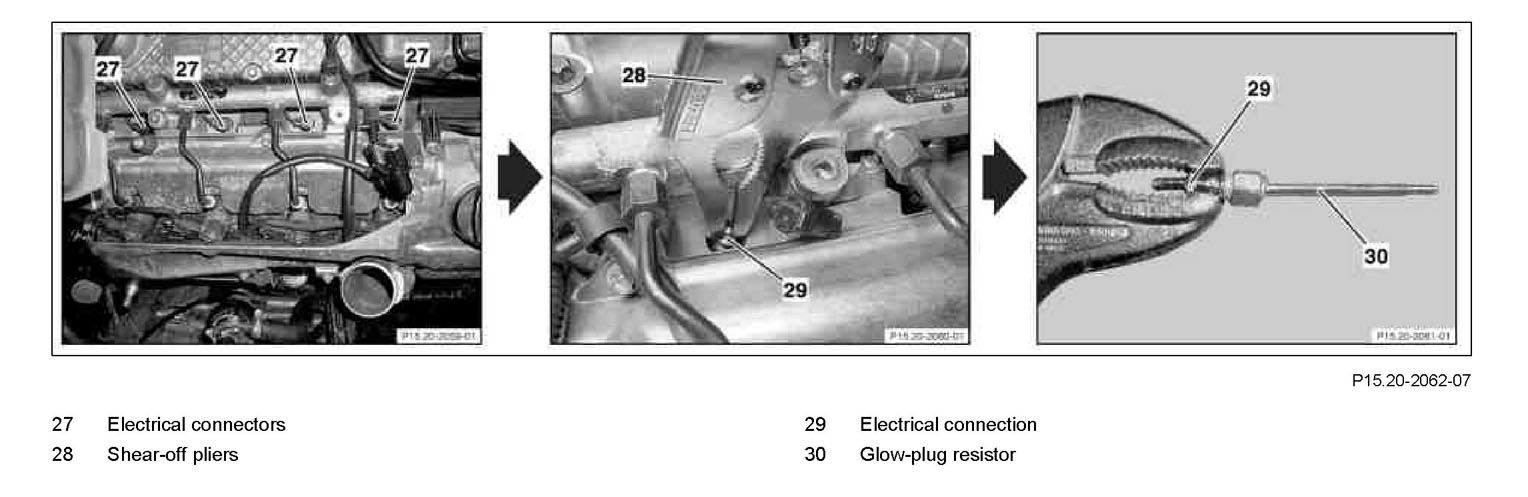

Component Identification:

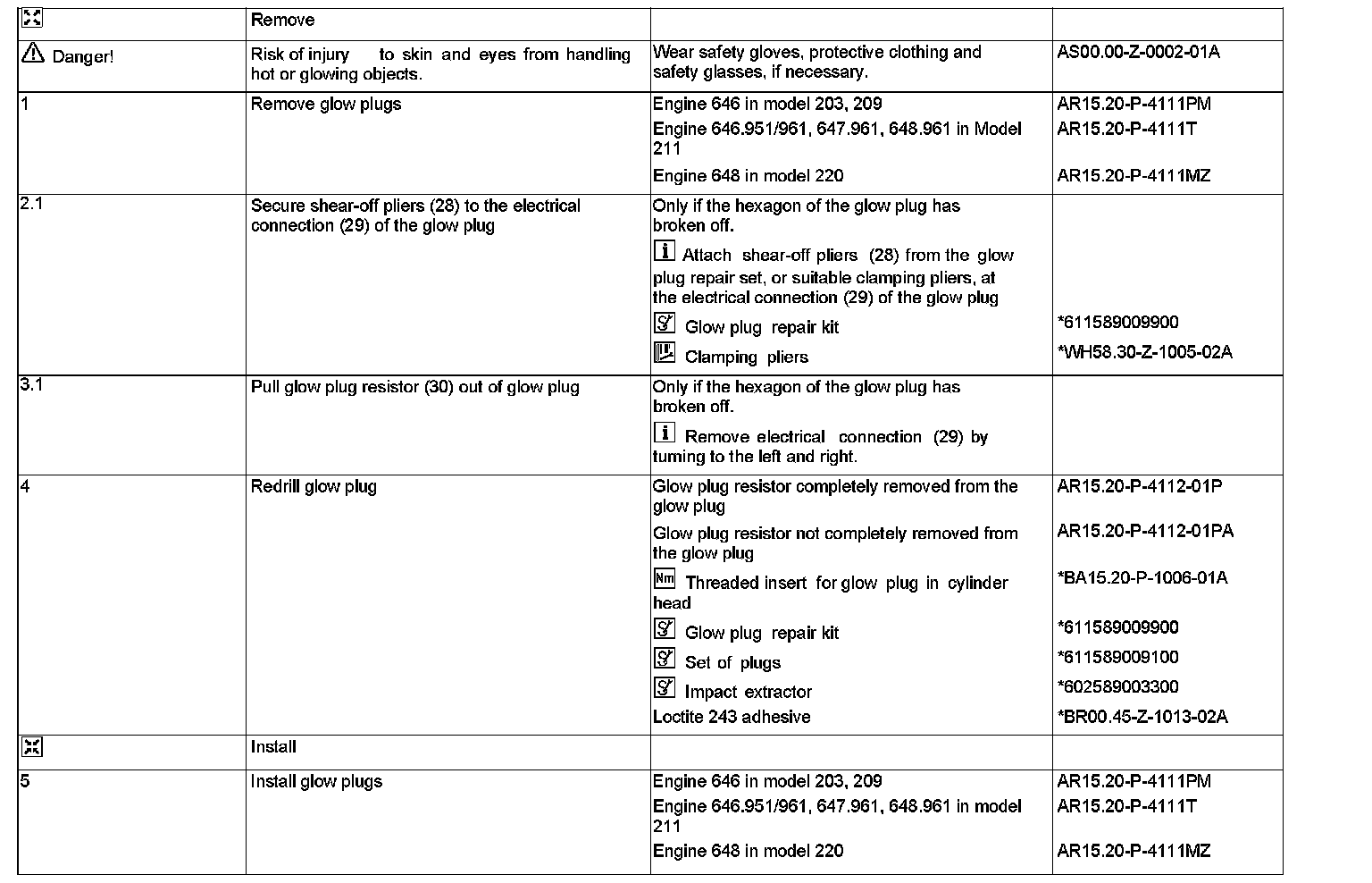

Steps 1-5:

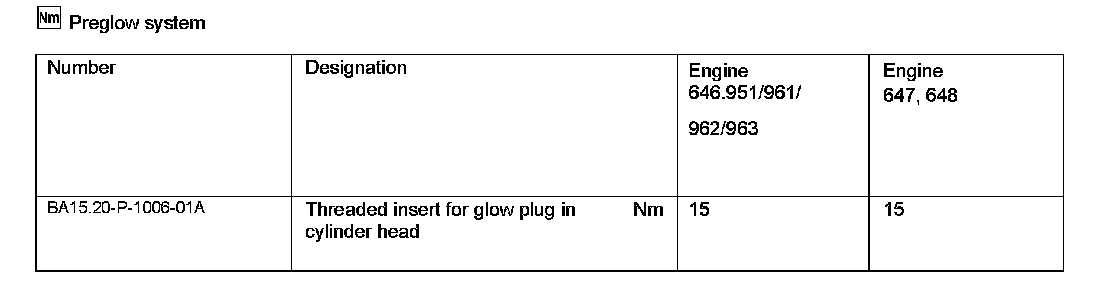

Preglow System:

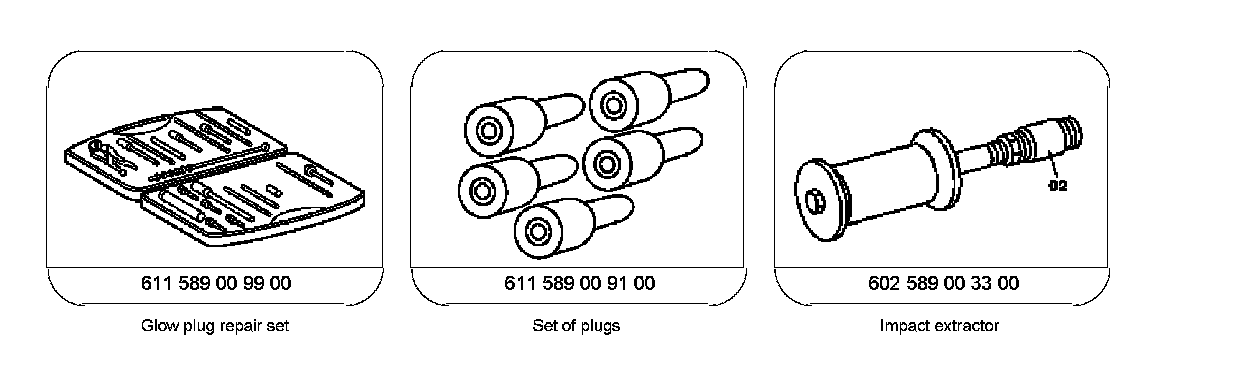

Special Tools:

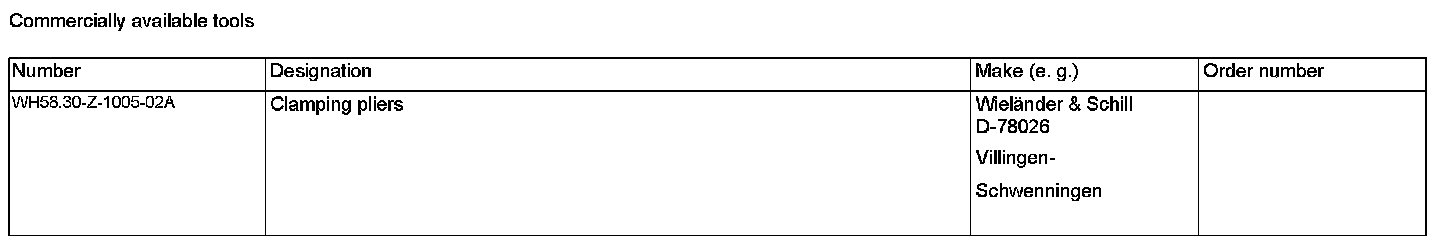

Commercially Available Tools:

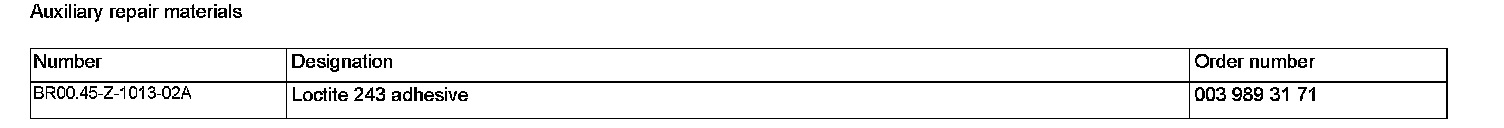

Auxiliary Repair Materials:
