Transmission Mount: Service and Repair



AR22.10-P-1160TW Remove/install rear engine mount

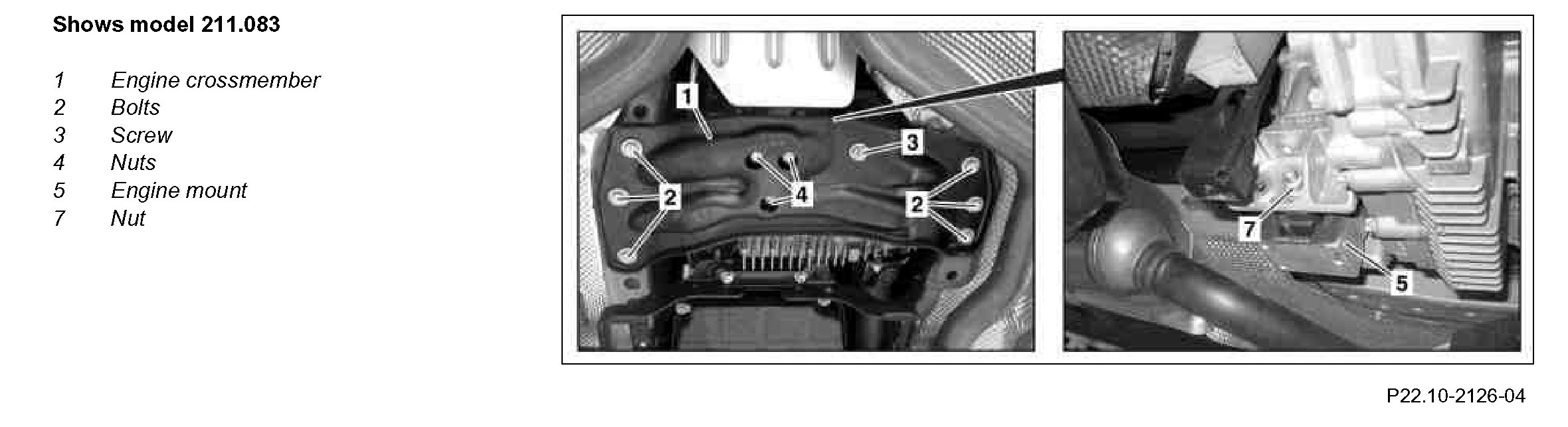

Component Identification:

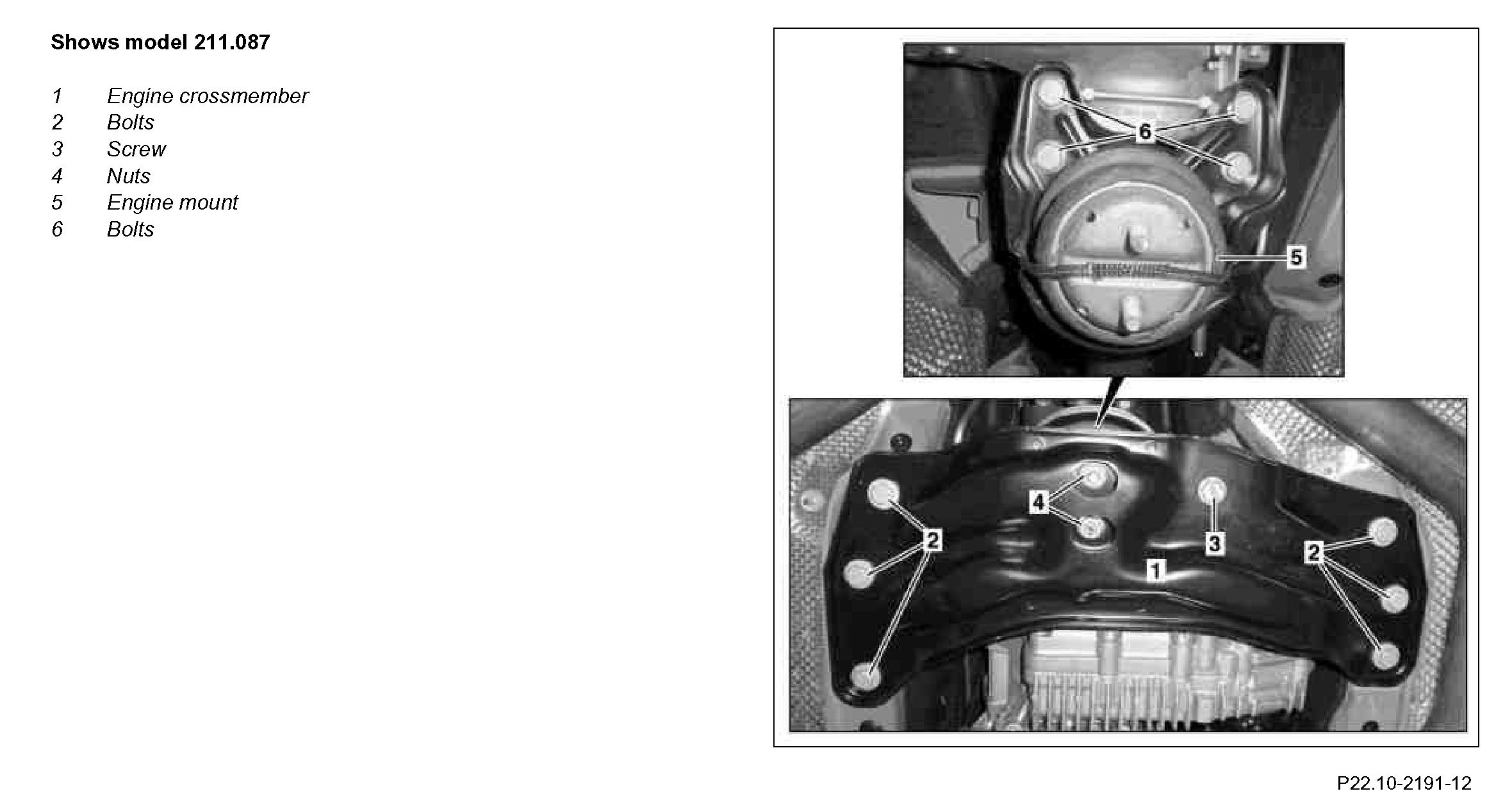

Component Identification:

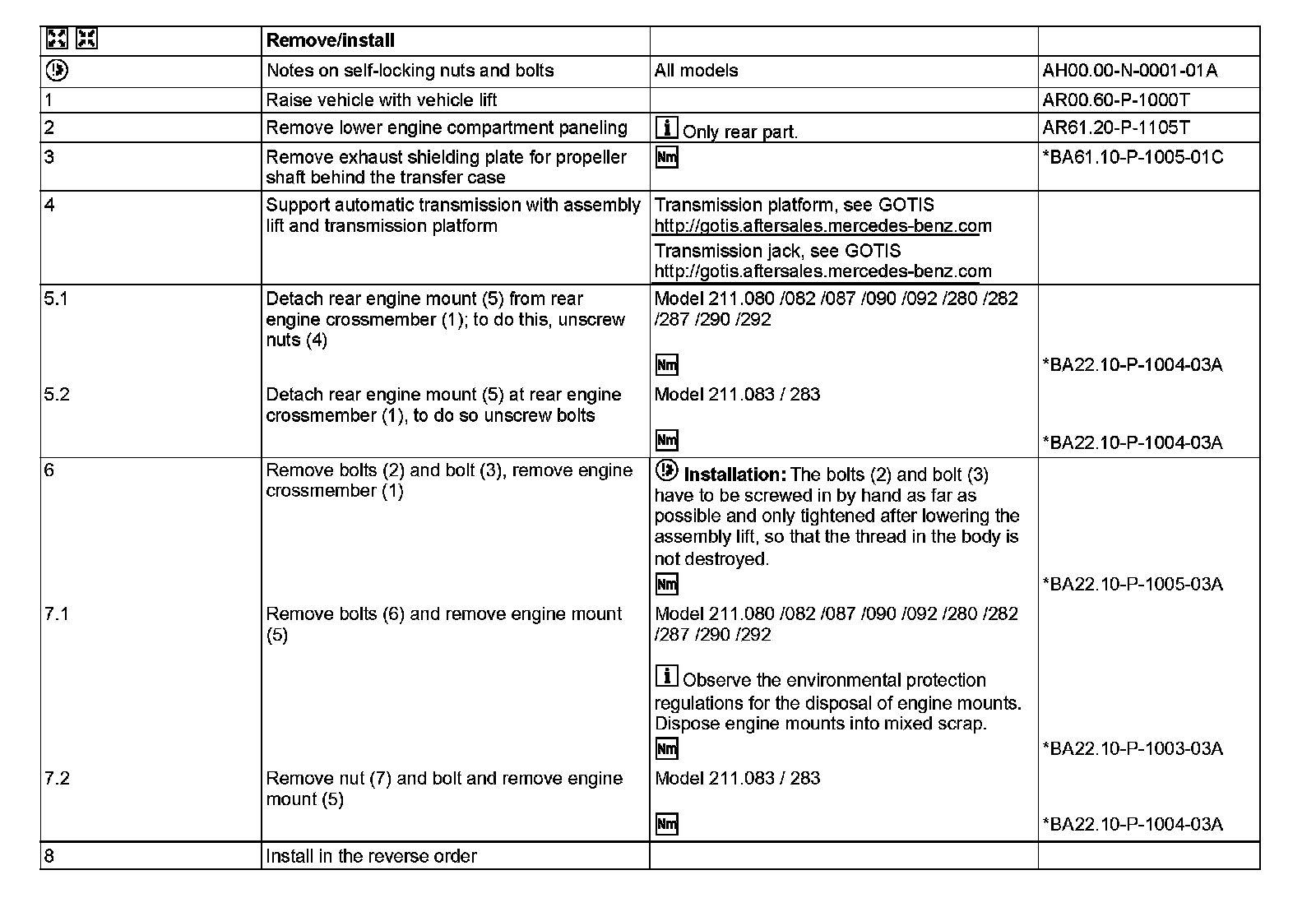

Steps 1-8:

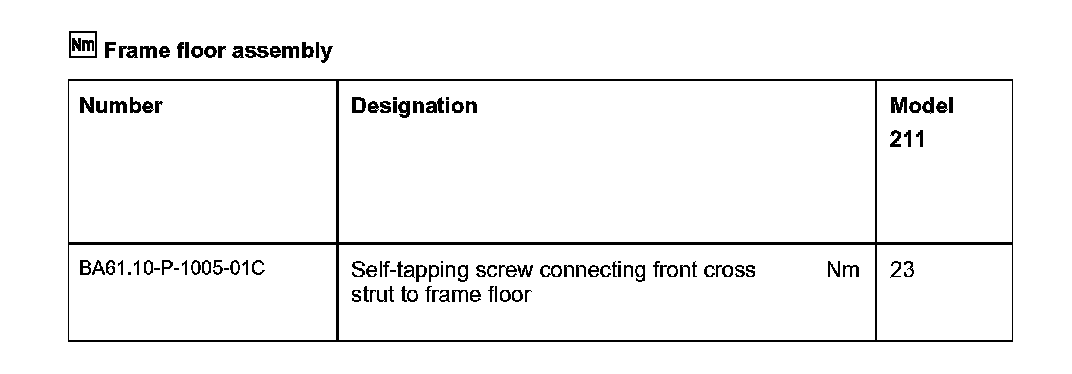

Frame floor assembly:

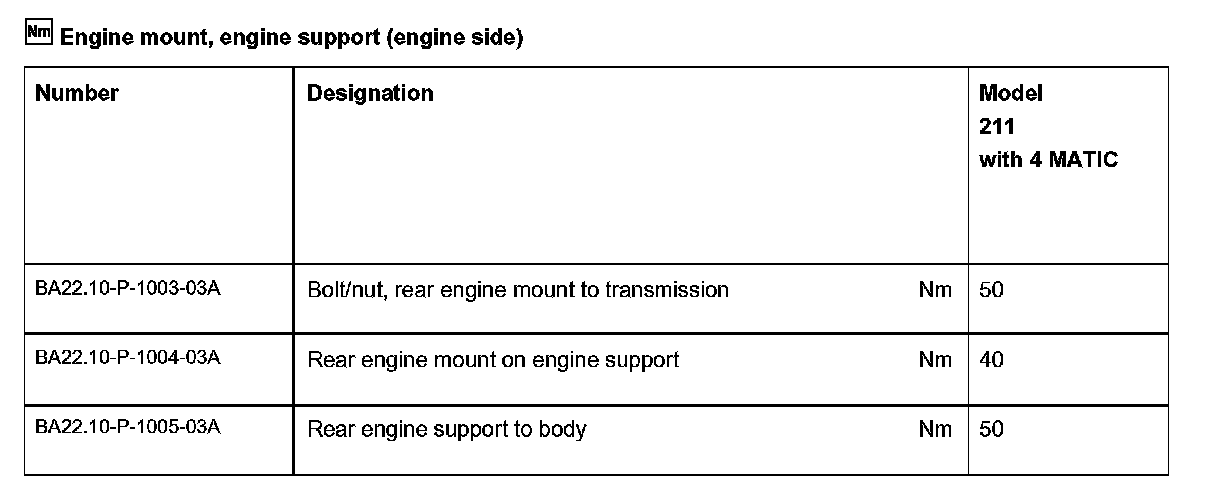

Engine mount, engine support (engine side):
