AR46.25-P-3015VB Remove/Install Hydraulic Line of Power Steering

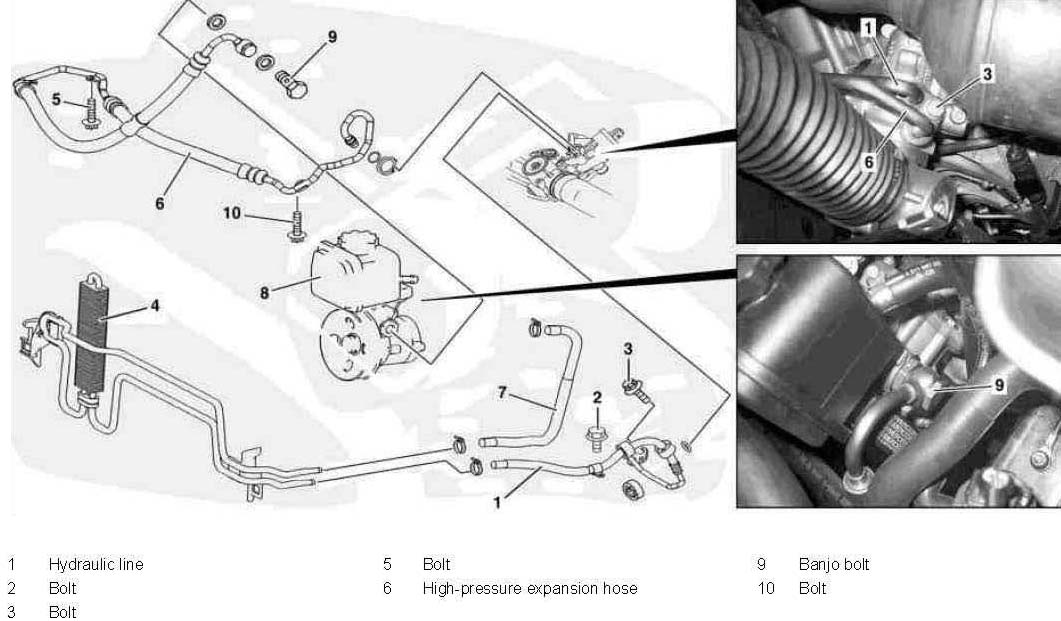

AR46.25-P-3015VB Removing and installing hydraulic line of power steering
- High pressure expansion hose

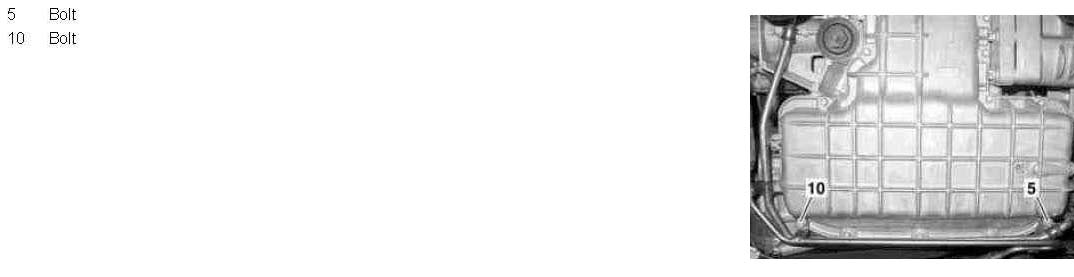

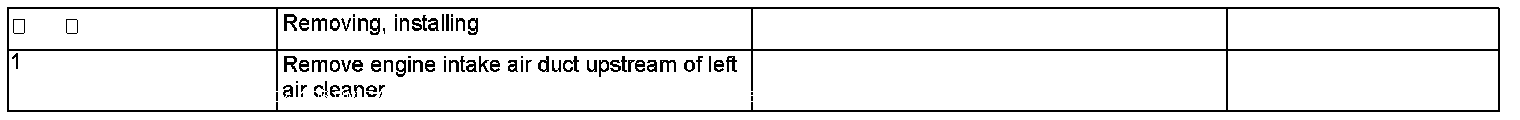

Step 1:

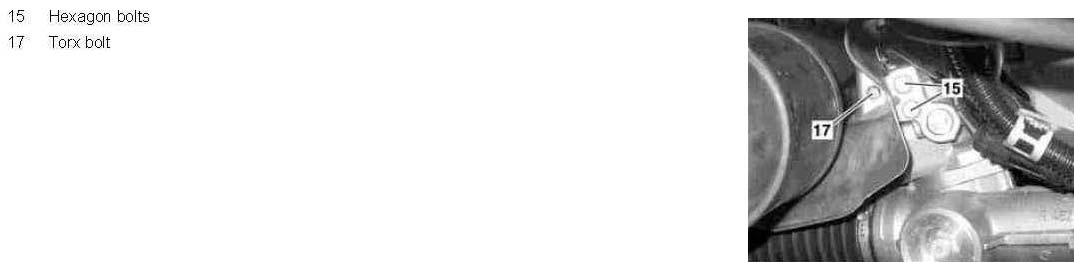

Steps 2-12:
