Home >> Mercedes Benz >> 2005 >> E 320 4MATIC Sedan (211.082) V6-3.2L (112.954) >> Repair and Diagnosis >> Maintenance >> Hoses >> Power Steering Line/Hose >> Service and Repair >> AR46.25-P-3015VA Remove/Install Hydraulic Line of Power Steering

AR46.25-P-3015VA Remove/Install Hydraulic Line of Power Steering

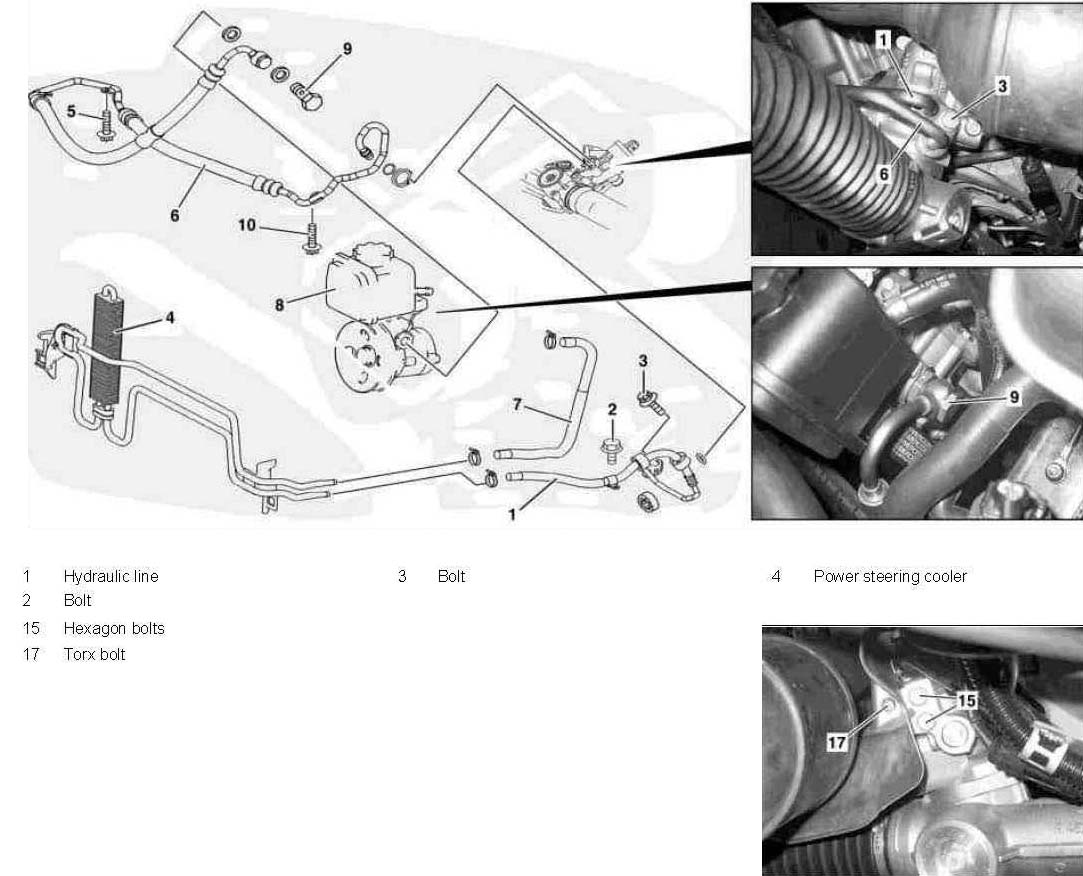

AR46.25-P-3015VA Removing and installing hydraulic line of power steering
- Upstream of power steering cooler

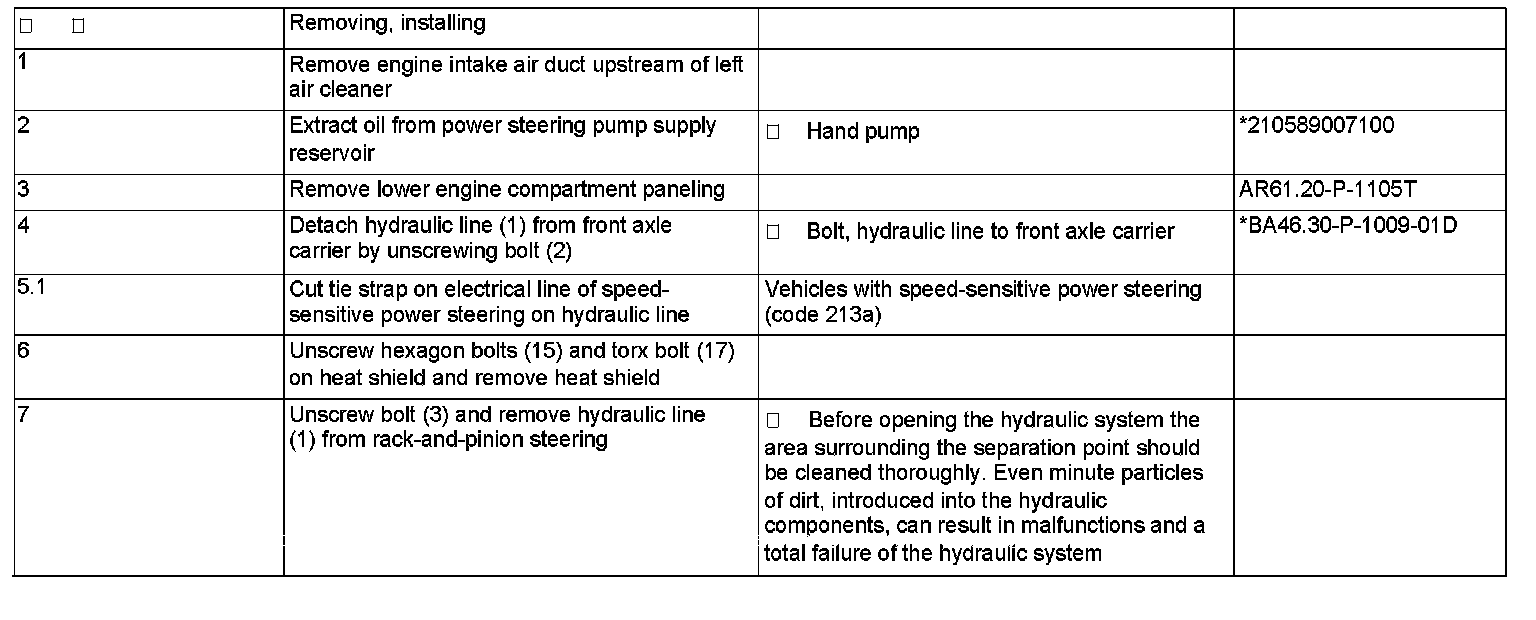

Steps 1-7:

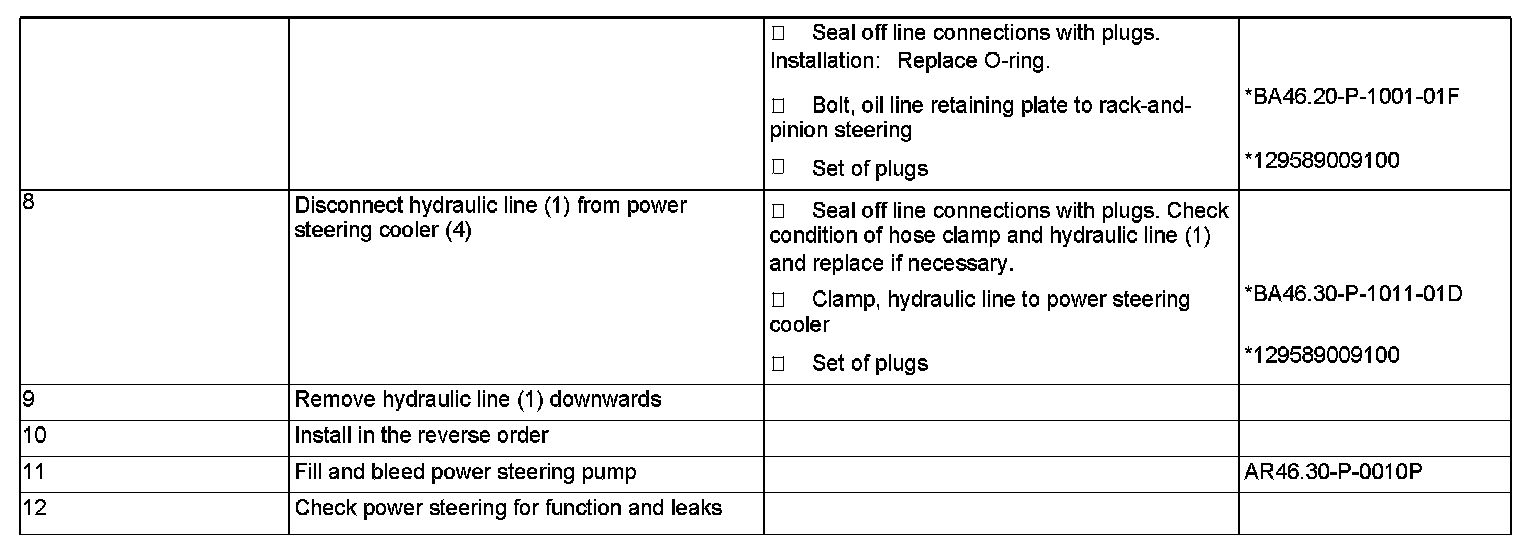

Steps 8-12:
