Intake Manifold: Diagrams

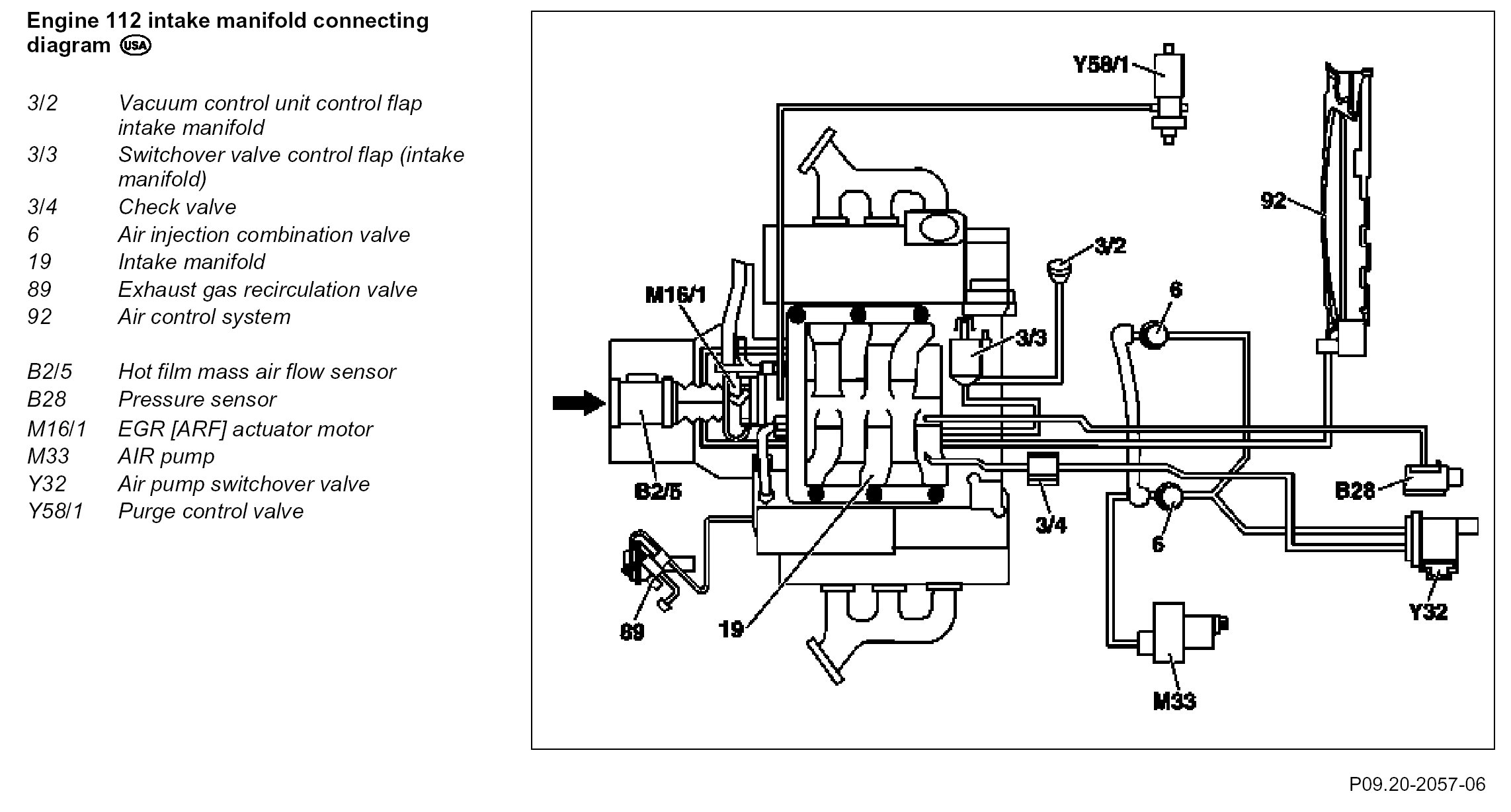

AR09.20-P-1310-01T Intake Manifold Connection Diagram


Component Identification:
