AR29.10-P-0300TA Remove/Install Pedal Assembly



AR29.10-P-0300TA Remove/install pedal assembly
- Transmission 716.6, 722.6
- without CODE (424) Sequentronic (SEQ)

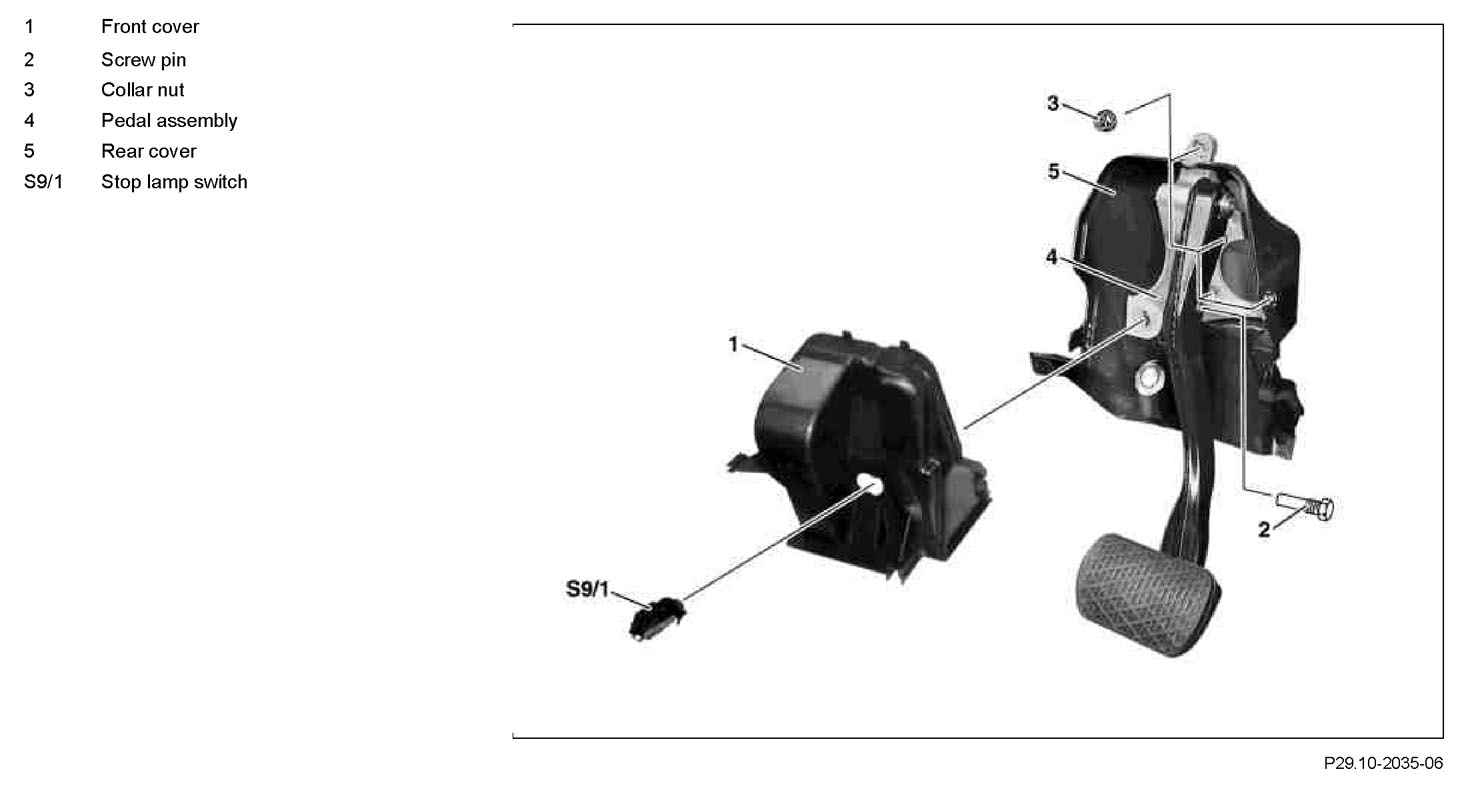

Component Identification:

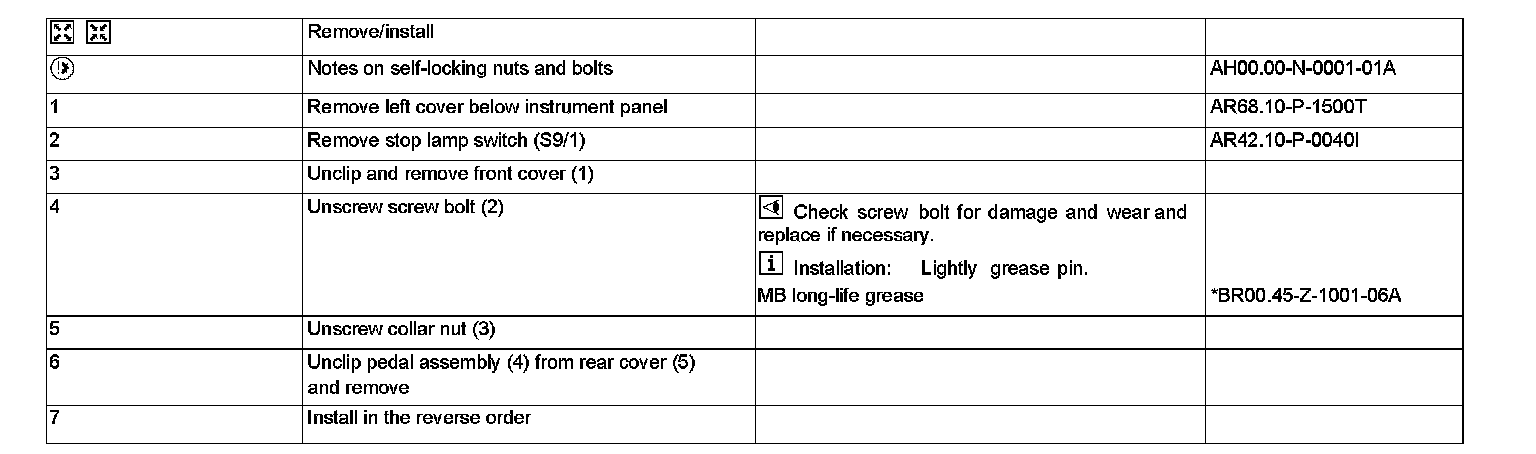

Steps 1 - 7:

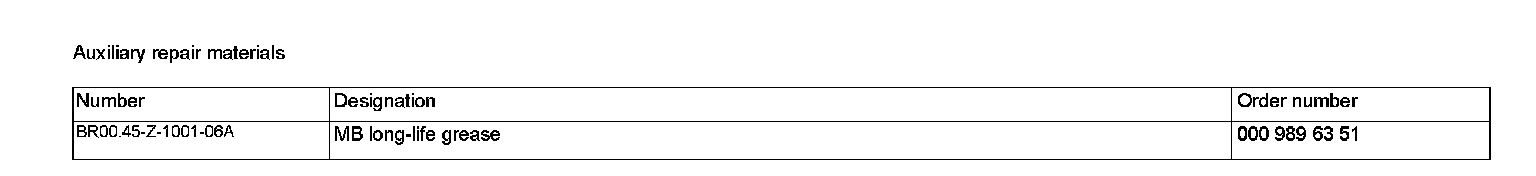

Auxiliary Repair Materials:
