Home
>>
Mercedes Benz
>>
2005
>>
E 320 4MATIC Sedan (211.082) V6-3.2L (112.954)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Seat Back
>>
Seat Back Frame
>>
Service and Repair
>>
Removal and Replacement
Removal and Replacement
AR91.10-P-3331TA Remove/Install Front Seat Backrest
Frame

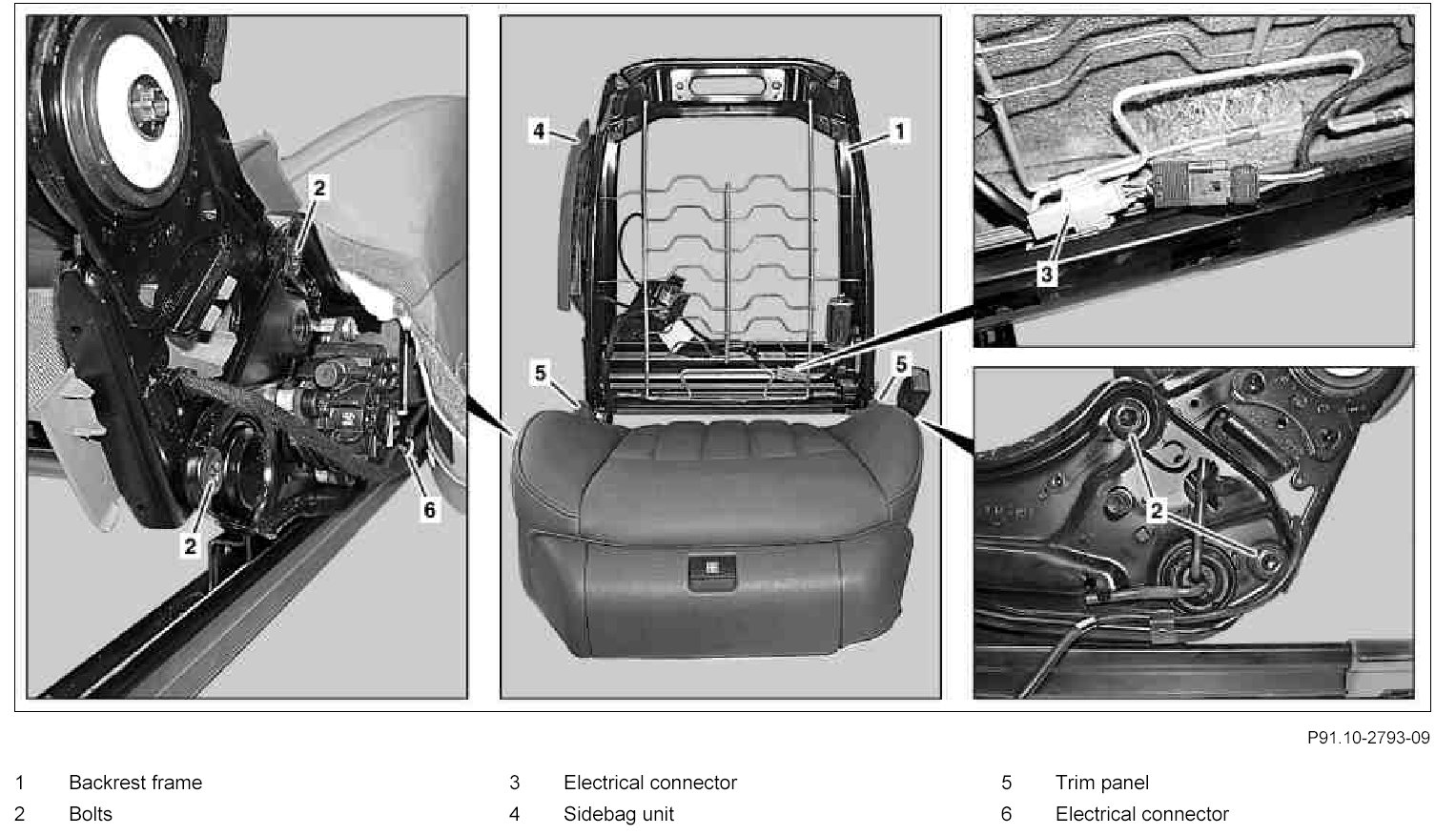

Component Identification:

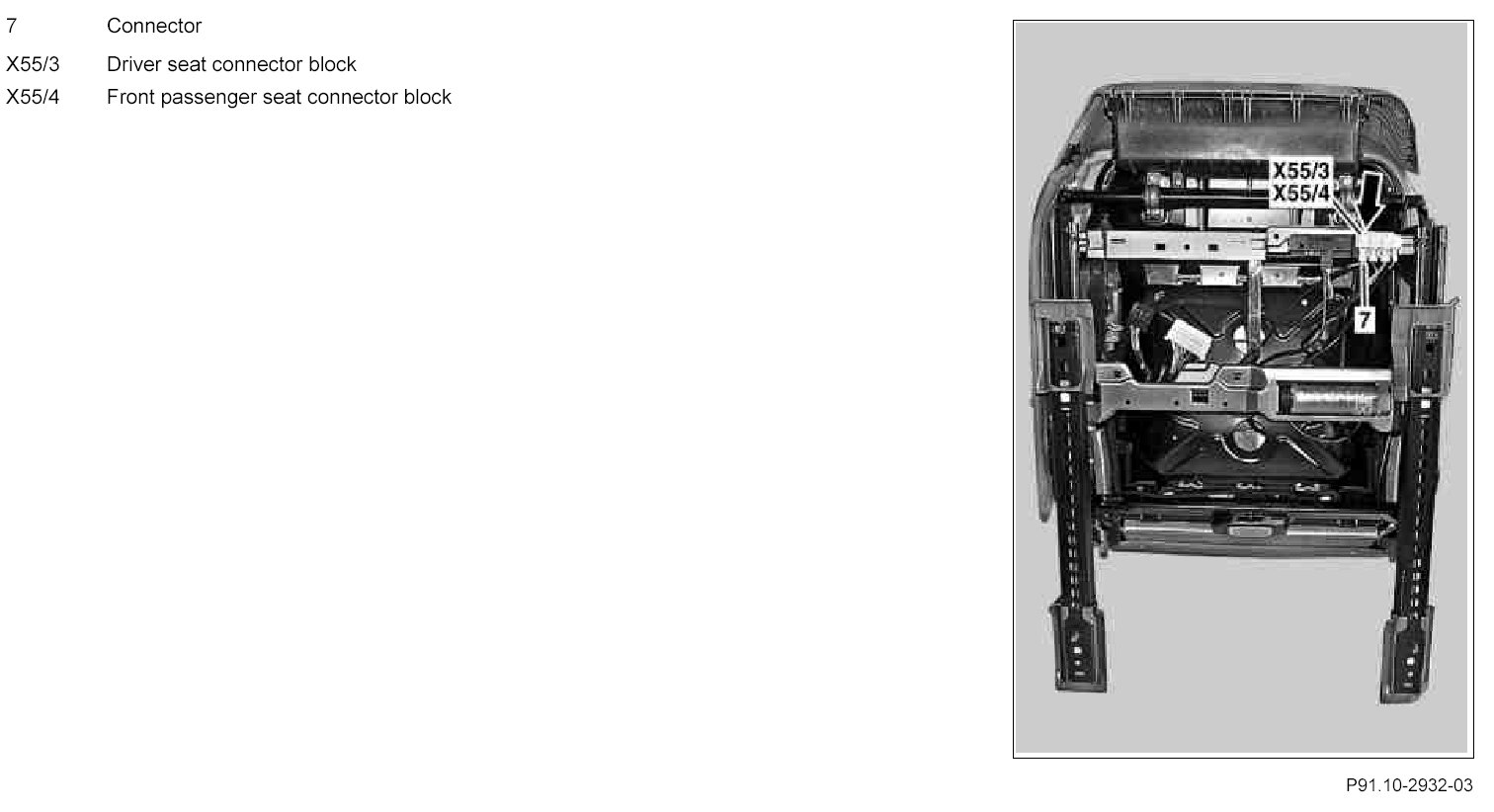

Component Identification:

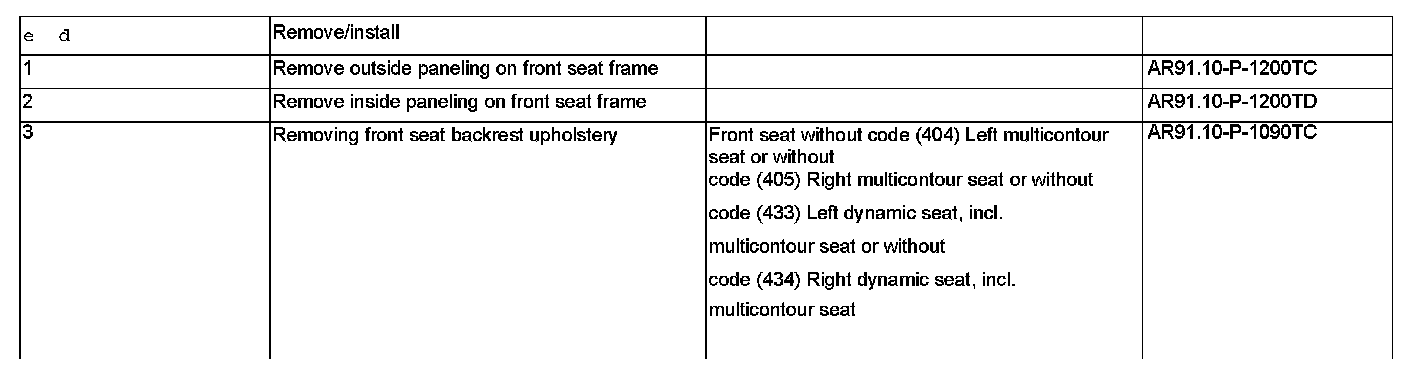

Steps 1 - 3:

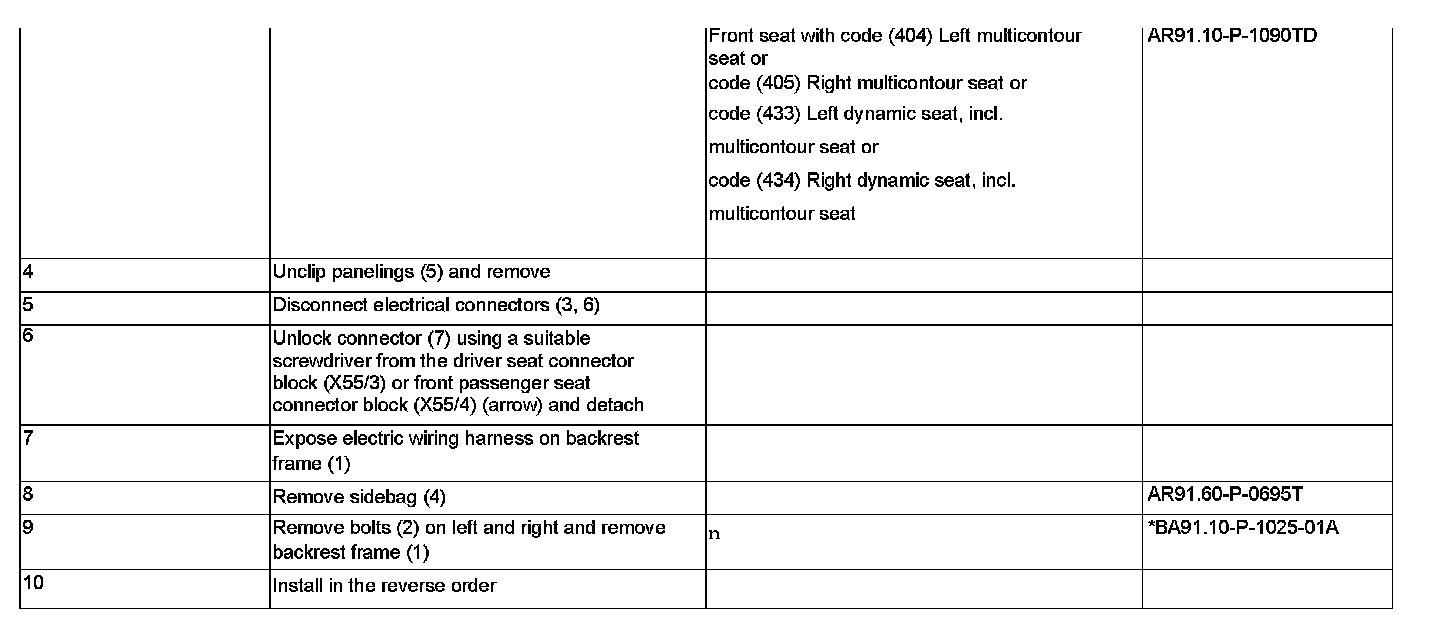

Steps 4 - 10:

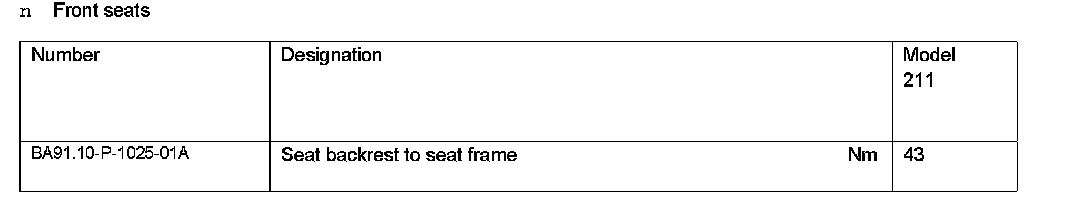

Front Seats:
