PE07.61-U-2101CL ME-SFI Fuel Injection and Ignition System Control Module



PE07.61-U-2101CL ME-SFI Fuel Injection and Ignition System Control Module
Engine 275.980 as of 01/01/04 in Model 215

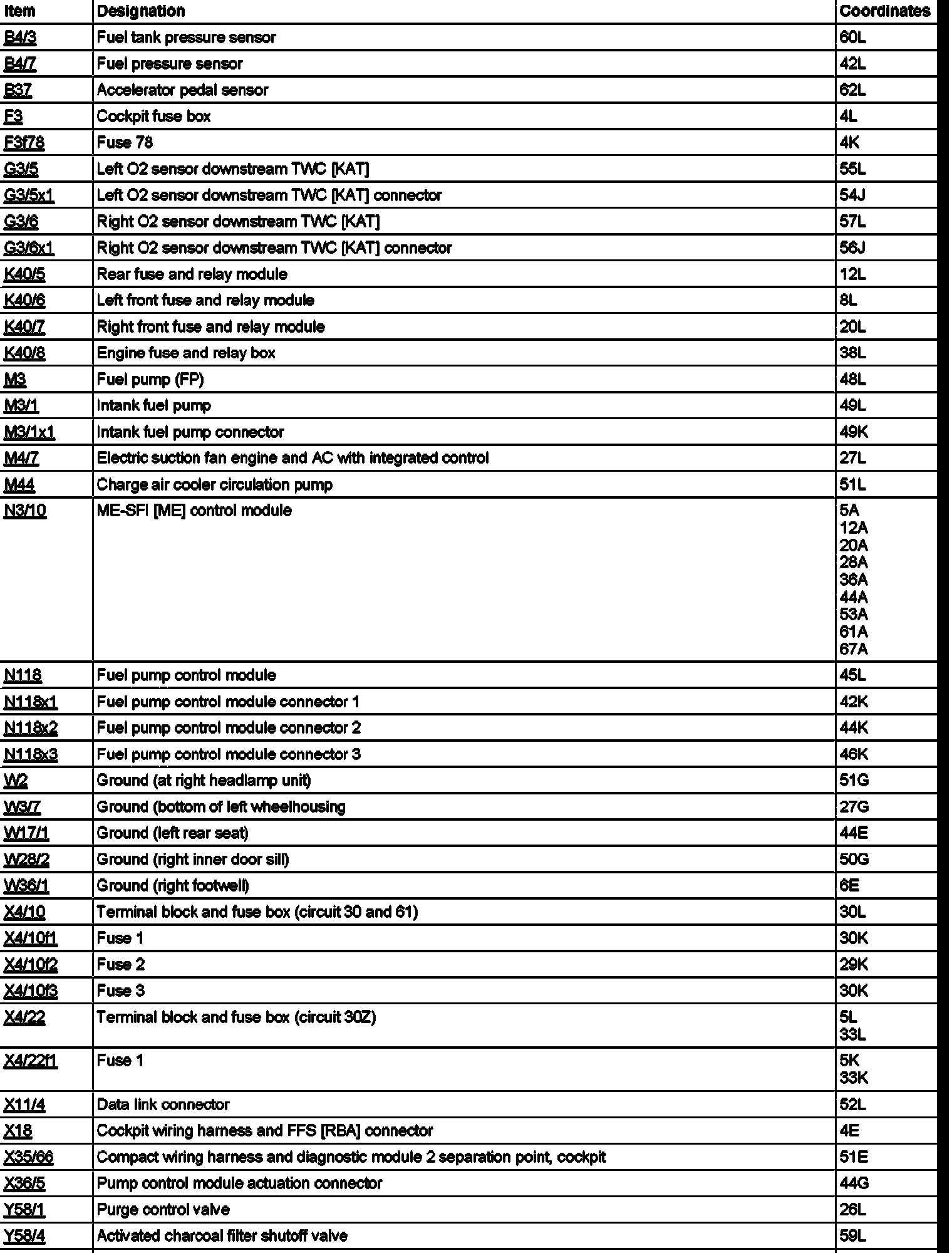

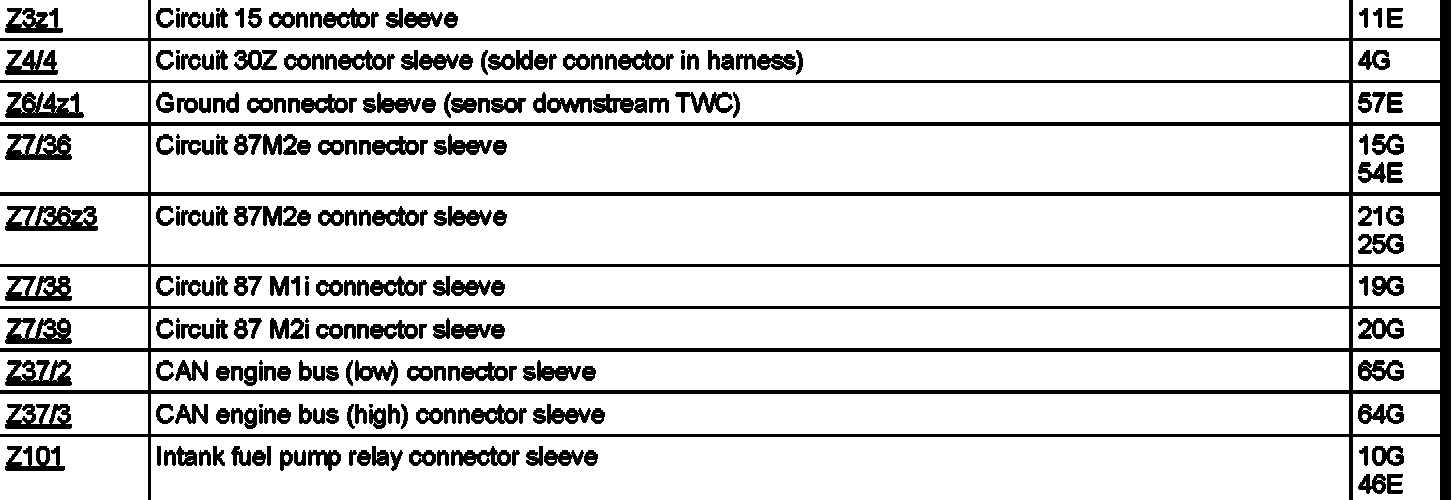

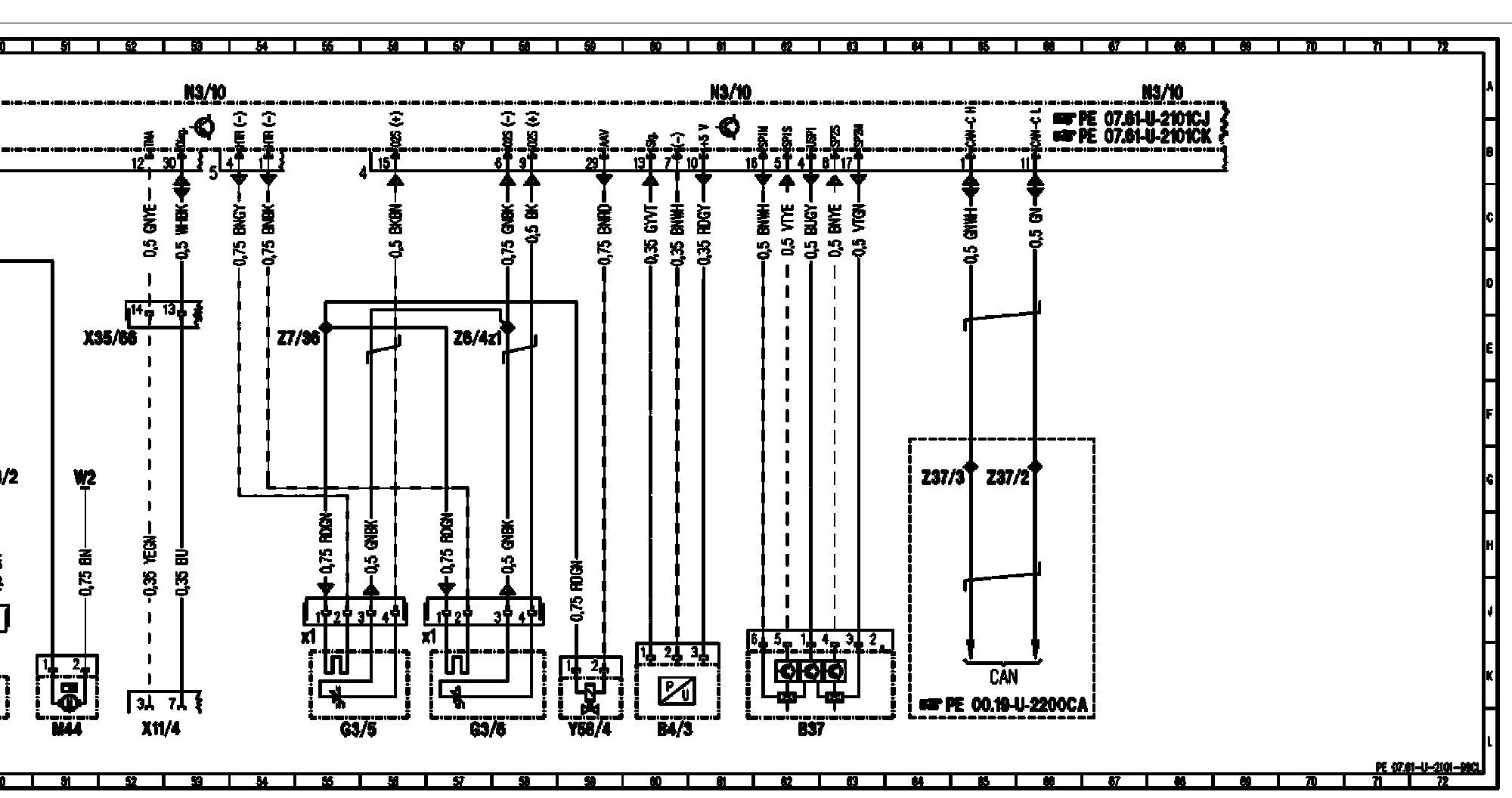

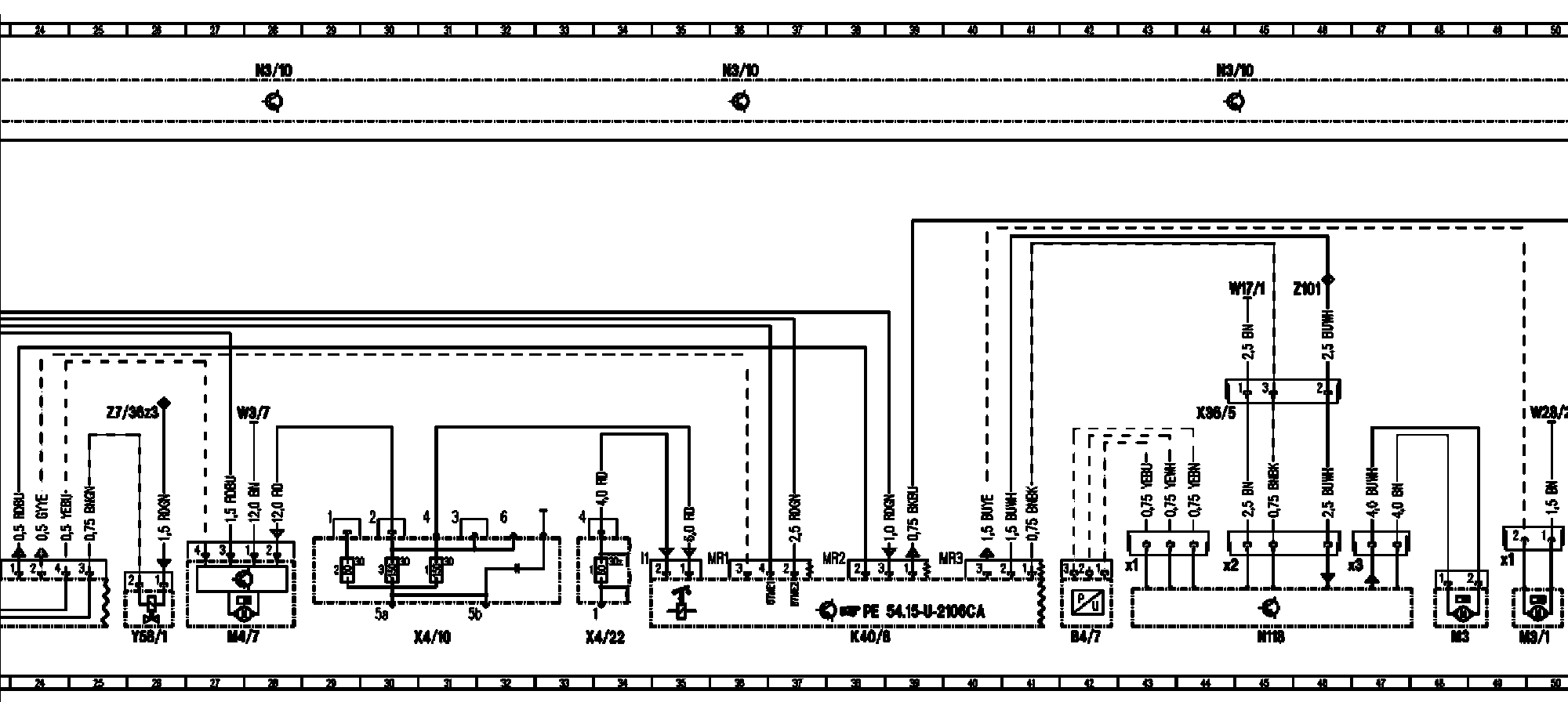

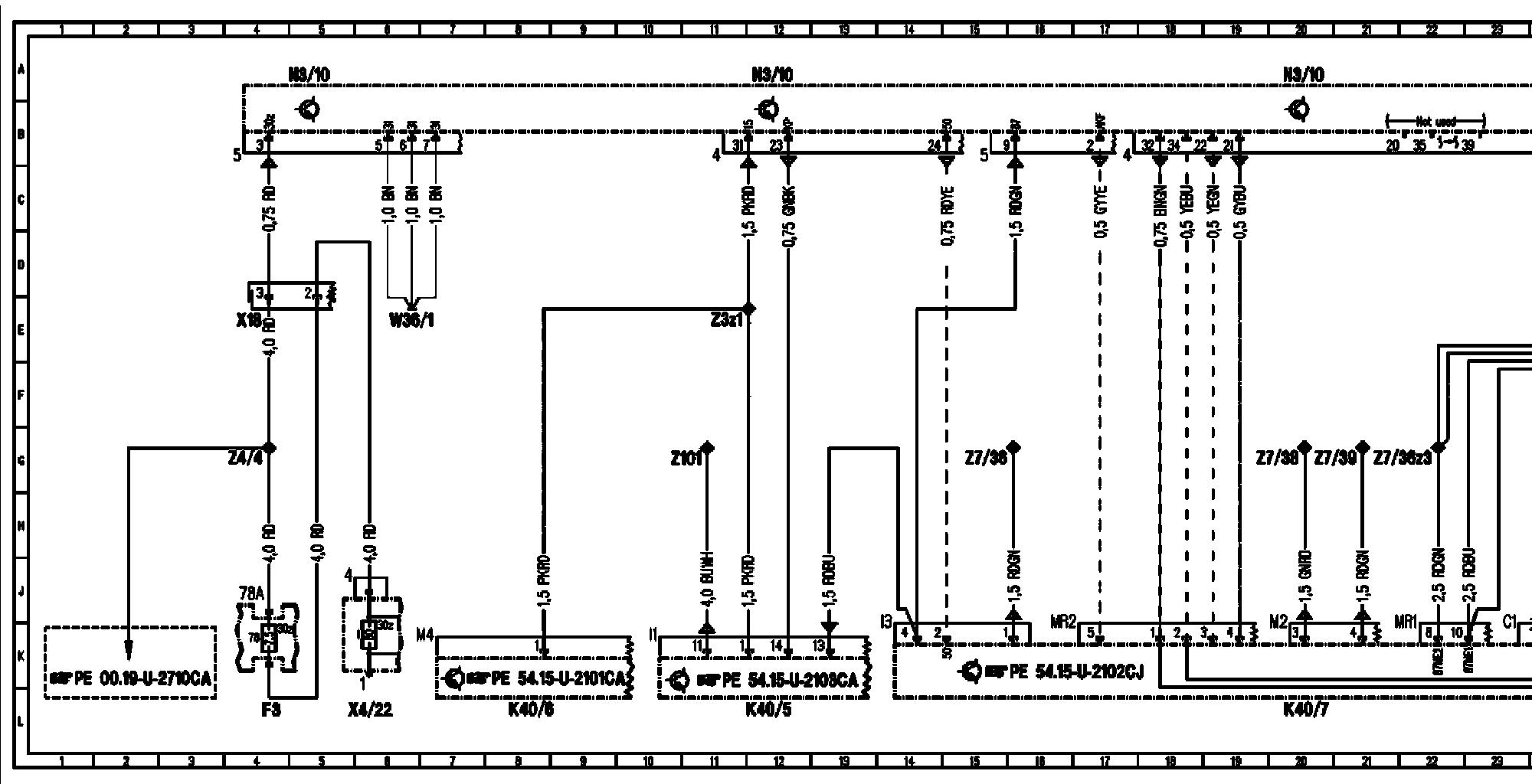

ME 2.7.1.G, Control Module N3/10, Sheet 1
