AR83.30-P-6540IM Remove/Install Condenser
AR83.30-P-6540IM Remove/Install Condenser
AR83.30-P-6540IM Install/Remove Condenser

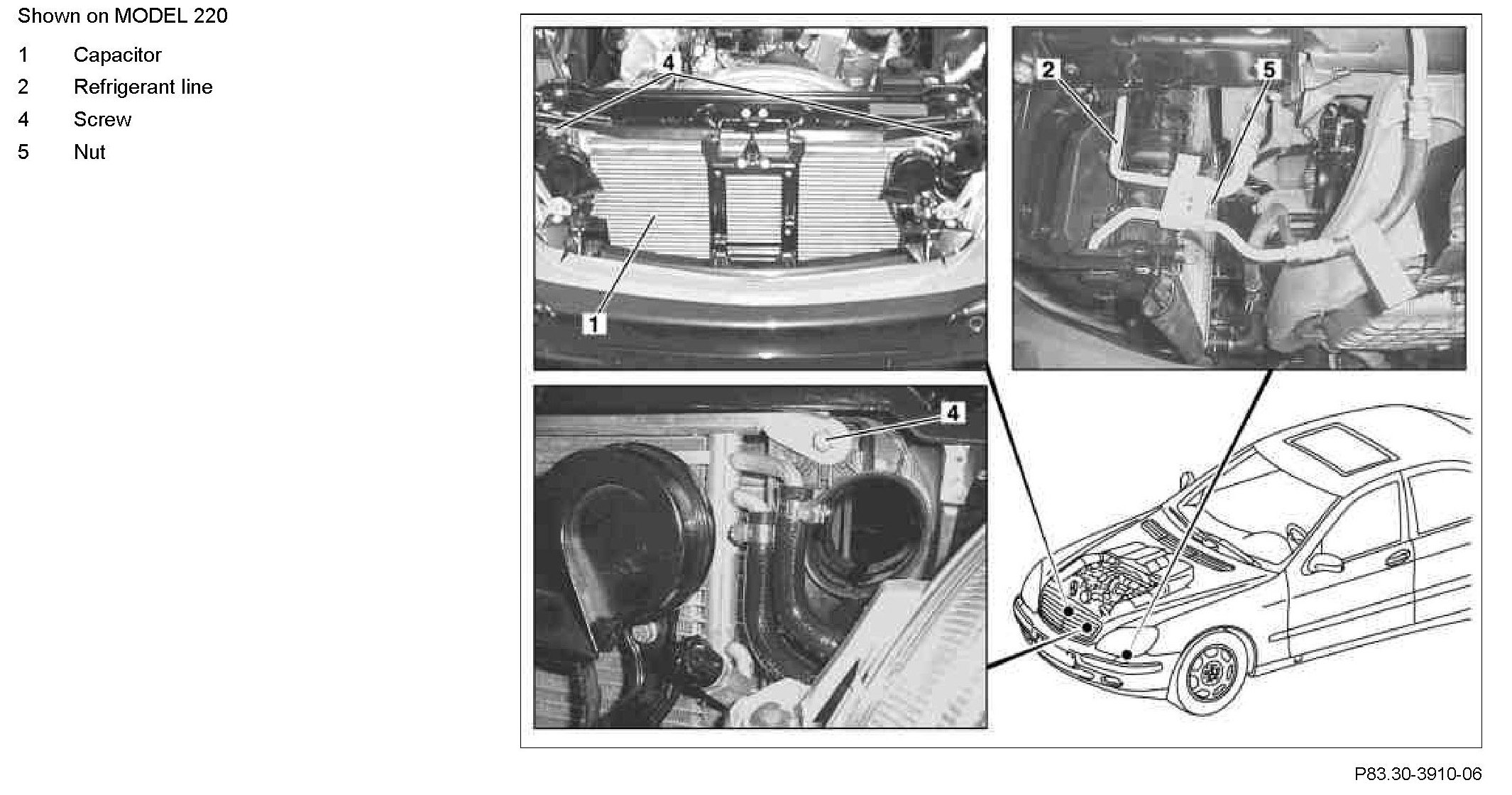

Component Identification:

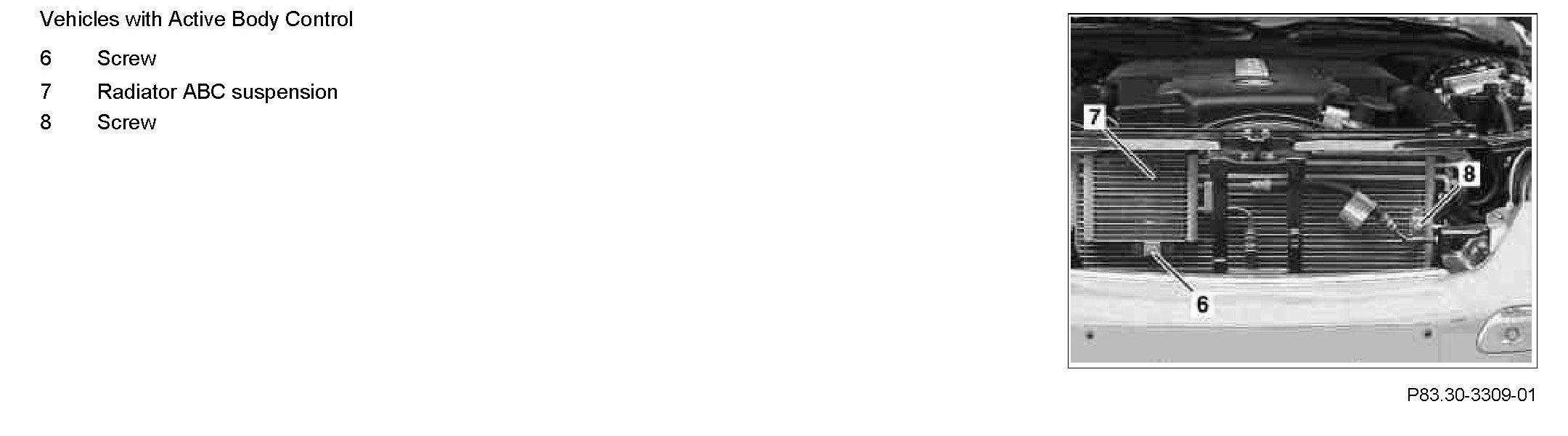

Component Identification:

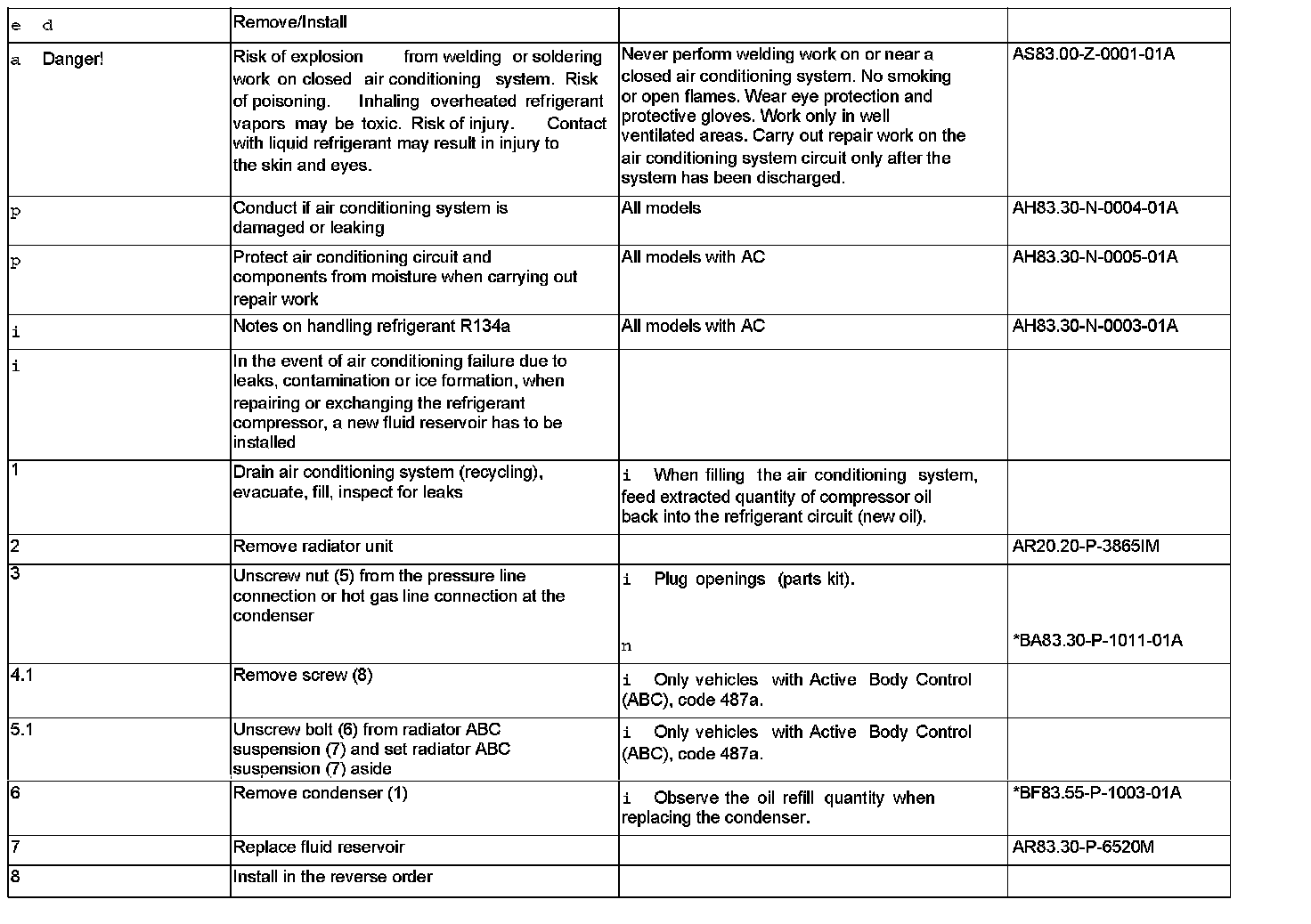

Steps 1 - 8:

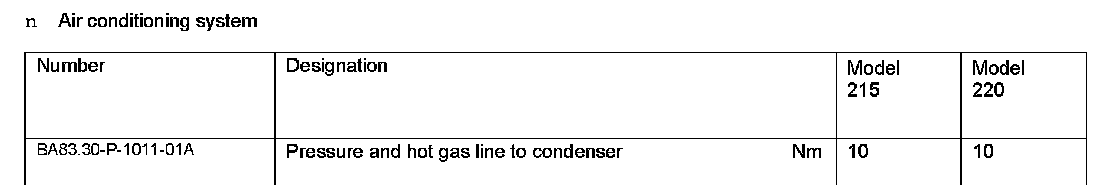

Air Conditioning System:

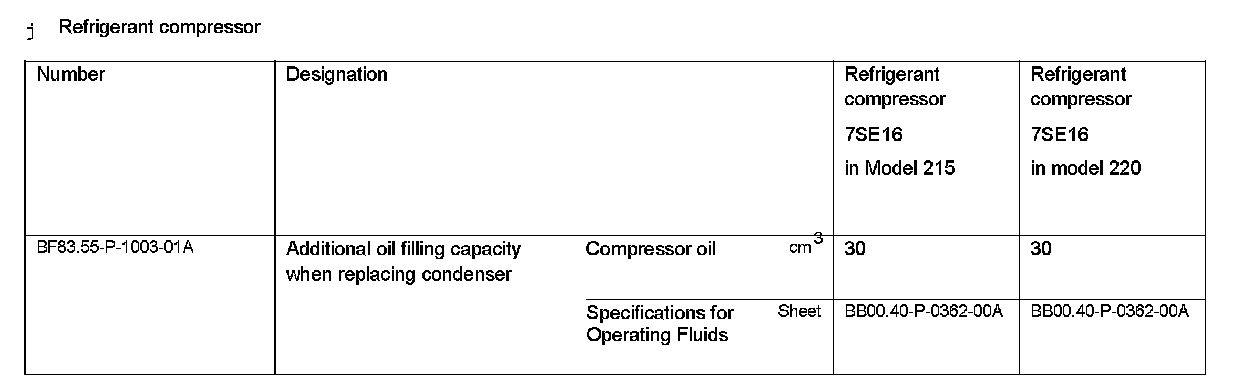

Refrigerant Compressor:
