Removal and Replacement



AR83.30-P-5540M Remove/Install Evaporator

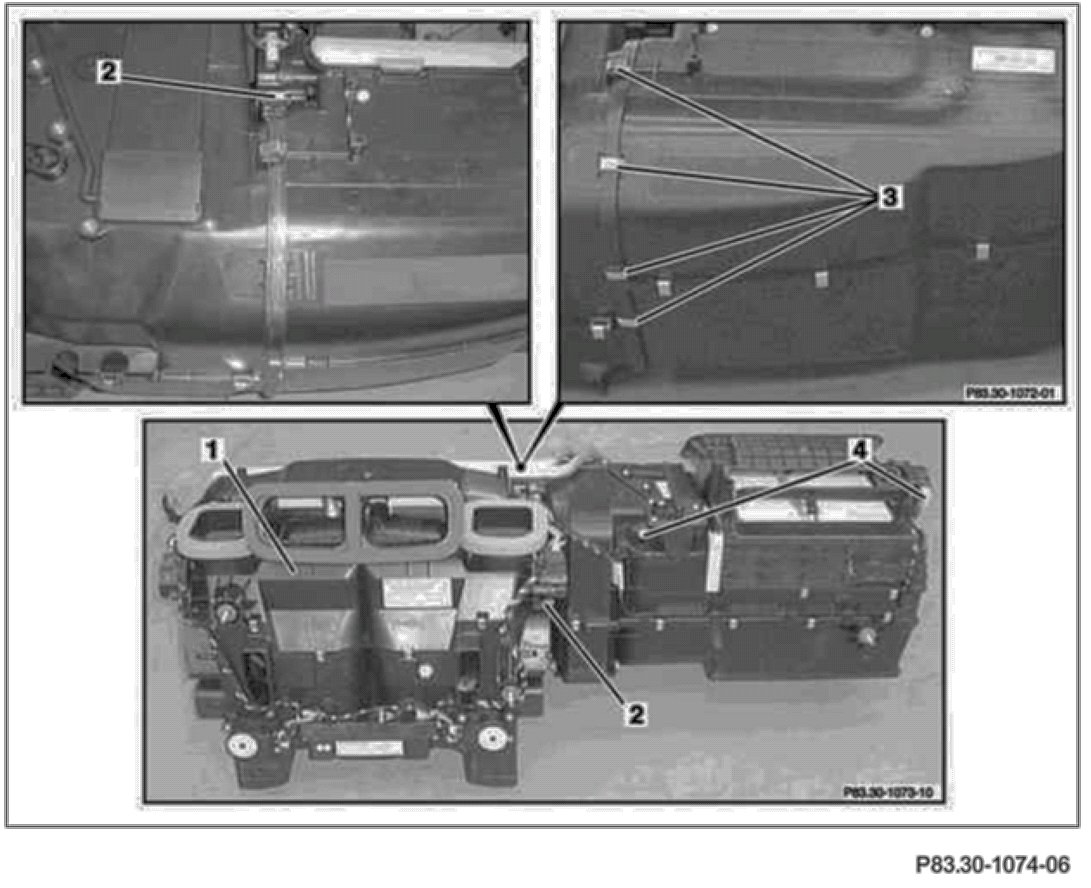

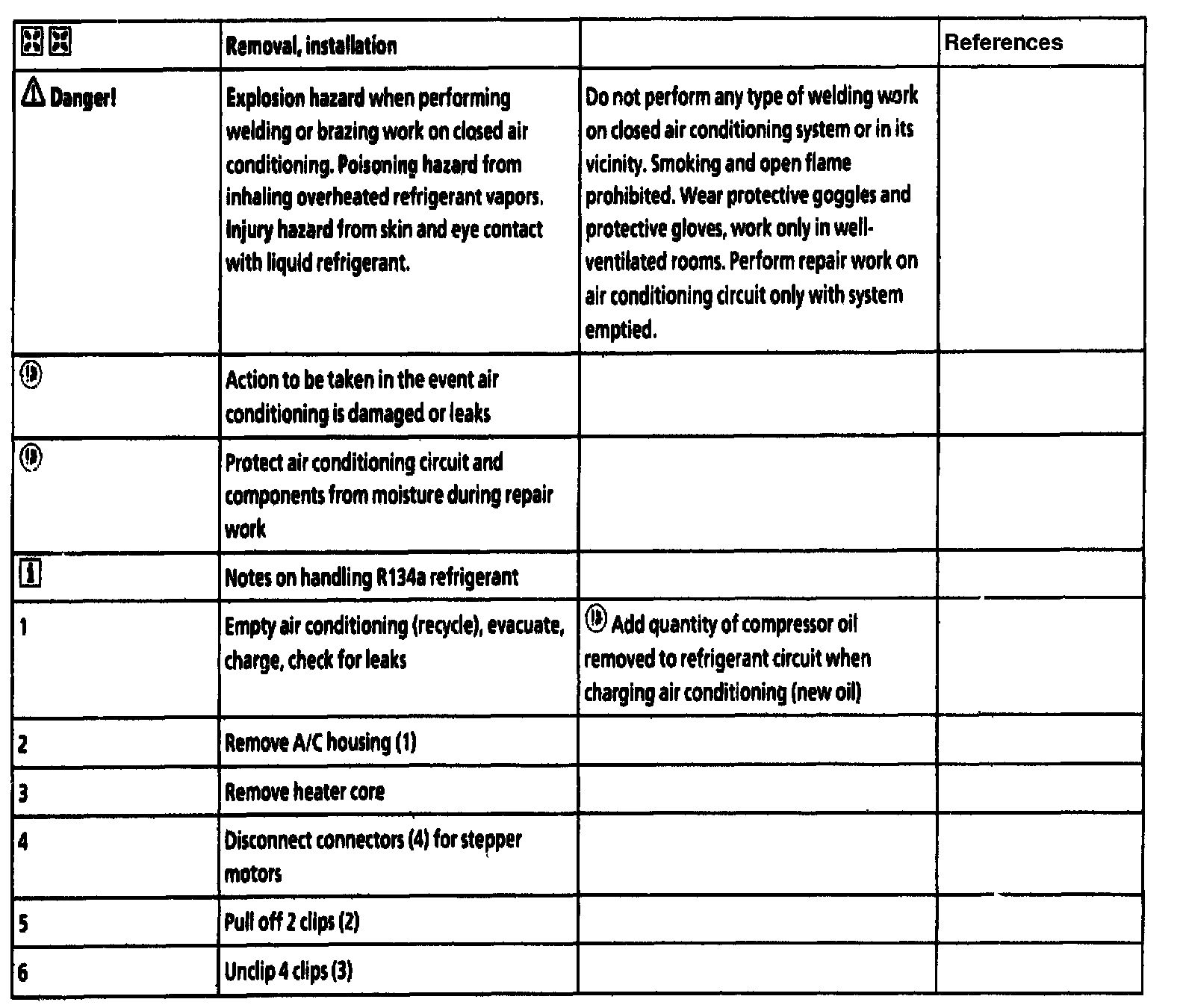

Removal/Installation, Steps 1 - 6:

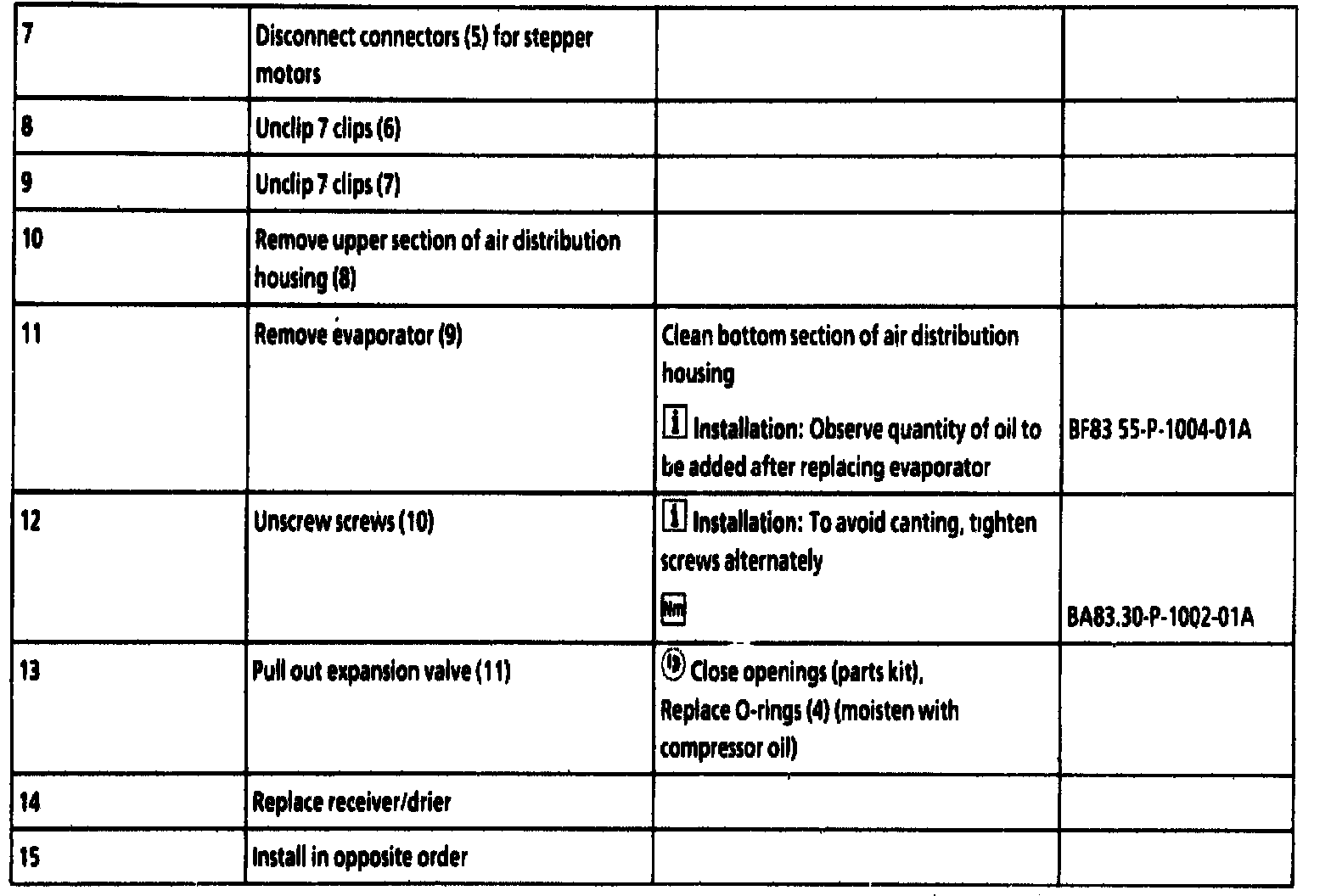

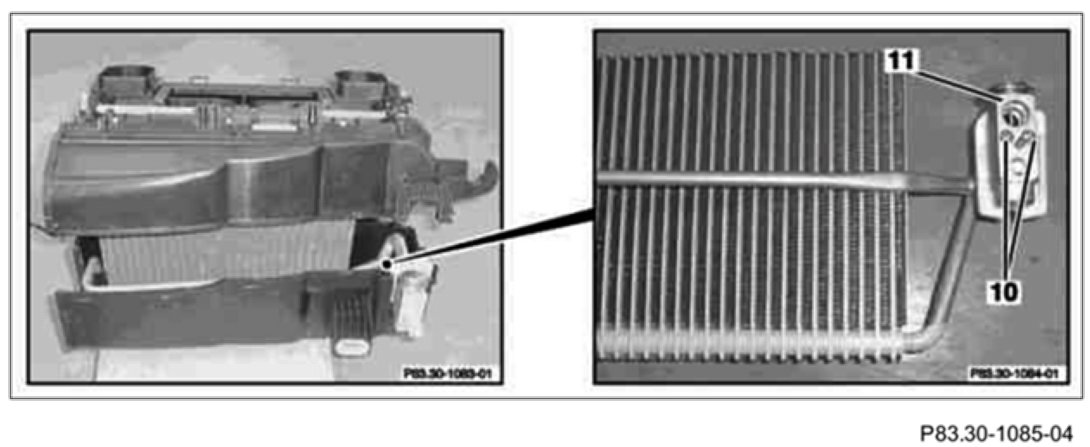

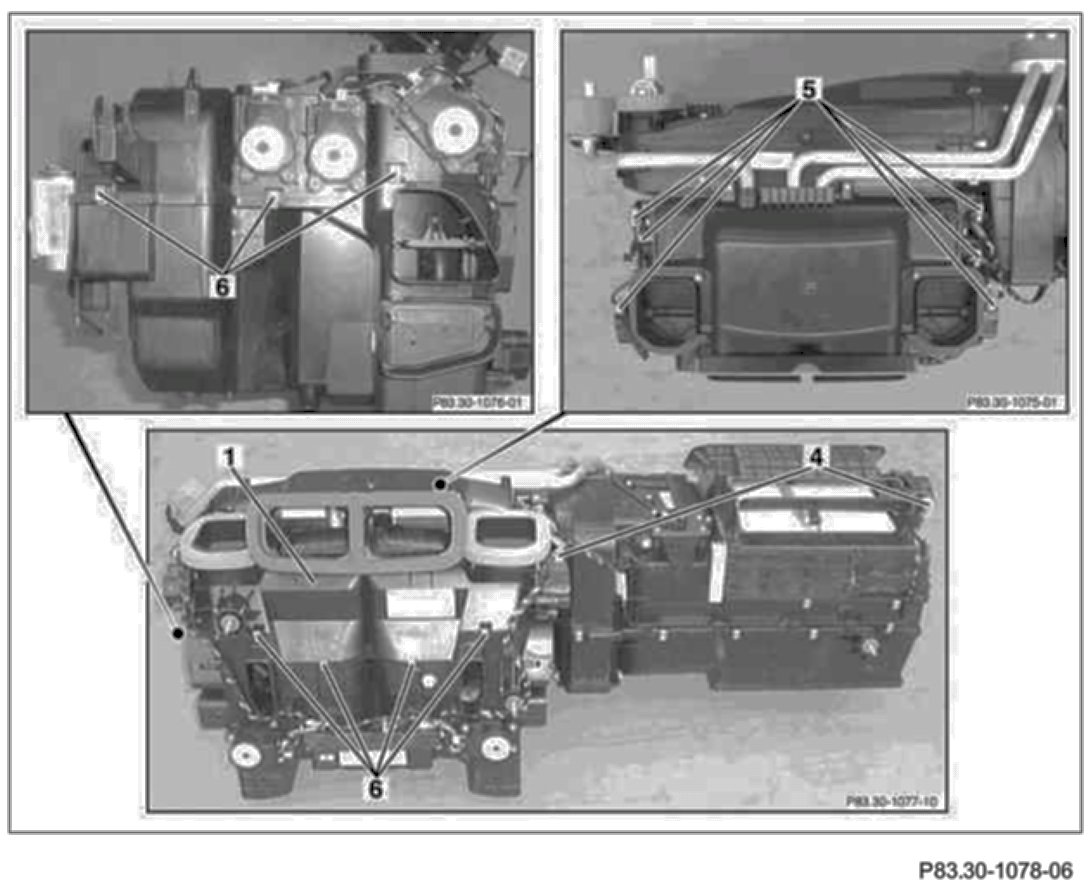

Removal/Installation, Steps 7 - 15:

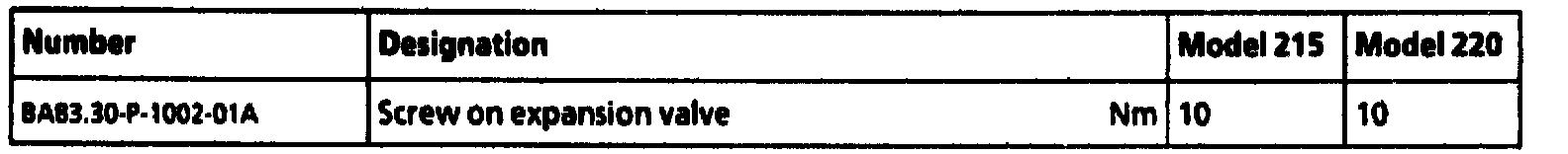

References (BA), Air Conditioning:

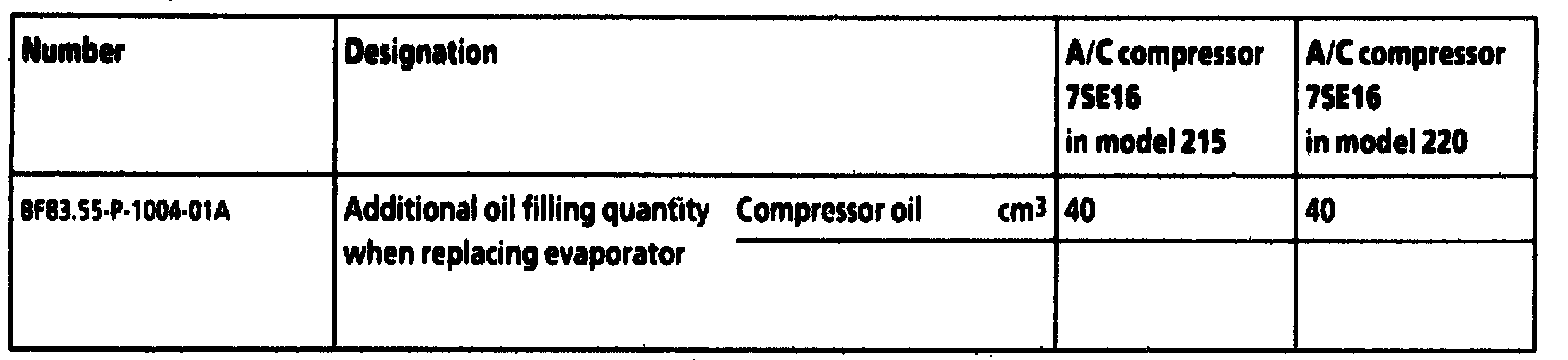

References (BF), A/C Compressor:
