H. Connecting the Microphone Array

H. Connecting the microphone array








1. At the right side of the exposed electronics compartment at the front of the trunk, locate the connectors for the microphone array cables (Figures 31 and 32).

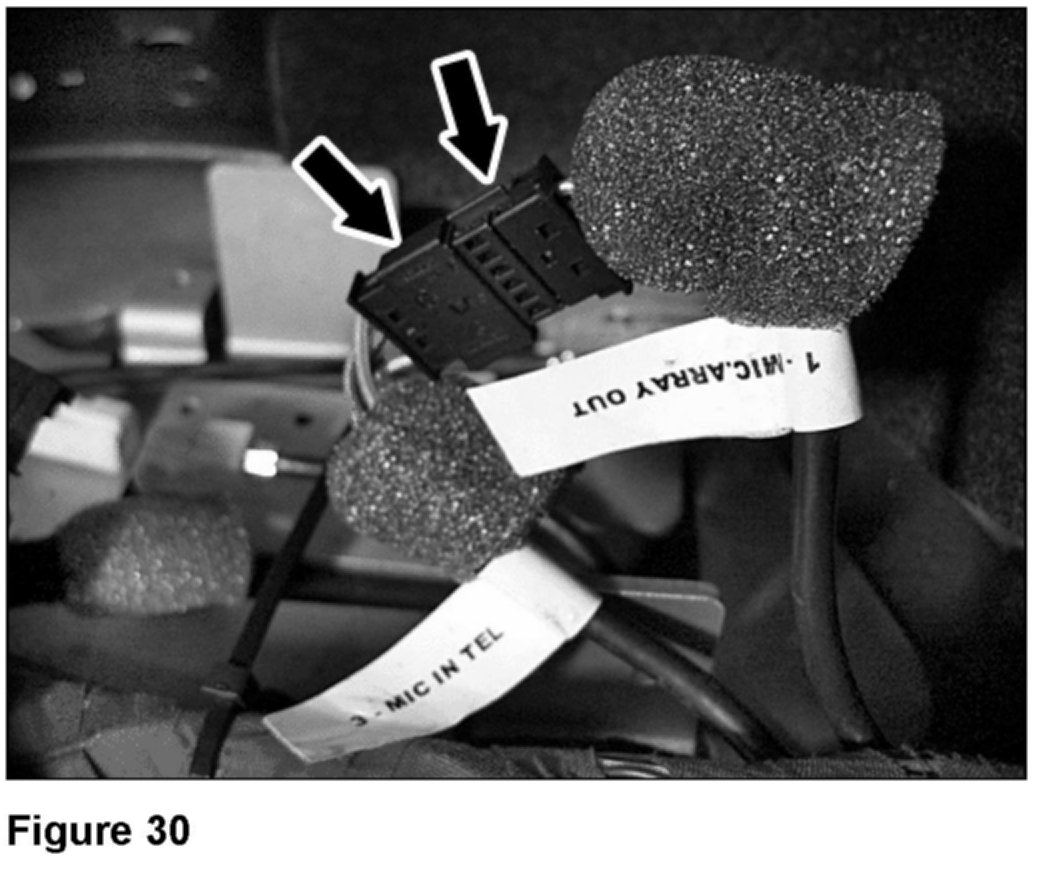

2. Connect the 6-pin female connector labeled "1 - MIC.ARRAY OUT" to the 6-pin male connector labeled 3 - MIC IN TEL") (Arrows, Figure 30).

3. If the vehicle is equipped with Tele Aid, connect the 2-pin female connector labeled "4 - MIC.OUT TEL" to the 2-pin male connector labeled "8 - MIC.IN TELEAID") (Arrows, Figure 31).
