G. Connecting Linear Compensator and UHI Control Module

G. Connecting the linear compensator and UHI control module

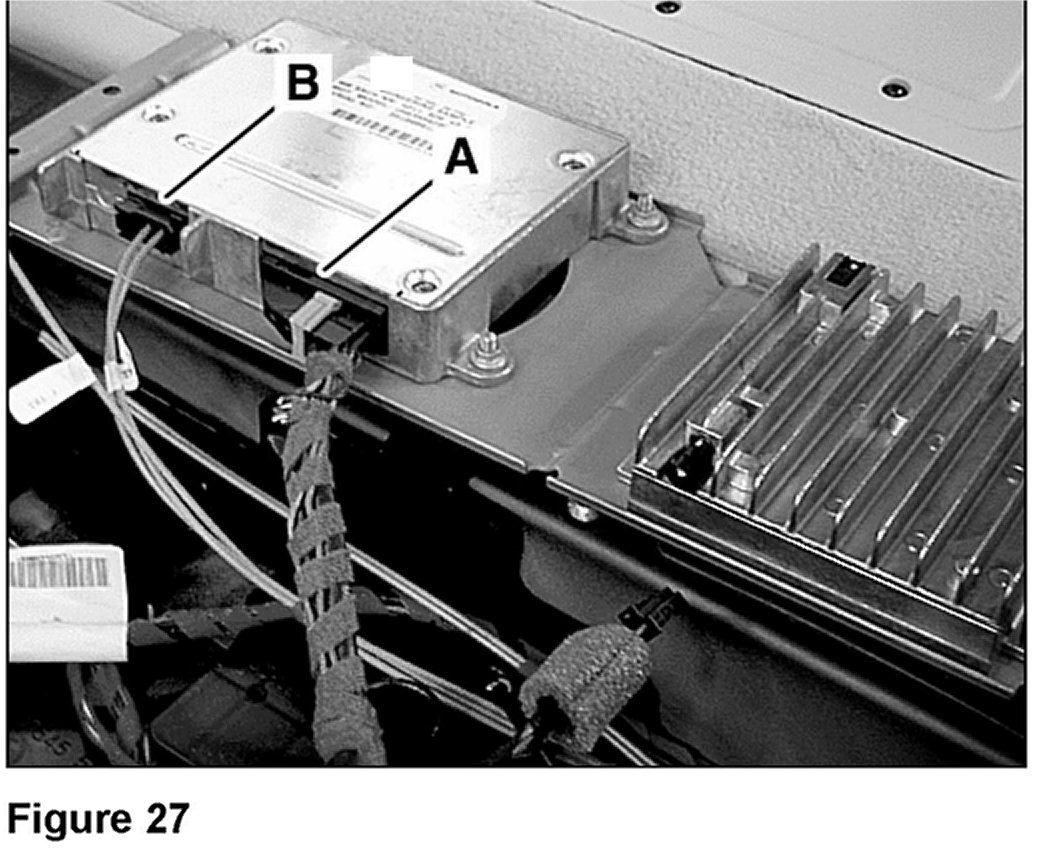

1. Place the bracket assembly-linear compensator/MHI control module-near its mounting point (Figure 27).

2. Connect the MHI power supply connector to the MHI control module (A, Figure 27).

3. Connect the MHI MOST connector to the MHI control module (B, Figure 27).





4. Connect the right-angled, female FAKRA connector to the linear compensator jack labeled ANTENNA" (A, Figure 28).

5. Connect the straight, male FAKRA connector to the linear compensator jack labeled PORTABLE" (B, Figure 28).

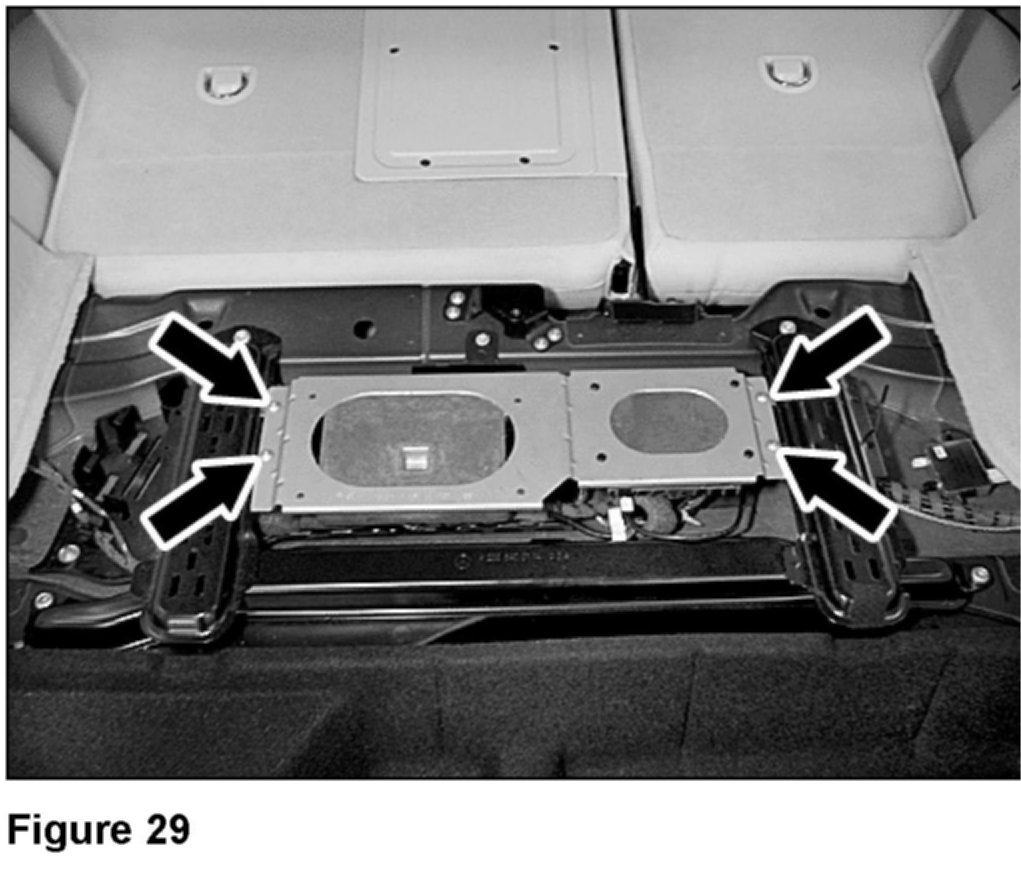

6. Connect the power supply cable to the linear compensator (C, Figure 28).

7. Slide the four screw clips over the holes in the carriage over the electronics compartment behind the rear seat in the load compartment.





8. Mount the bracket assembly-control modules facing the floor-to the screw clips on the carriage with four T20 machine screws.
