B. Mounting the Linear Compensator & MHI Control Module to Bracket

B. Mounting the linear compensator and MHI control module to the bracket

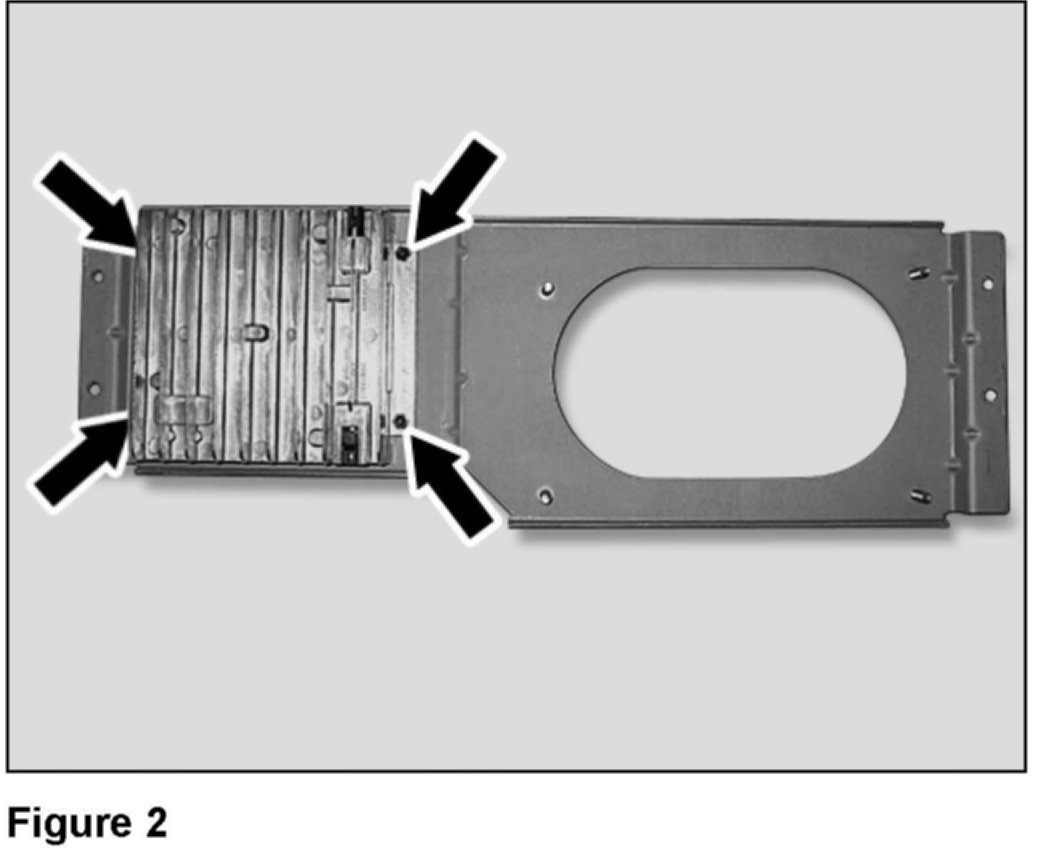

1. Mount the linear compensator to the bracket backside with four kit-included M4 hex nuts (Figure 2).

Note:
Position the linear compensator with the connector receptacles facing the mounting side of the bracket for the MHI control module (Figure 2).





2. Mount the MHI control module to the threaded studs on the bracket backside with four kit-included M5 hex nuts (Figure 3).

Note:
The keyed threaded studs fit the MHI control module only one way (i.e. it is not possible to mount the MHI control module to the bracket incorrectly).
