AR72.10-P-1900P Remove/Install Crank Window In Front Door



AR72.10-P-1900P Remove/Install Crank Window In Front Door
- Without window clamp

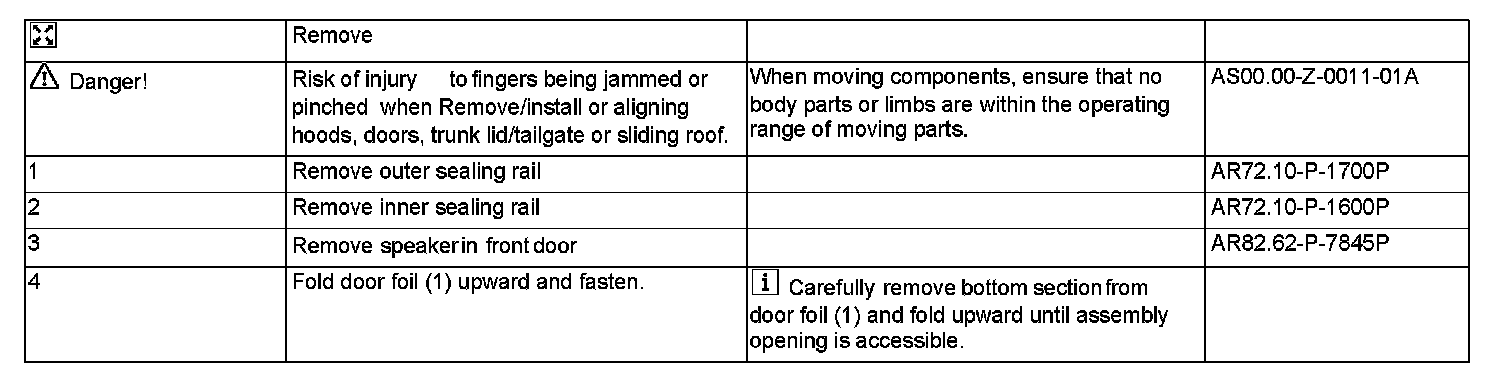

Part 1:

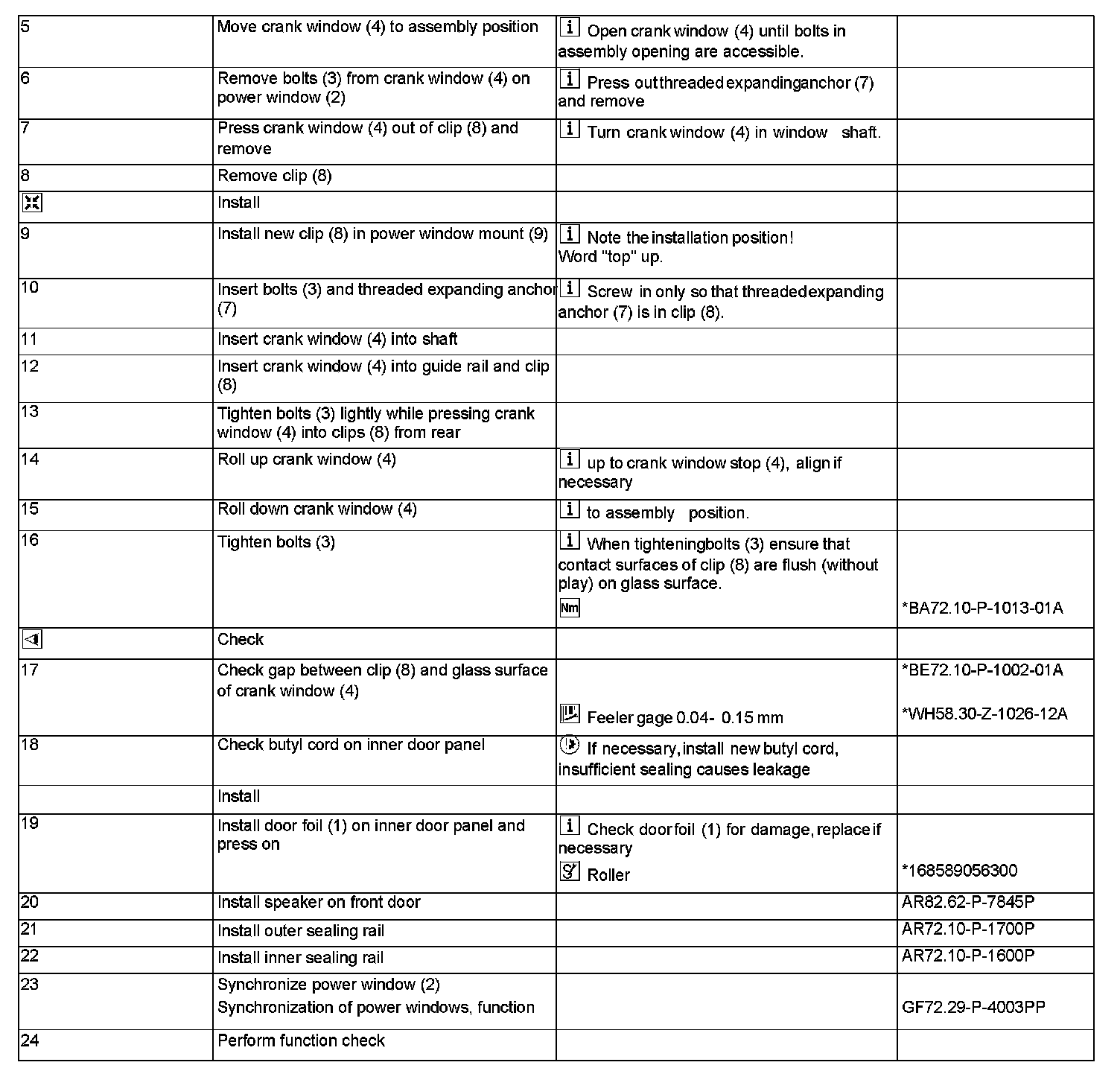

Part 2:

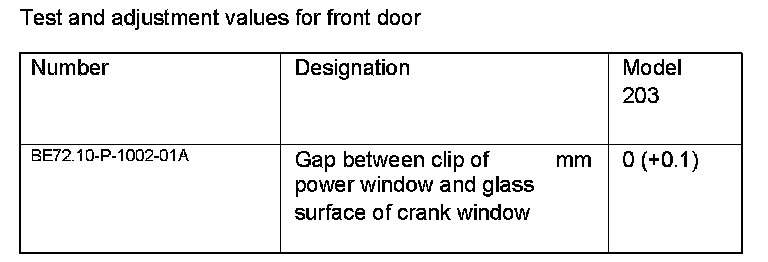

Test and Adjustment Values for Front Door:

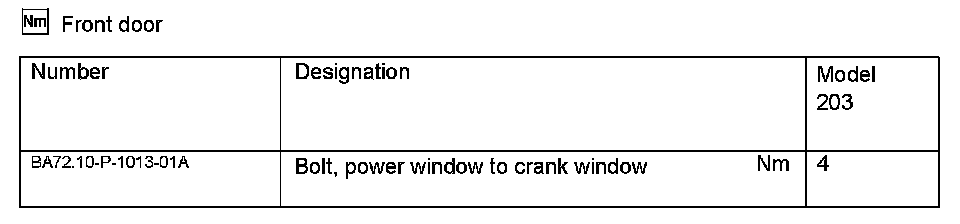

Front Door:
