Flex Plate: Service and Repair
AR03.30-P-8001Q Remove/install
flywheel
/ drive plate

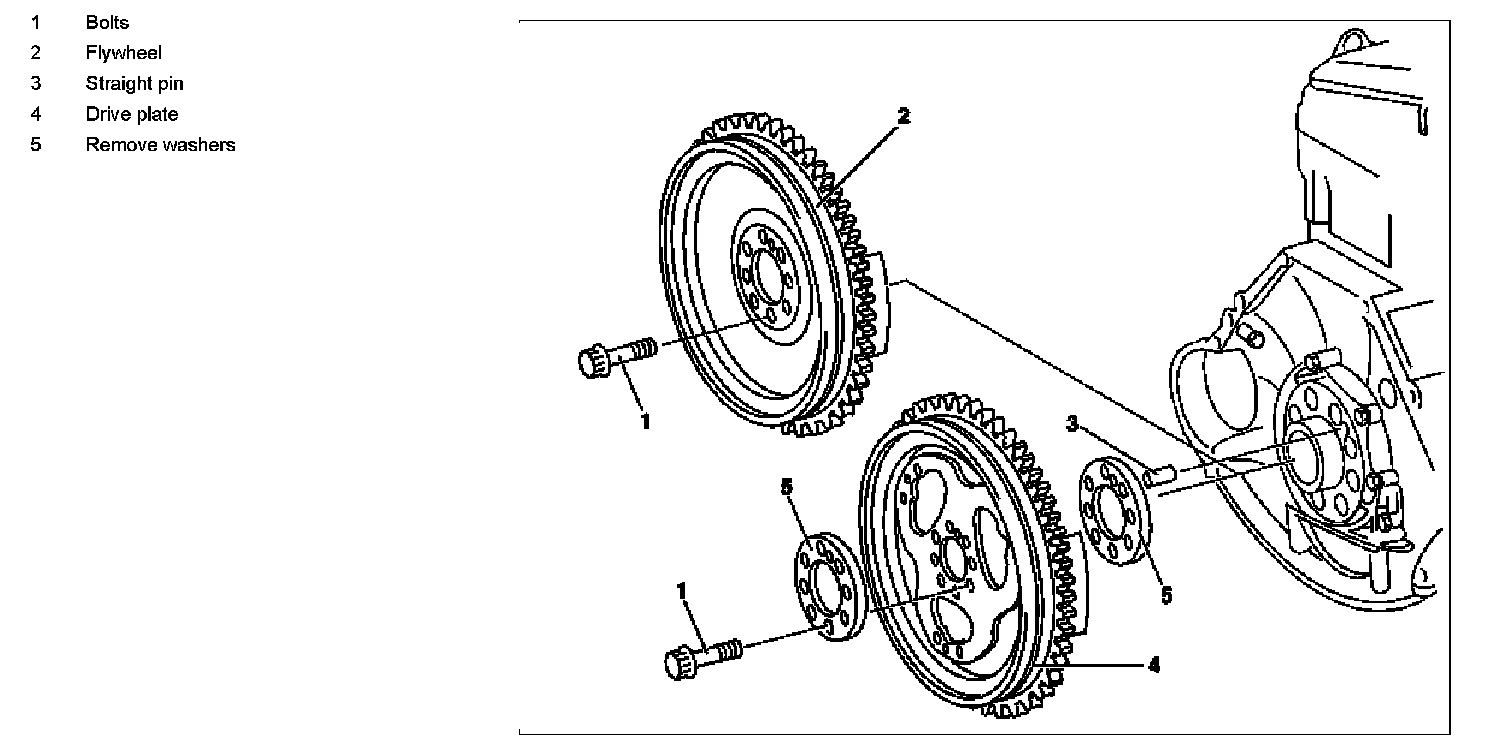

Component Identification:

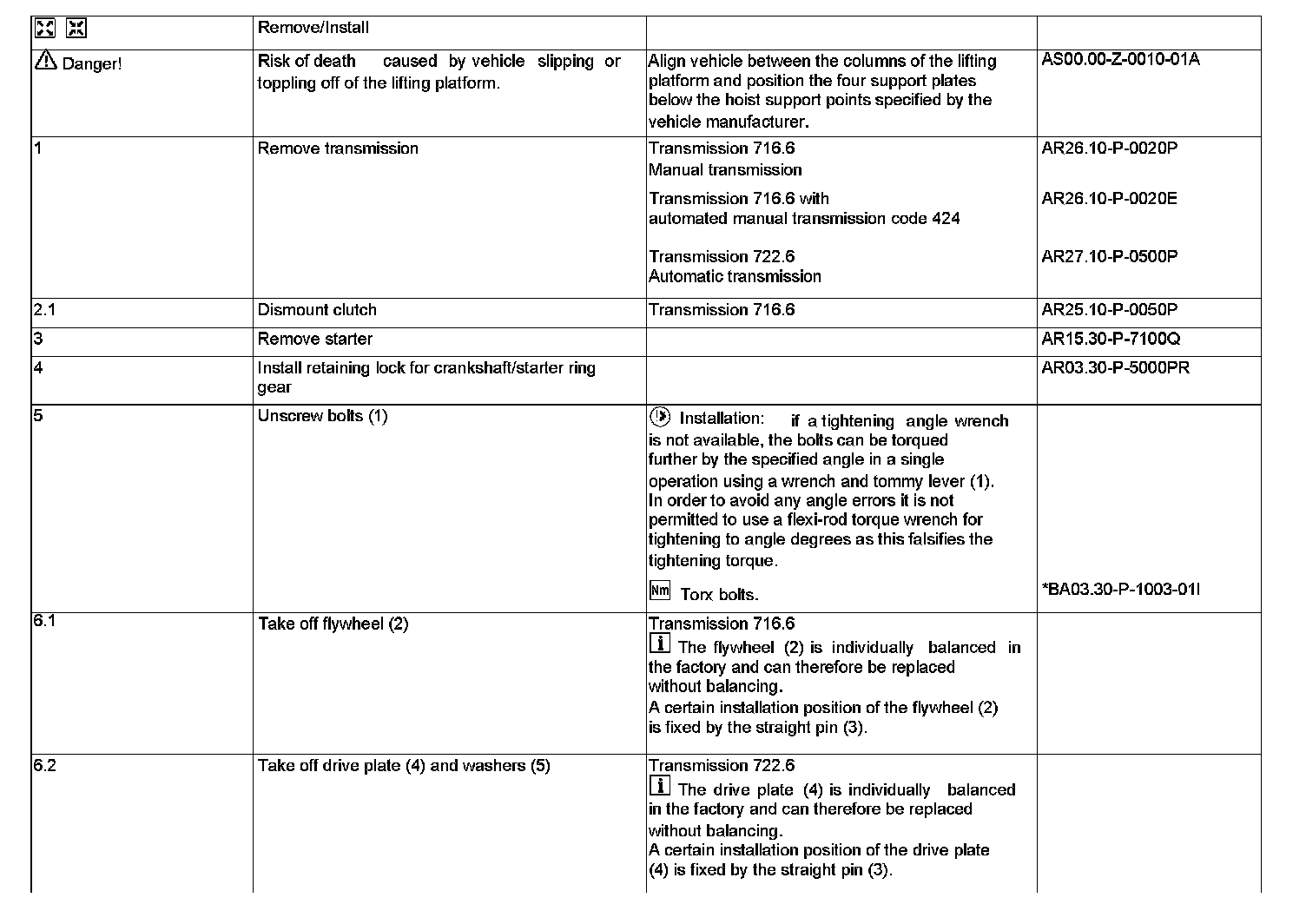

Steps 1-6.2:
Step 7:
Flywheel,drive Plate, Vibration Damper, Starter Ring Gear:
