I. Connecting the Microphone Array

I. Connecting the microphone array








1. On the right side of the electronics compartment, locate the connectors for the labeled microphone array cables (Figures 32 and 33).

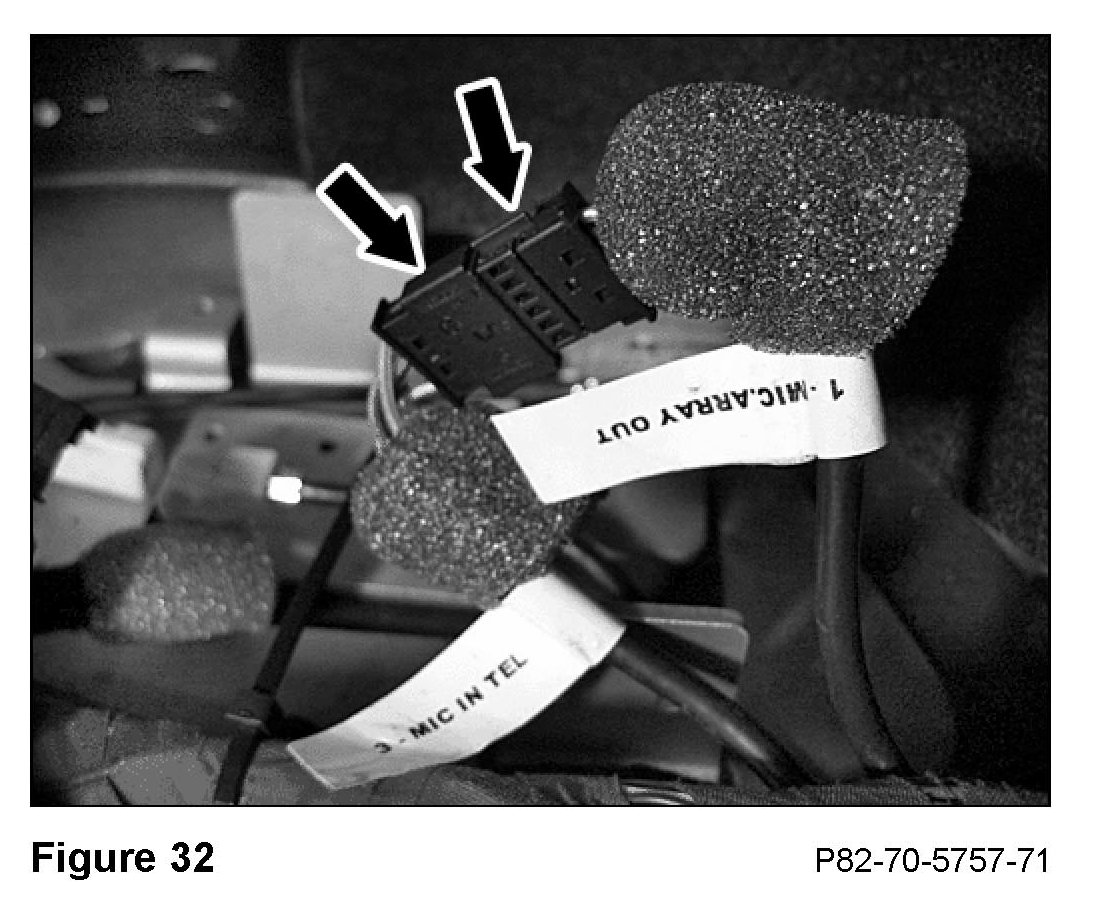

2. Connect the 6-pin female connector labeled "1 - MIC.ARRAY OUT" to the 6-pin male connector labeled "38 - MIC IN TEL")
(Arrows, Figure 32).

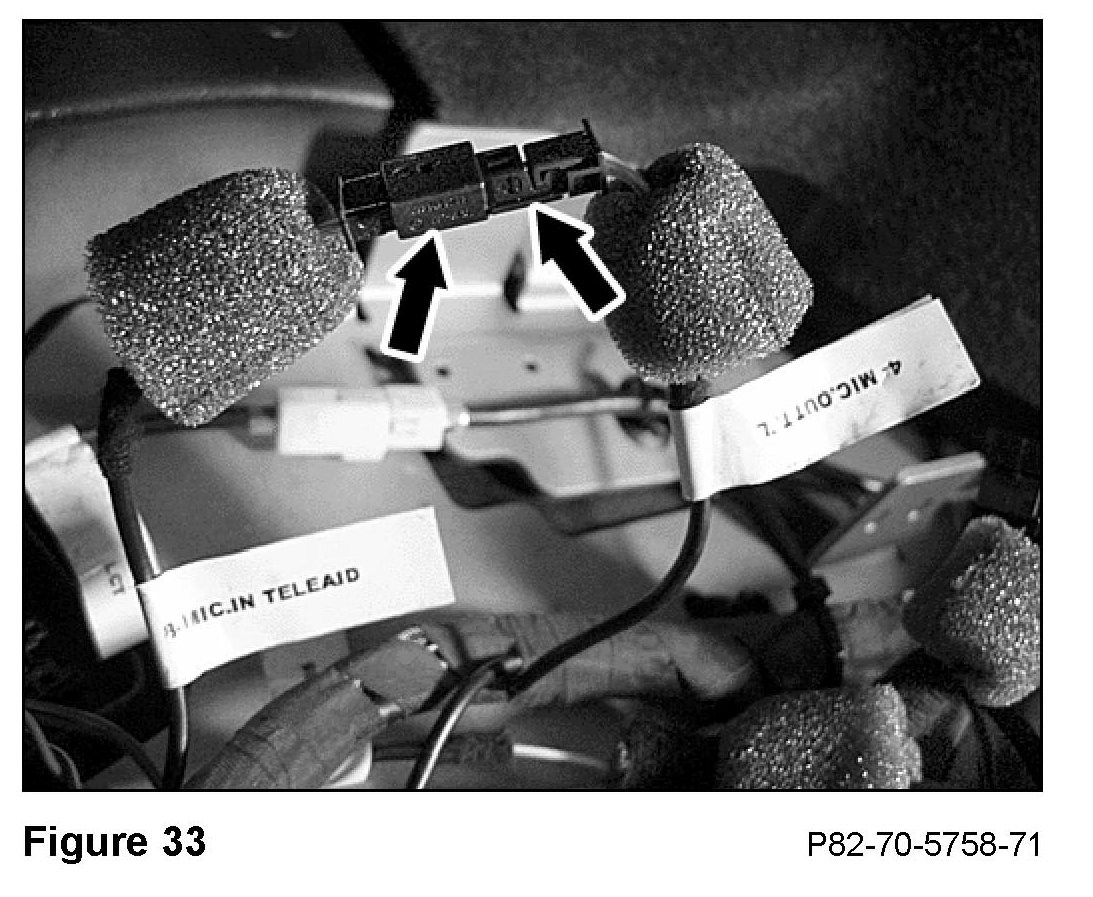

3. Connect the 2-pin female connector labeled "4 - MIC.OUT TEL" to the 2-pin male connector labeled "8 - MIC.IN TELEAID") (Arrows, Figure 33).
