D. Locating the Cable Connectors With Sound System

D. Locating the cable connectors-with sound system

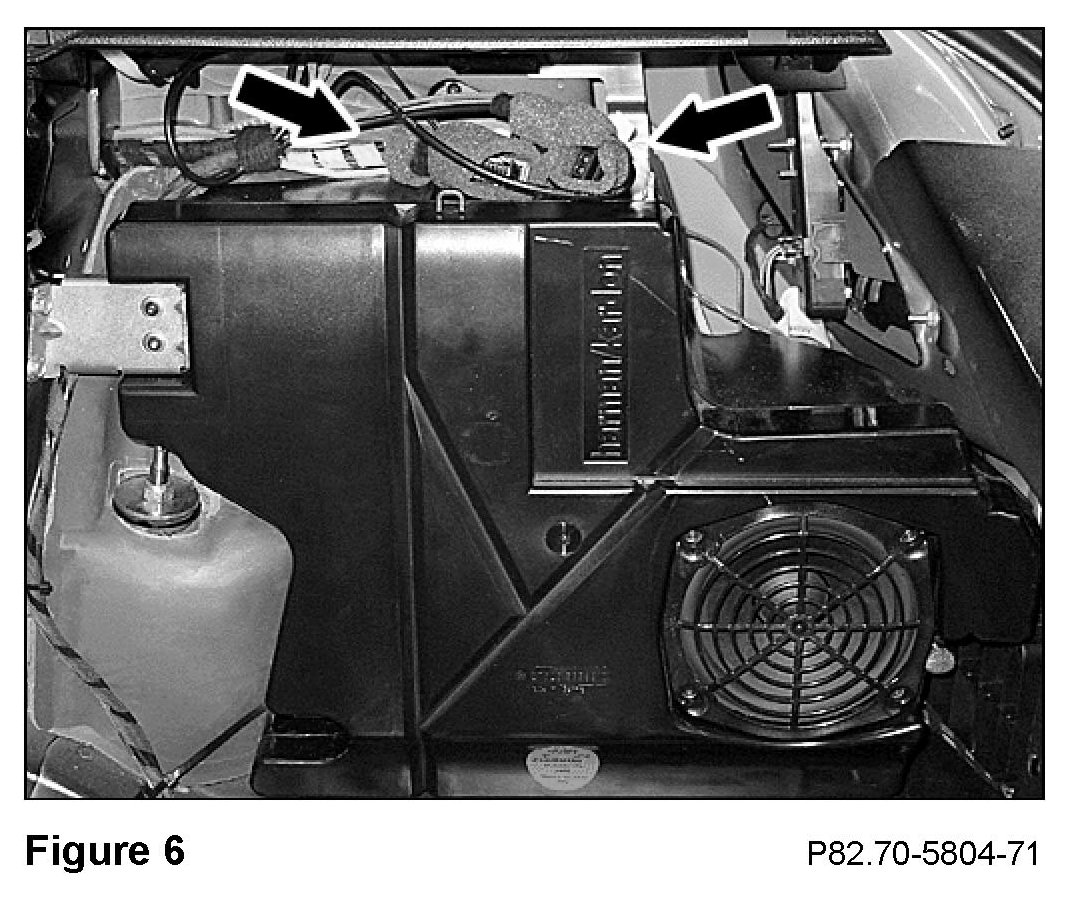

1. In the exposed right side of the cargo compartment, find the foam-sleeve-covered cable connectors atop the harmon/kardon(R) sub-woofer assembly (Figure 6).

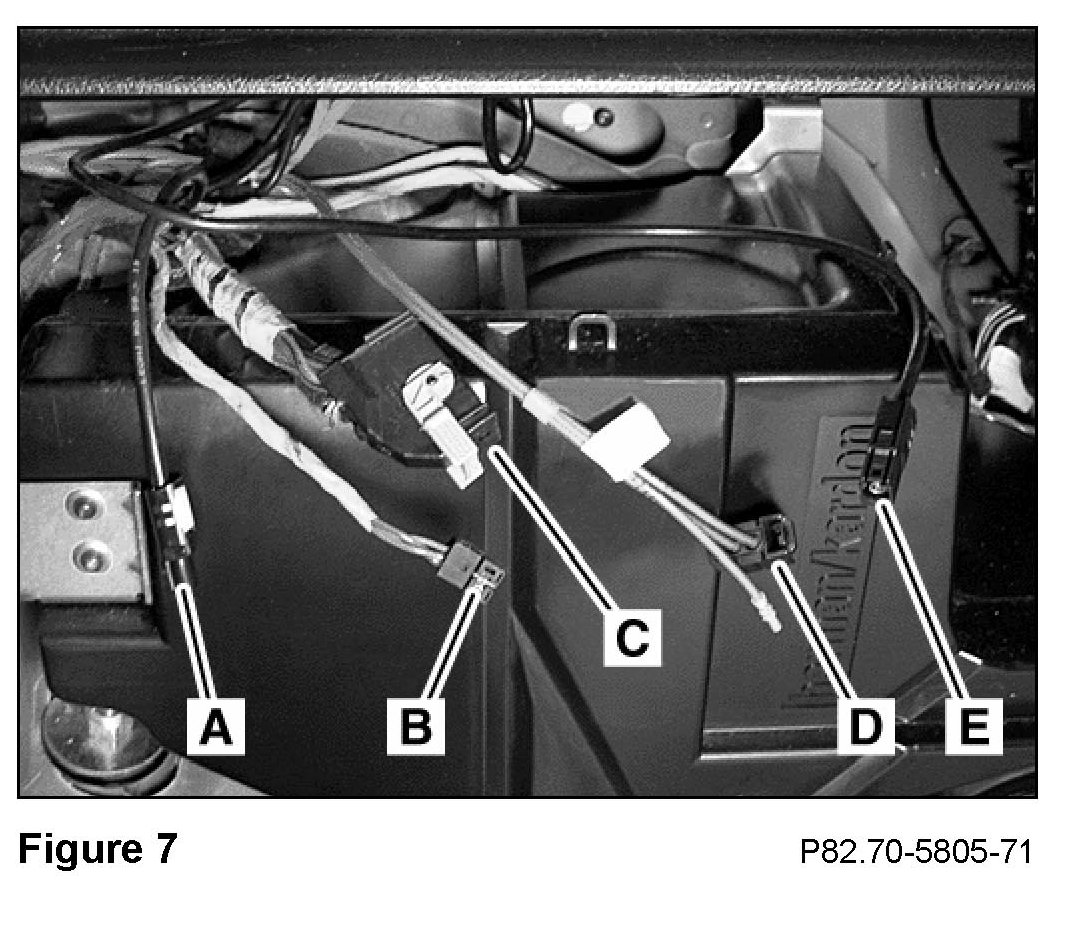

2. Fold back the foam sleeves to expose the connectors and identify the:





^ Male FAKRA antenna lead (A, Figure 7)

^ Linear compensator power supply connector (B, Figure 7)

^ UHI power supply connector (C, Figure 7)

^ UHI MOST connector (D, Figure 7)

^ Female FAKRA antenna lead (E, Figure 7)
