C. Locating the Cable Connectors Without Sound System

C. Locating the cable connectors-without sound system

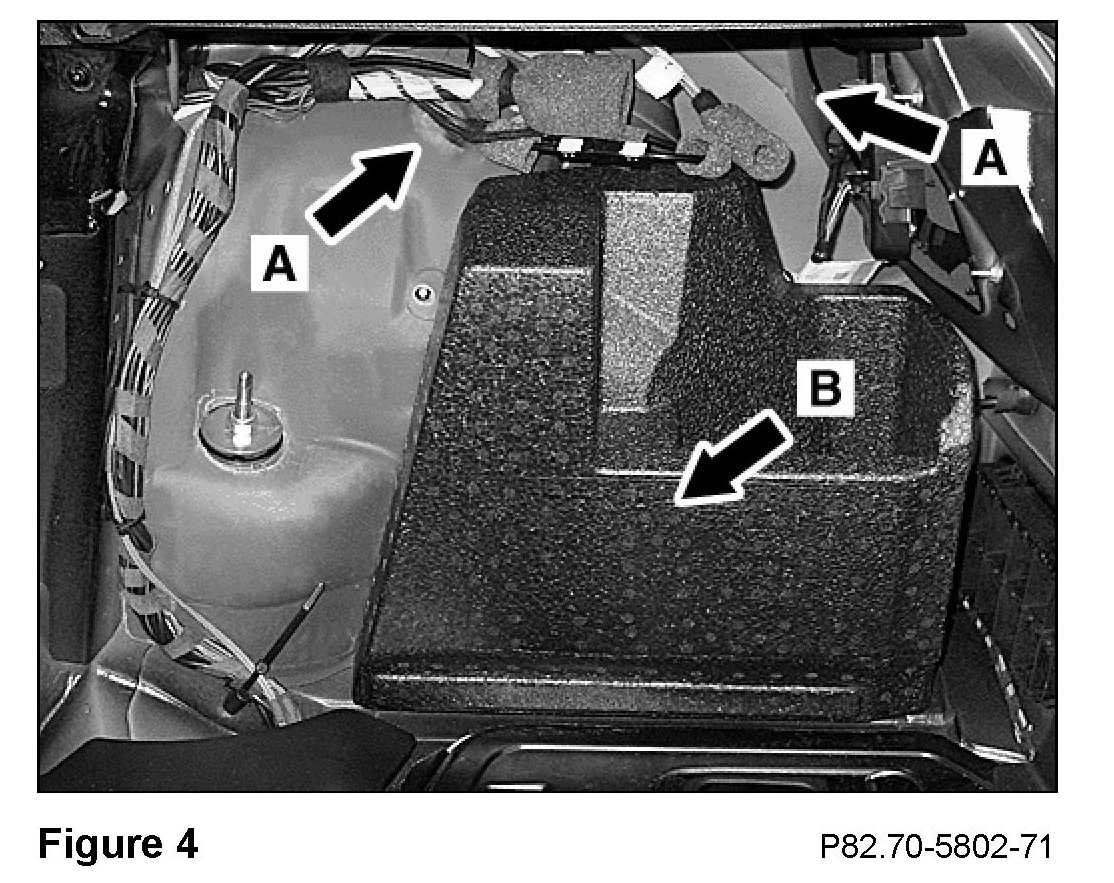

1. In the exposed right side of the cargo compartment, find the foam-sleeve-covered cable connectors (A, Figure 4) atop the Styrofoam(R) panel.

2. Remove the Styrofoam(R) panel and set it aside (B, Figure 4).

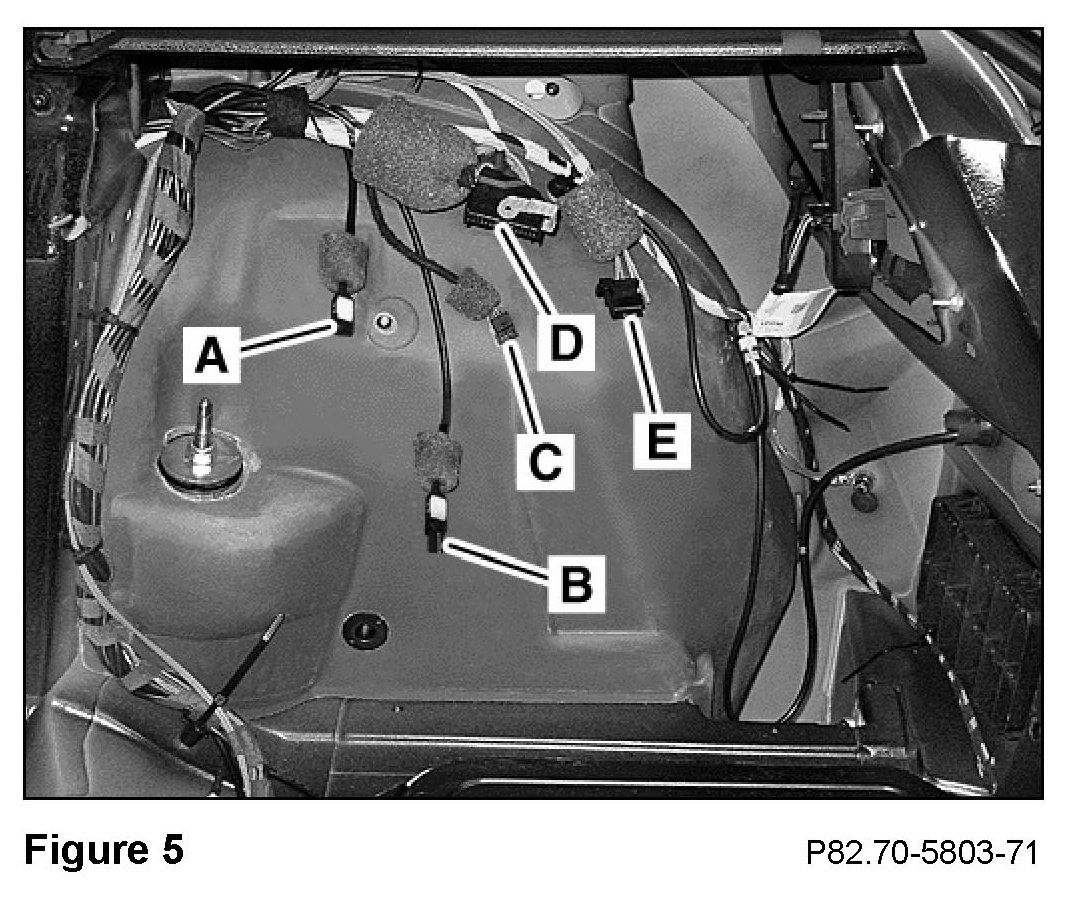

3. Fold back the foam sleeves to expose the connectors and identify the:





^ Female FAKRA antenna lead (A, Figure 5)

^ Male FAKRA antenna lead (B, Figure 5)

^ Linear compensator power supply connector (C, Figure 5)

^ UHI power supply connector (D, Figure 5)

^ UHI MOST connector (E, Figure 5)
